Pallet Cart - 1260 x 840 mm
Pallet Cart - 1260 x 840 mm
Pallet Cart - 1260 x 840 mm
Pallet Cart - 1260 x 840 mm
Q-100-0709

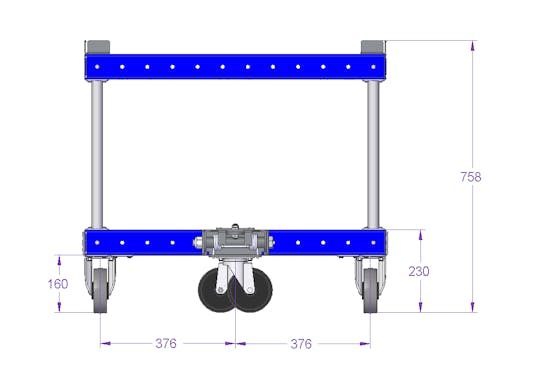

Pallet Cart - 1260 x 840 mm

Pallet cart with attached top structure for better ergonomics.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 33 inch

Length: 50 inch

Load capacity: 441 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

More info

Tugger cart designed for transportation of pallets. The cart is equipped with quick release tow bar and a sub-frame for better ergonomics aswell as six casters, two fixed and four swivel for excellent tracking properties aswell as silent transportation.

Parts included
Outer Tube (No Plate) - 560 mm 4 Q-000-0112
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Flexplate™ 30,5 mm hole 8 Q-002-1320
Swivel Caster - 125 mm 2 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 5 Q-005-0265
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Spring tow bar 1 Q-005-0450
Corner pallet guide - 70 x 70 mm 4 Q-005-0463
Spring Threaded Tube Connectors 8 Q-005-0469
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 x 80 mm Countersunk 1 Q-006-0019
Hex Head - M10 x 25 mm 3 Q-006-1041
Locking Nut M10 12 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Countersunk towing lock pin - 63 mm 1 Q-017-0034
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Tow bar lip - 400 mm 1 Q-017-0049
