Pallet Cart - 1260 x 2380 mm
Pallet Cart - 1260 x 2380 mm
Pallet Cart - 1260 x 2380 mm
Pallet Cart - 1260 x 2380 mm
Q-100-1721

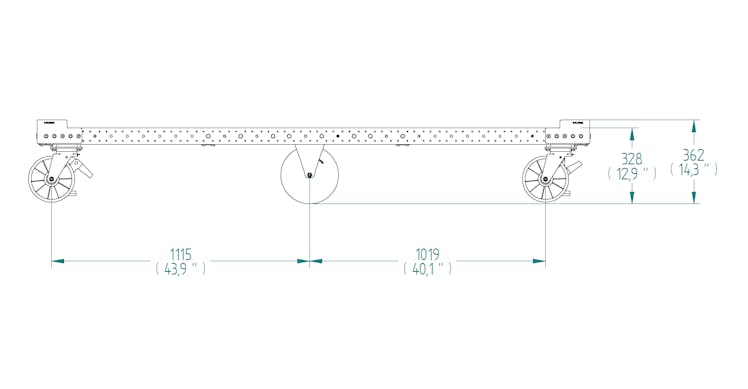

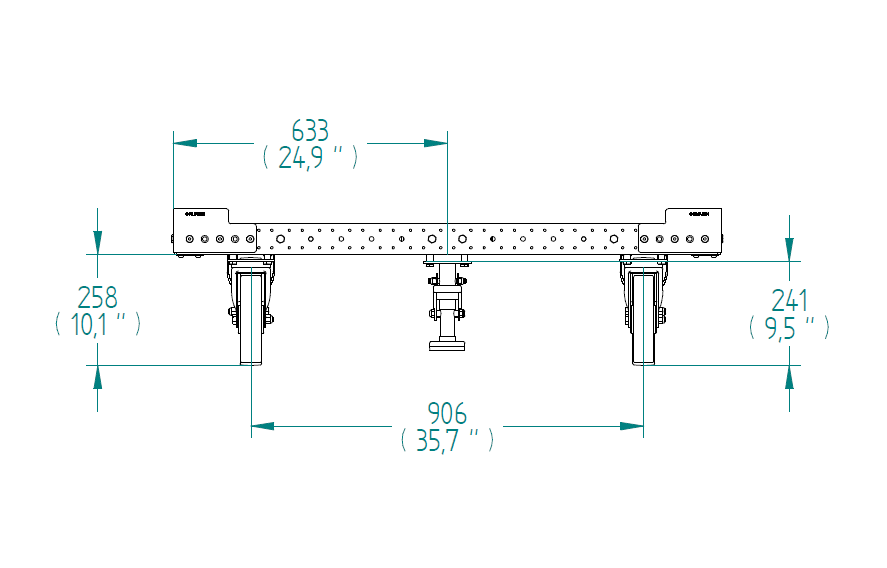

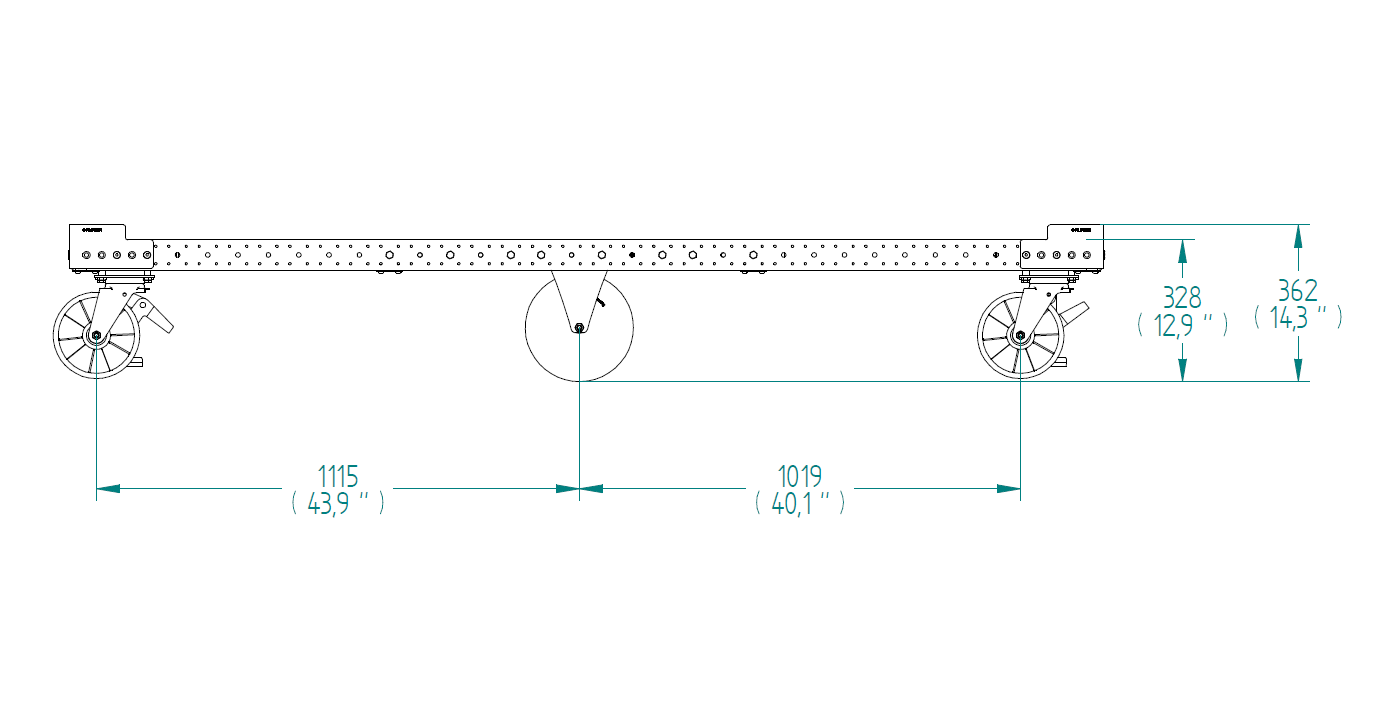

Pallet Cart - 1260 x 2380 mm

Flatbed pallet cart equipped with floor brakes and six nylon casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 94 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch, 10 inch

Caster Type: Nylon

Type of Load: Pallets and Containers

More info

This flatbed pallet cart is great for the transportation of larger pallets and containers or several smaller ones. The cart is equipped with two-floor brakes on each end of the cart, as well as six high quality nylon casters which give the cart a smooth movement and require less push-pull force to move.

Parts included
FlexPlate™ 8 Q-002-1001
Fixed Polyamide Caster - 250 mm 2 Q-004-1290
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Floor Brake LTL - 200 mm 2 Q-004-1359
Wheel Attachment Box 8 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Triangle Corner Plate 4 Q-005-1145
Caster Distance Collet - 18 mm 16 Q-005-1396
64 mm FlexBeam™ Collet 16 Q-005-1426
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 100 Q-006-1042
Hex Head - M10 x 90 mm 16 Q-006-1132
Hex Head - M10 x 40 16 Q-006-1208
Hex Head Fully Threaded - M10 x 50 mm 8 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
FlexBeam™ - 2310 mm 4 Q-020-2310
