Pallet Cart - 1260 x 1260
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Q-100-0566

Pallet Cart - 1260 x 1260

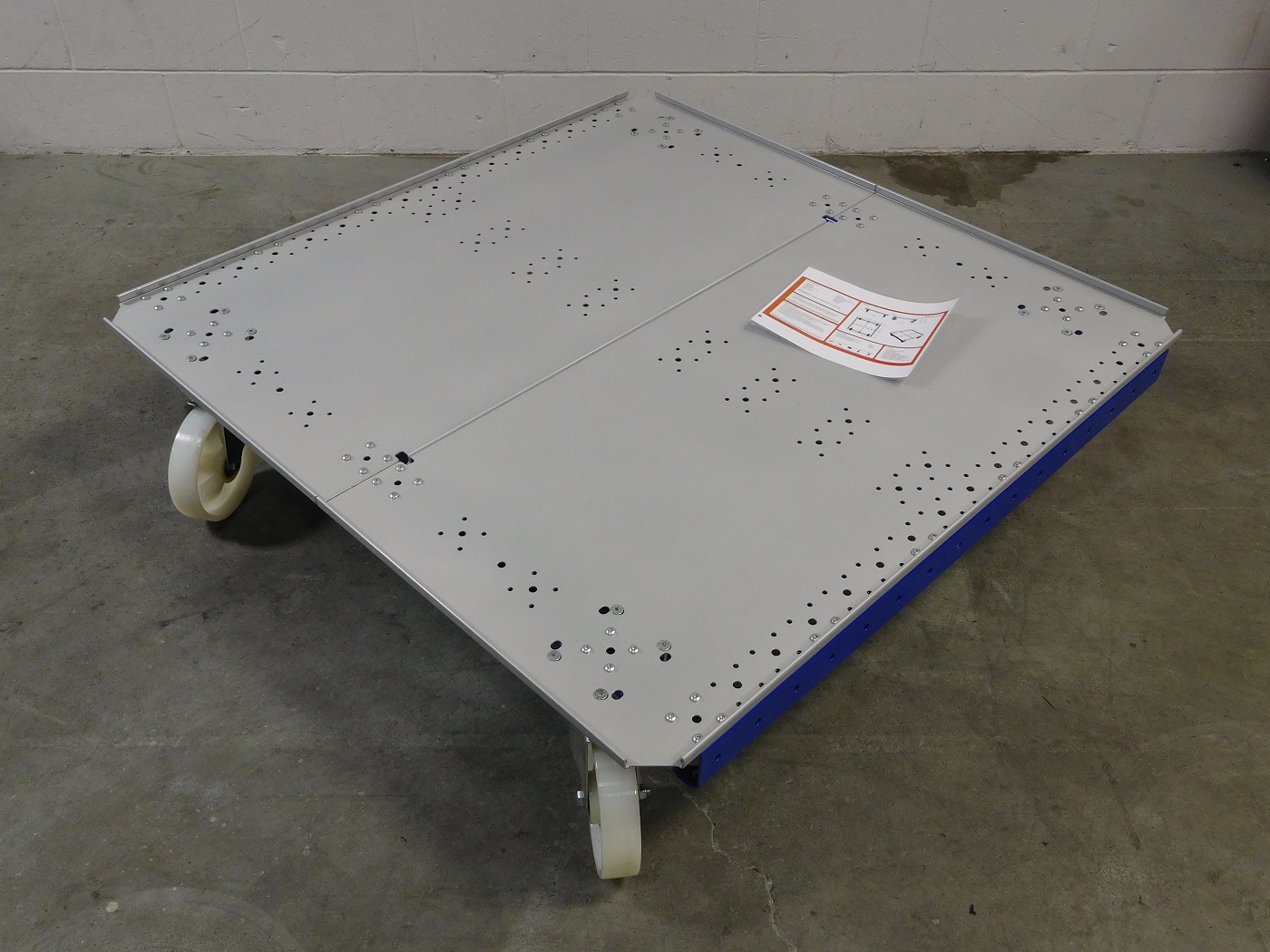

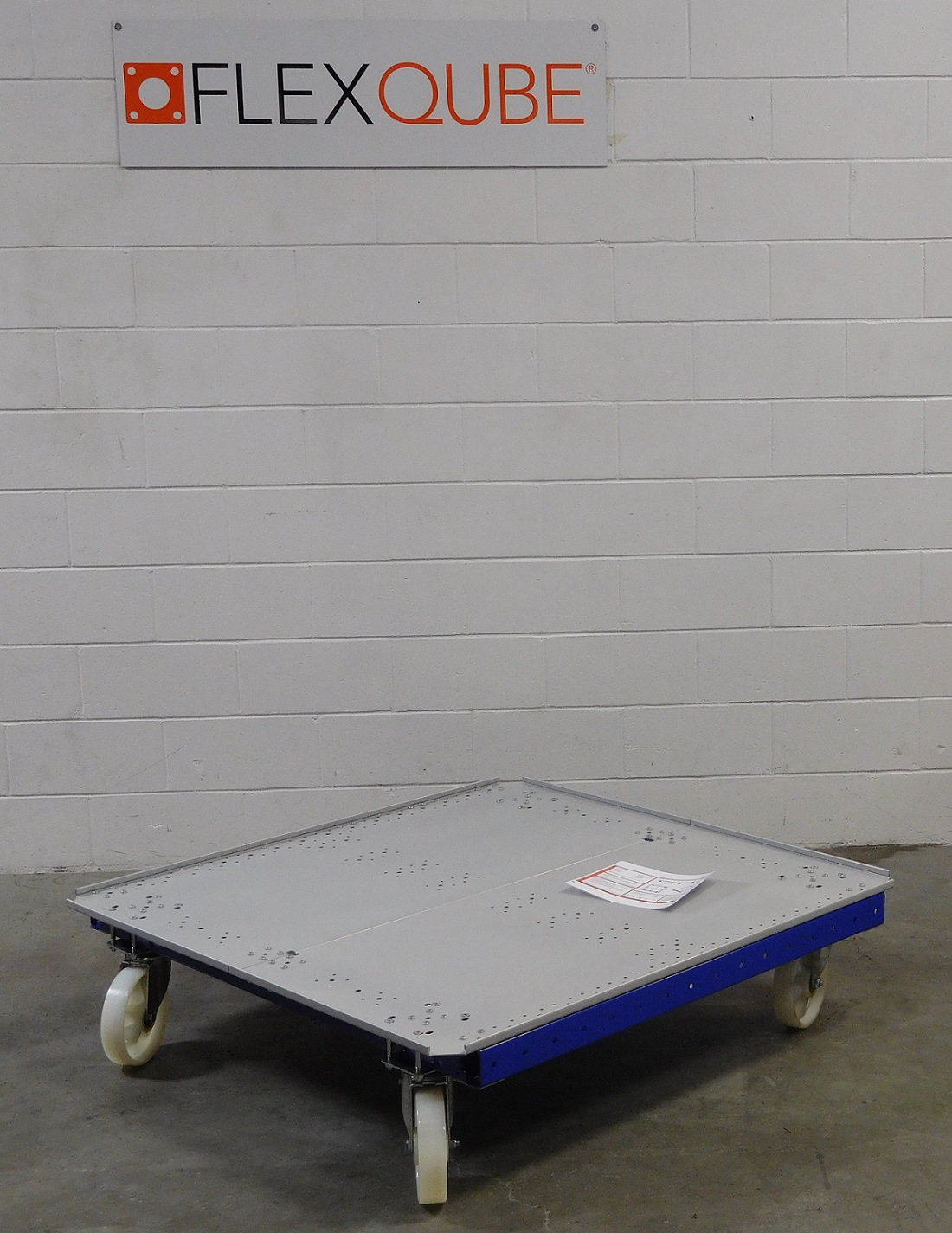

Standard pallet cart with attached steel flat deck.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 50 inch

Load capacity: 2000 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This pallet cart was designed for transporting pallets and containers. It is compatible with the E-Frame from STILL Liftrunner tugger train system. It has four high quality polyamide casters, two of which have brakes.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 980 mm FE 2 Q-001-1403
FlexPlate™ 10 Q-002-1001
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
64 mm FlexBeam™ Collet 4 Q-005-1426
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 28 Q-006-1042
Hex Head - M10 x 90 mm 8 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
Top Plate With Edge Lip - 1260 x 630 mm 2 Q-016-0267
Tugger Train Opener - 38 mm 2 Q-019-1002
