Pallet Cart - 1260 x 1050 mm
Pallet Cart - 1260 x 1050 mm
Pallet Cart - 1260 x 1050 mm
Pallet Cart - 1260 x 1050 mm
Q-100-0647

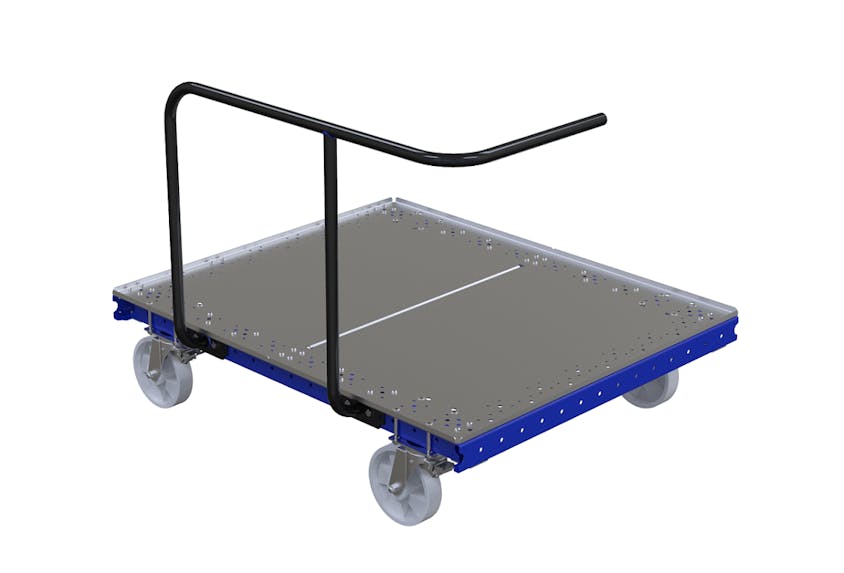

Pallet Cart - 1260 x 1050 mm

Standard pallet cart designed for transporting pallets and containers.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 50 inch

Load capacity: 1323 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

Robust pallet cart designed for carrying heavy pallets and containers. It is equipped with a flat steel deck for increase robustness. It is also equipped with an ergonimc handlebar for better manual transportation.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1050 mm 2 Q-001-1302
FlexPlate™ 4 Q-002-1001
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
64 mm FlexBeam™ Collet 6 Q-005-1426
Locking Nut M10 26 Q-006-1042
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 20 mm 4 Q-006-1232
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
Two-Sided Handle 1190 FlexBeam™ 1 Q-015-1025
Flat Shelf w. Edge Lip - 10620 x 630 mm 2 Q-016-0297
Tugger Train Opener - 38 mm 1 Q-019-1002
