Kit cart for tanks - 770 x 840 mm
Kit cart for tanks - 770 x 840 mm
Kit cart for tanks - 770 x 840 mm
Q-100-0375

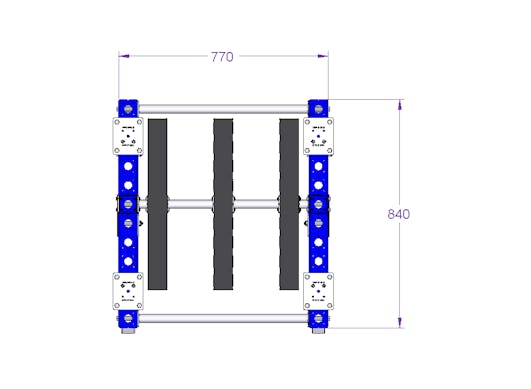

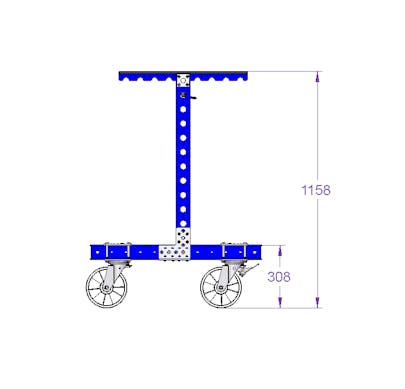

Kit cart for tanks - 770 x 840 mm

Kit cart designed to transport small tanks. The FlexBeams on top are adjustable allowing you to hang several different sizes.

Technical specifications

Transportation method: Manual

Industry: Automotive, Commercial Vehicles, Defense Equipment, Tier One Suppliers

Category: Kitting Carts

Length: 33 inch

Width: 30 inch

Load capacity: 165 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

This cart was designed to transport small tanks in various sizes. The tanks rests between the horizontal FlexBeams which have been covered with EPDM foam to prevent the parts from being damaged. The FlexBeams are also adjustable sideways which allows you to transport several different sizes. The cart is also equipped with four nylon swivel casters, two with brakes making it easy to maneuver in tight areas.

Parts included
FlexTube™ 630 mm 3 Q-000-1312
FlexQube 3 Q-001-1078
FlexBeam™ 840 mm FE 8 Q-001-1405
FlexBeam™ 630 mm FE 3 Q-001-1408
FlexPlate™ 2 Q-002-1001
FlexPlate™ half 12 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
M6 Locking Handle 3 Q-005-1266
RTE Plug 4 Q-005-1289
64 mm FlexBeam™ Collet 6 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Locking Nut M10 24 Q-006-1042
Hex Head - M10 x 90 mm 20 Q-006-1132
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 92 Q-006-1384
L Bracket Joint 2 Q-005-0031
