Kit Cart - 840 x 2030 mm
Kit Cart - 840 x 2030 mm
Kit Cart - 840 x 2030 mm
Kit Cart - 840 x 2030 mm
Kit Cart - 840 x 2030 mm
Q-100-0544

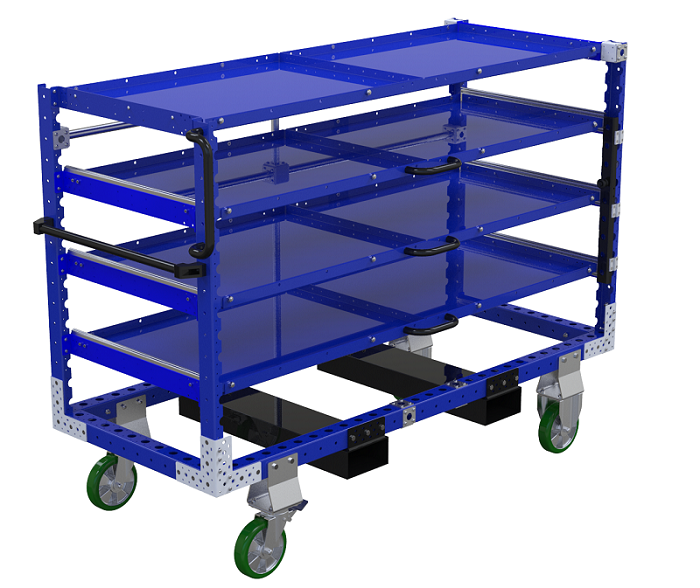

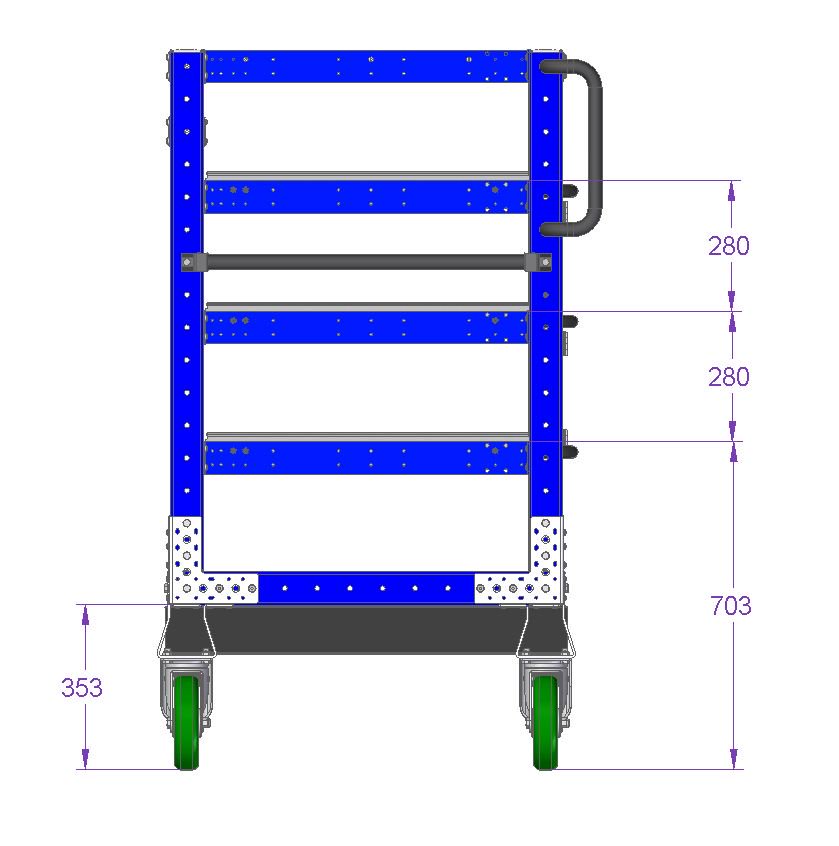

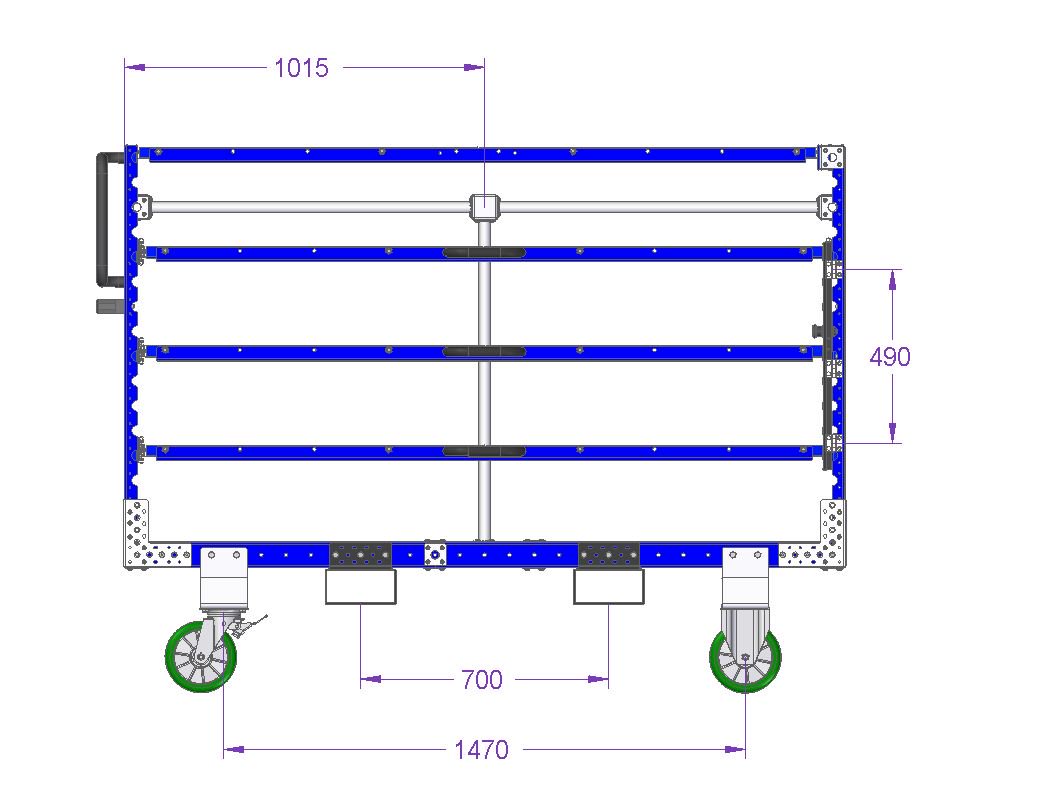

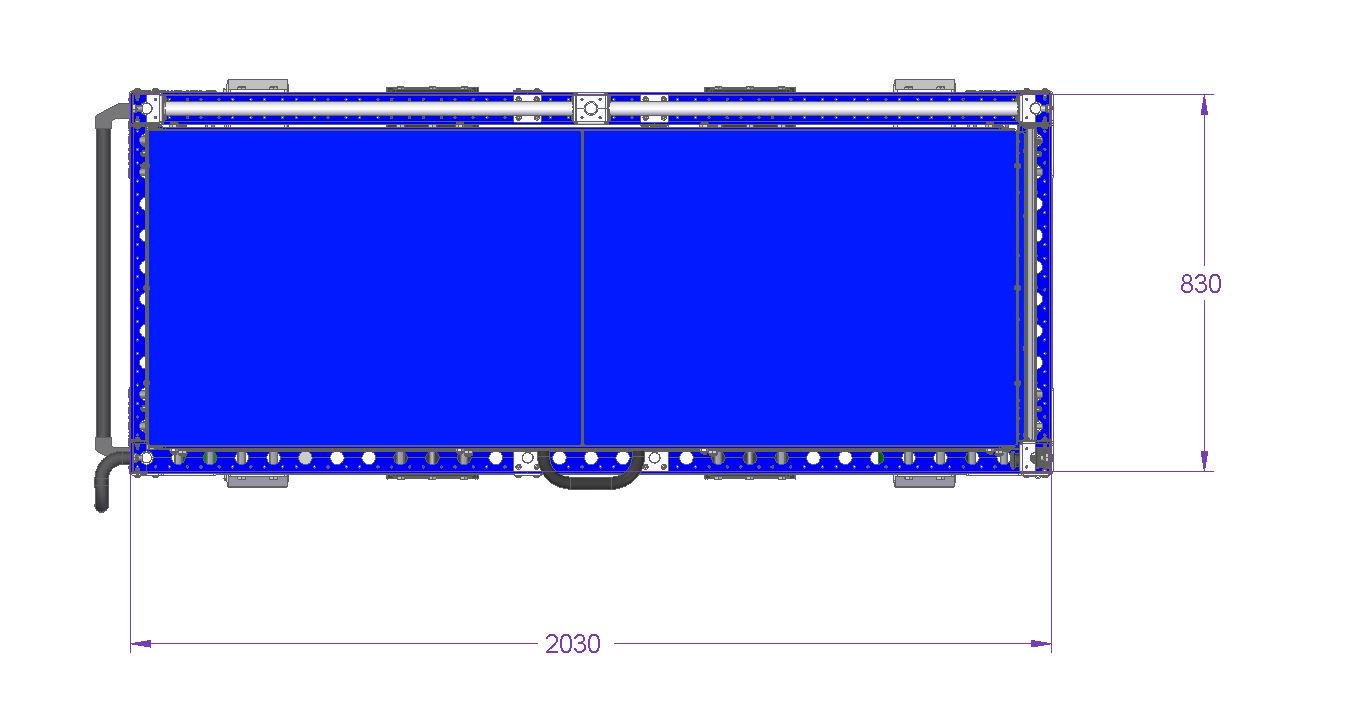

Kit Cart - 840 x 2030 mm

Four level extendable shelf cart designed to be transported by AGV, forklift or hand.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 80 inch

Levels: 4

Load capacity: 882 lbs

Load Capacity per Level: 220 lbs

Caster size: 8 inch

Width: 33 inch

Caster Type: Polyurethane

More info

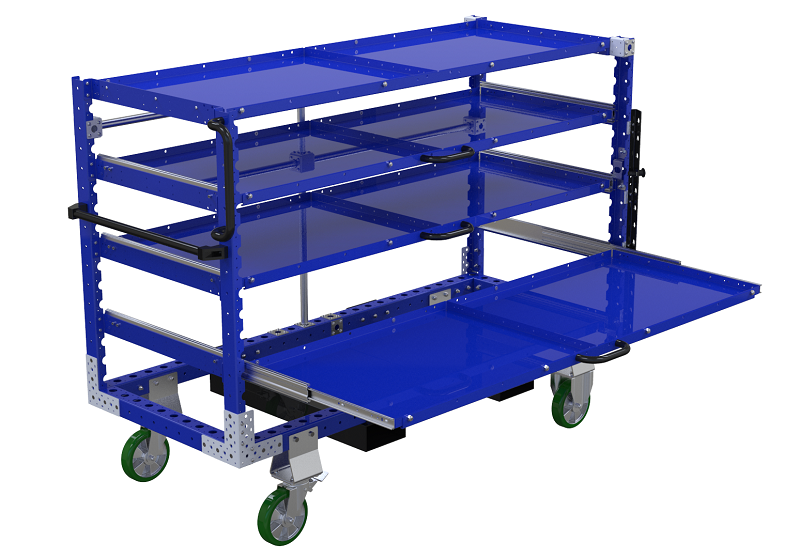

Four level extendable shelf cart designed to be transported by AGV and fork truck. The cart is also equipped with a handlebar to allow for manual transportation as well as four high quality polyurethane casters.

Parts included
Outer Tube (No Plate) - 694 mm 1 Q-000-0010
FlexTube™ 910 mm 3 Q-000-1269
FlexQube 6 Q-001-1078
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 26 Q-002-1001
Polyurethan 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
Wheel distance - 350 mm 4 Q-004-1281
Door Plunger Locking Plate 1 Q-005-0370
Shelf Locking Plate - 640 mm 1 Q-005-0571
Fork Tunnel EU - 840 mm 2 Q-005-0941
Handle for 30 mm Tube 2 Q-005-1240
Ergonomic Handle Black 1 Q-005-1248
Telescopic Plate - 699 mm 8 Q-005-1317
Angled Plate - 1848 mm 8 Q-005-1318
Telescopic Shelf Plate - 959 x 700 mm 8 Q-005-1319
Hinge GN237_50x50 6 Q-005-1320
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 30 Q-005-1426
Telescopic List 700 mm 6 Q-005-1517
M5 Nut Extra Low 30 Q-006-0007
M5 x 16 Allen Round Head 18 Q-006-0037
M5 Locking Nut 18 Q-006-1021
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 100 Q-006-1042
Countersunk - M6 x 20 mm 6 Q-006-1049
Locking Nut M6 6 Q-006-1050
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 2 Q-006-1120
Hex Head - M10 x 90 mm 12 Q-006-1132
M8 Washer 2 Q-006-1183
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Round Head - M5 x 8 mm 30 Q-006-1382
Self Tapping Screw M6 Torx H60 x 16 180 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 6 Q-006-1385
Low Allen Head - M10 x 16 mm 32 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 14 Q-006-1410
Handle Bar 210 mm M8 3 Q-015-1037
