Kit Cart - 630 x 630 mm
Kit Cart - 630 x 630 mm
Kit Cart - 630 x 630 mm
Kit Cart - 630 x 630 mm
Q-100-1152

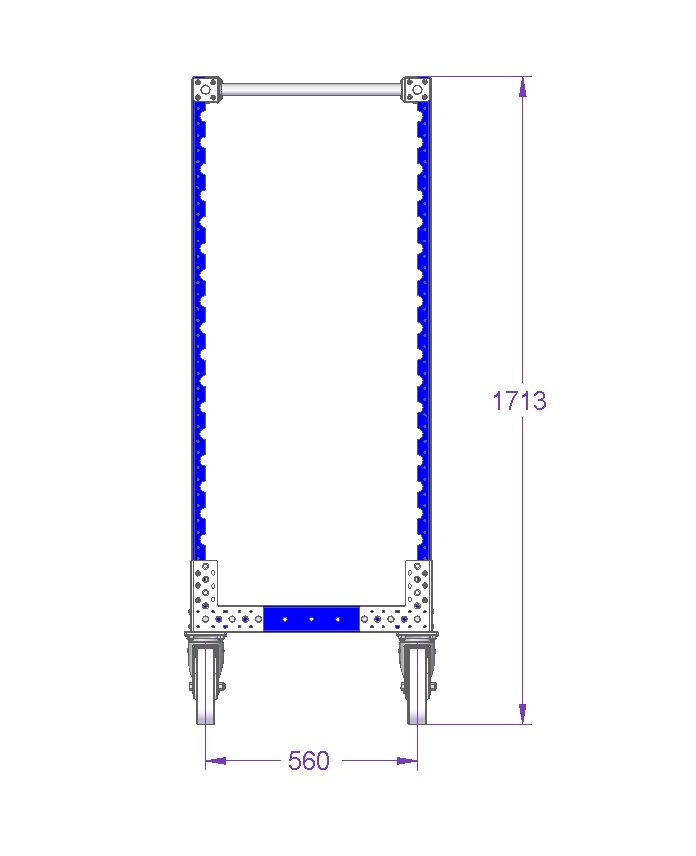

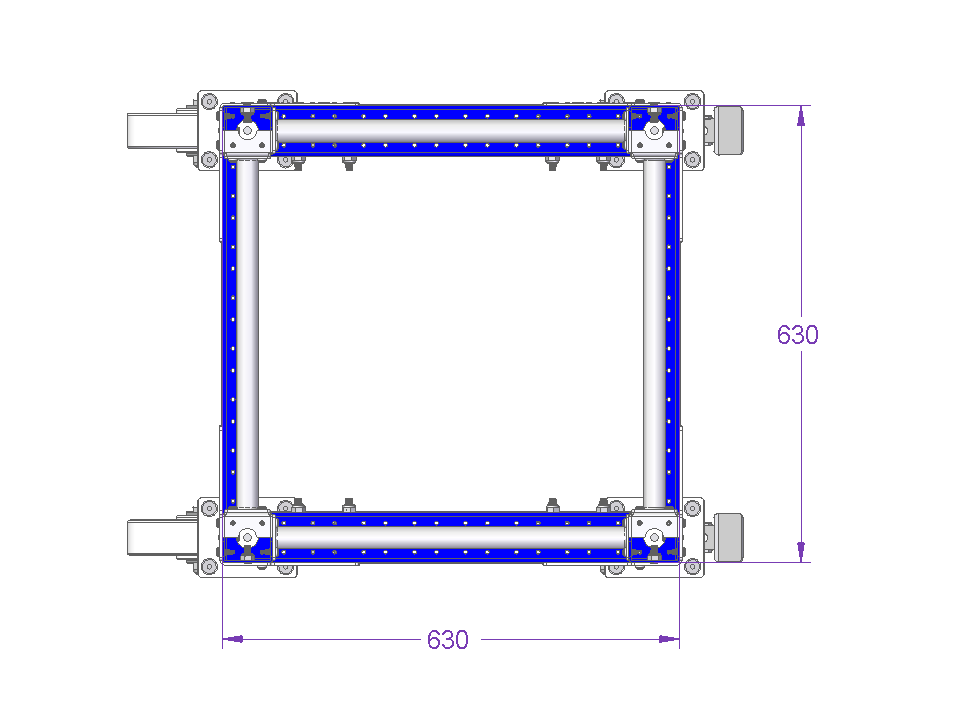

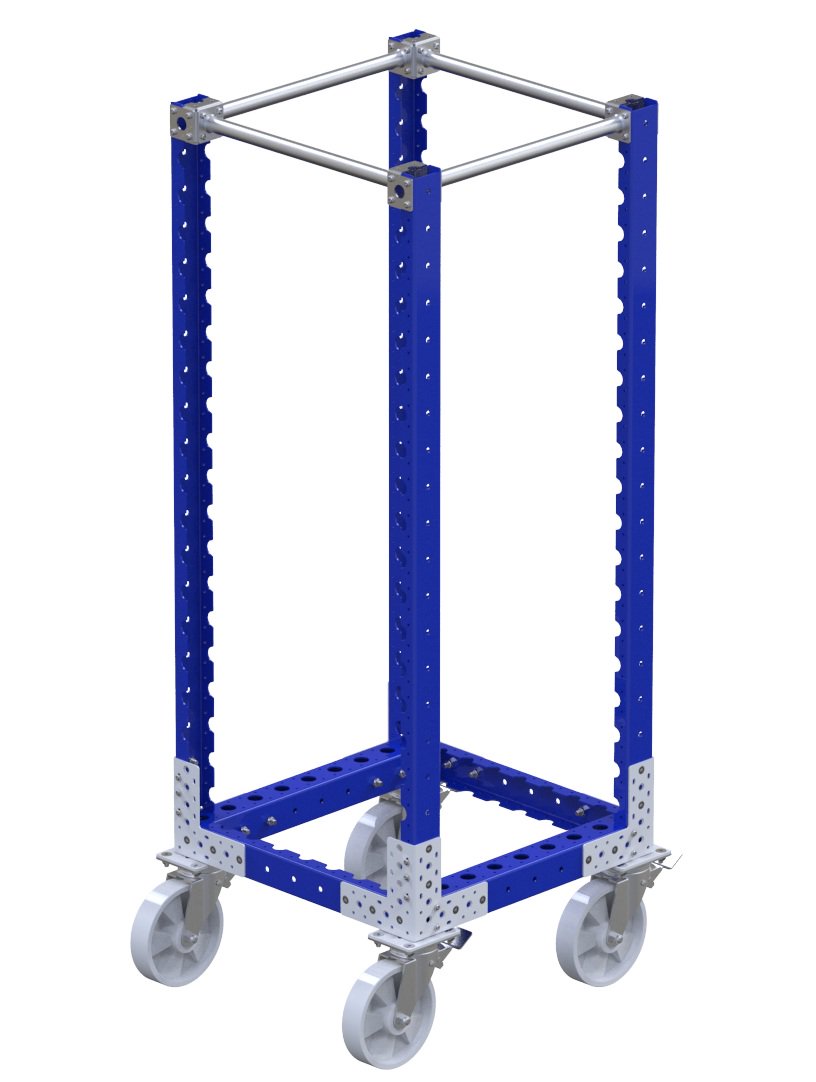

Kit Cart - 630 x 630 mm

Hanging cart equipped with four swivel nylon casters, two with brakes.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Caster size: 8 inch

More info

This cart was designed to have material hang from the tubes on top. The cart can be pushed by the frame and is equipped with four swivel nylon casters, two with brakes.

Parts included
FlexTube™ 490 mm 4 Q-000-1247
FlexQube 4 Q-001-1078
FlexBeam™ 560 mm 4 Q-001-1309
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ - 1400 mm FE 4 Q-001-1502
FlexPlate™ 4 Q-002-1001
Polyamide Caster 200 mm with Brake 4 Q-004-1351
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Locking Nut M10 44 Q-006-1042
Countersunk 16 Q-006-1082
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 68 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
