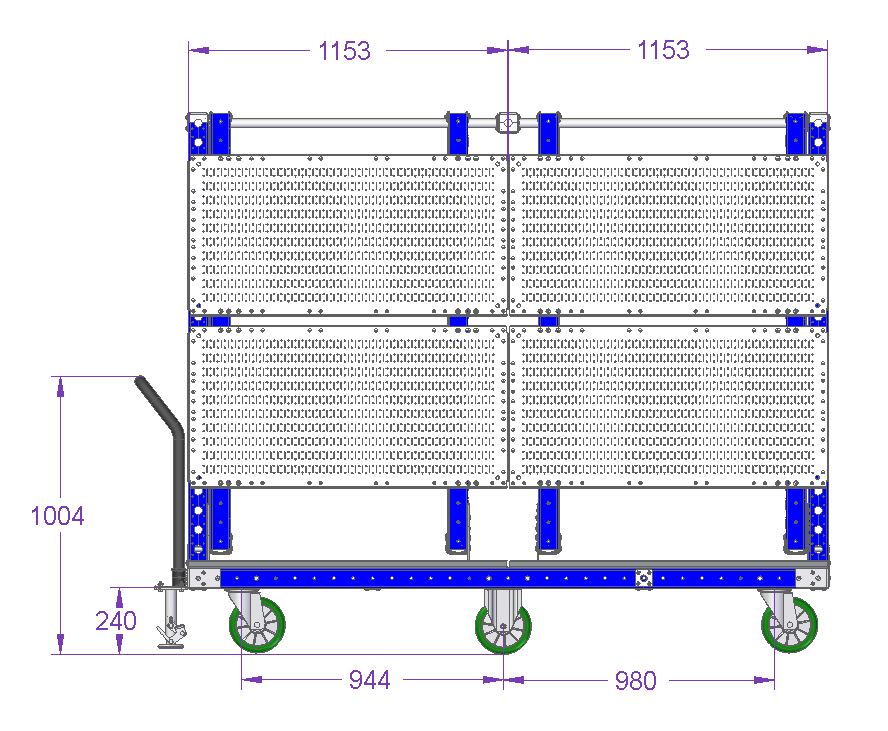

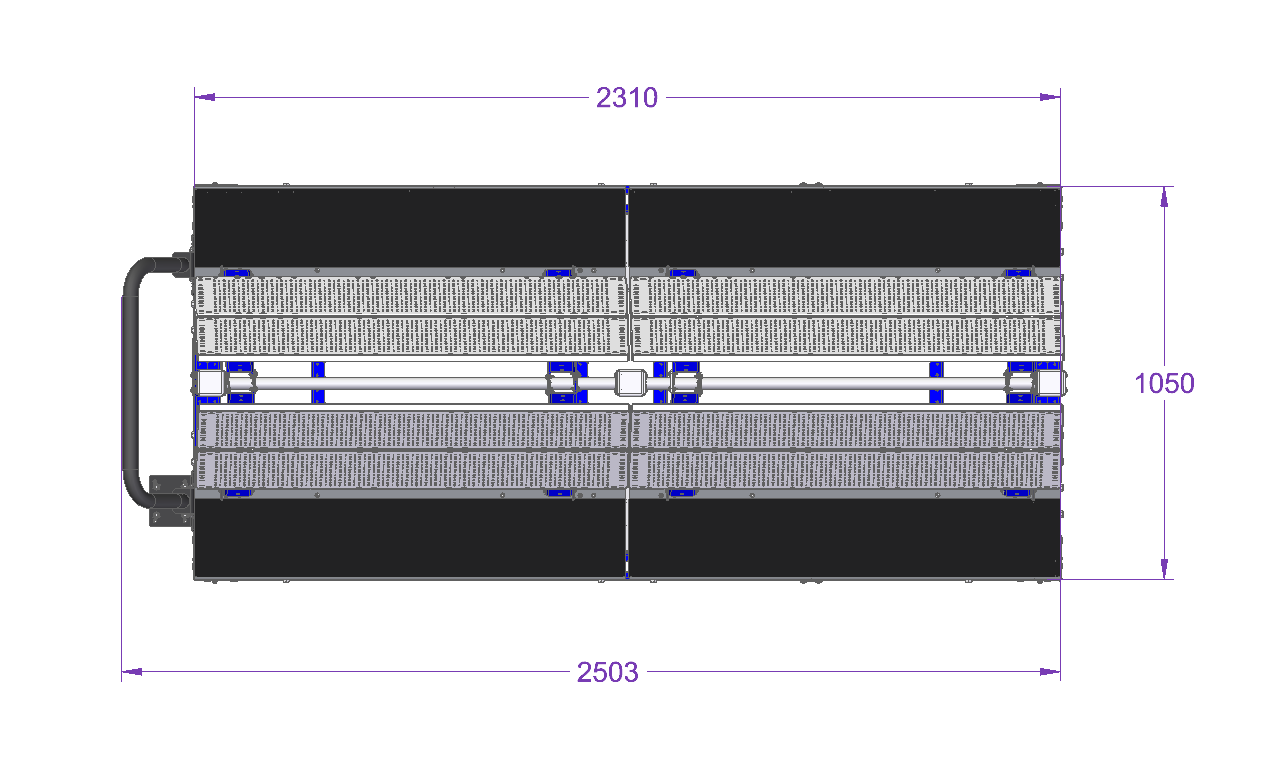

Kit Cart - 2310 x 1050 mm
Kit Cart - 2310 x 1050 mm
Kit Cart - 2310 x 1050 mm
Kit Cart - 2310 x 1050 mm
Q-100-0812

Kit Cart - 2310 x 1050 mm

Custom kit cart designed for transporting windshields.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 91 inch

Width: 41 inch

Load capacity: 992 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Misc parts

More info

This kit cart was originally designed for improving the transportation of windshields within a facility. It can also be used for any materials that need to be stood upright such as wall panels. It is equipped with an ergonomic handlebar for easier pushing by the operator.

Parts included
FlexTube™ 1050 mm 2 Q-000-1053
FlexQube 12 Q-001-1078
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 6 Q-001-1404
FlexBeam™ - 1610 mm FE 8 Q-001-1505
FlexPlate™ 26 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 30 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
Angle support plate 8 Q-005-0294
Rubber Carpet - 210 x 1050 mm 4 Q-005-0308
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 10 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 126 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 20 mm 40 Q-006-1232
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 212 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 84 Q-006-1385
Low Allen Head - M10 x 16 mm 32 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate - 265 x 1150 mm 4 Q-016-0222
Pegboard - 1153 x 590 mm 8 Q-016-0402
