Kit Cart - 1680 x 1050 mm
Kit Cart - 1680 x 1050 mm
Kit Cart - 1680 x 1050 mm
Kit Cart - 1680 x 1050 mm
Kit Cart - 1680 x 1050 mm
Q-100-1185

Kit Cart - 1680 x 1050 mm

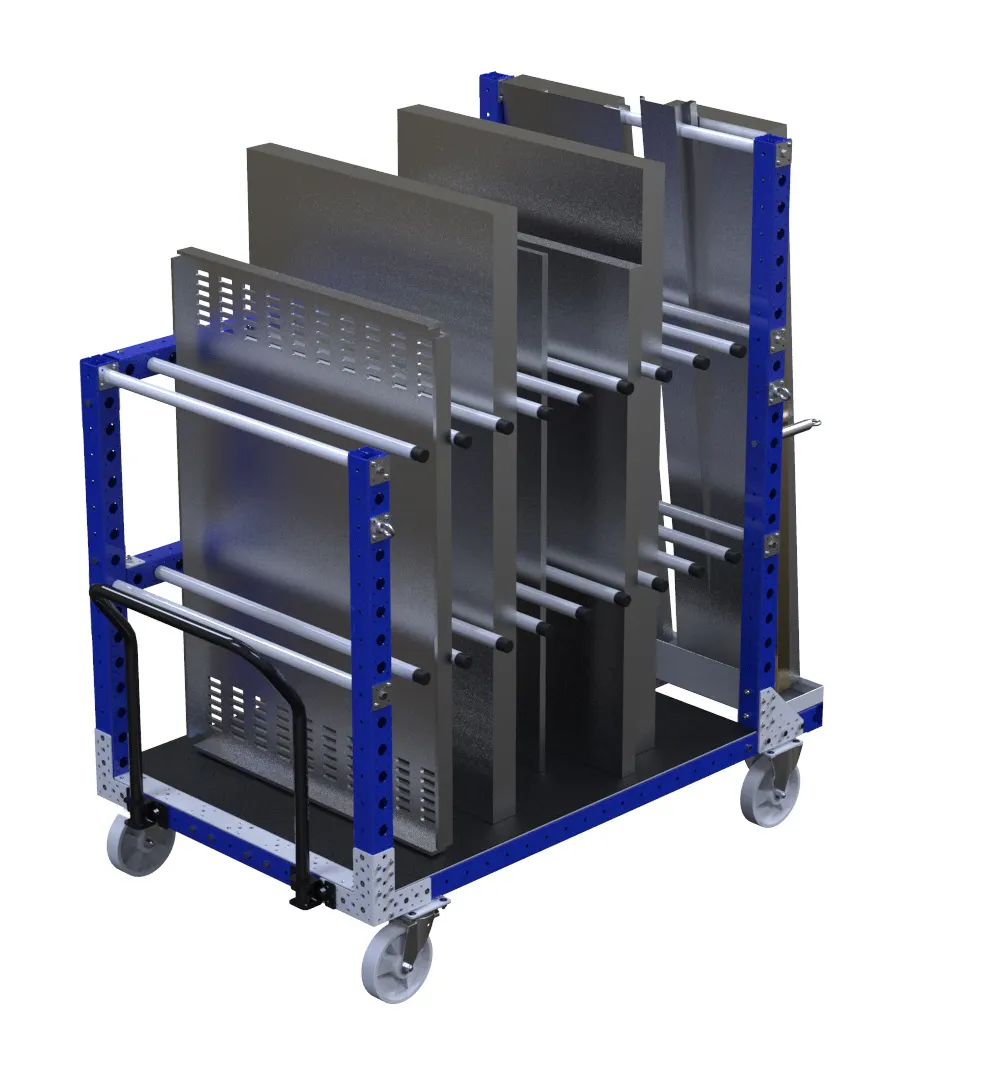

Cart for plates, panels and other long parts. The cart is equipped with a handlebar and four nylon casters as well as rubber/plastic protection to prevent parts from being damaged.

Technical specifications

Category: Kitting Carts

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 66 inch

Load capacity: 772 lbs

Width: 41 inch

Caster size: 8 inch

Caster Type: Nylon

More info

This push cart is perfect for transporting plates, panels and other long parts. The parts are placed on the flat deck which is covered by a rubber carpet to protect the parts from being damaged. The storage area is divided into nine slots of equal size and comes equipped with a handlebar and four nylon casters, two fixed and two swivel making it easy to move manually.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ - 1330 mm FE 4 Q-001-1501
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexBeam™ - 1610 mm FE 4 Q-001-1505
FlexPlate™ 20 Q-002-1001
Flexplate™ M10 24 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
L Bracket Joint 4 Q-005-0031
T-Joint 2 Q-005-0065
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 32 Q-005-0469
Triangle Joint 6 Q-005-0483
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Flexible Vinyl Push - On Round Caps 18 Q-005-0728
Rubber carpet - 1330 x 1050 mm 1 Q-005-0810
Rubber carpet - 1040 x 200 mm 1 Q-005-0811
Plastic Tube - 950 mm 18 Q-005-0827
Plastic Tube - 904 mm 5 Q-005-0828
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 22 Q-005-1426
Lifting eyebolts DIN 580-M10-NI 4 Q-006-0041
Fully Threaded - M10 x 120 mm 2 Q-006-1037
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 68 Q-006-1042
Countersunk 16 Q-006-1082
Hex Head - M10 x 90 mm 34 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 22 Q-006-1343
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 192 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 44 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Handlebar Attachment EUR 2 Q-015-0026
Tube for Handlebar EUR 1 Q-015-0033
Top Plate - 1400 x 1050 mm 1 Q-016-0604
Flat shelf - 1050 x 210 mm 1 Q-016-0605
Outer tube (No plate) - 140 mm 2 Q-025-0140
Outer Tube (No Plate) - 1050 mm 23 Q-025-1050
