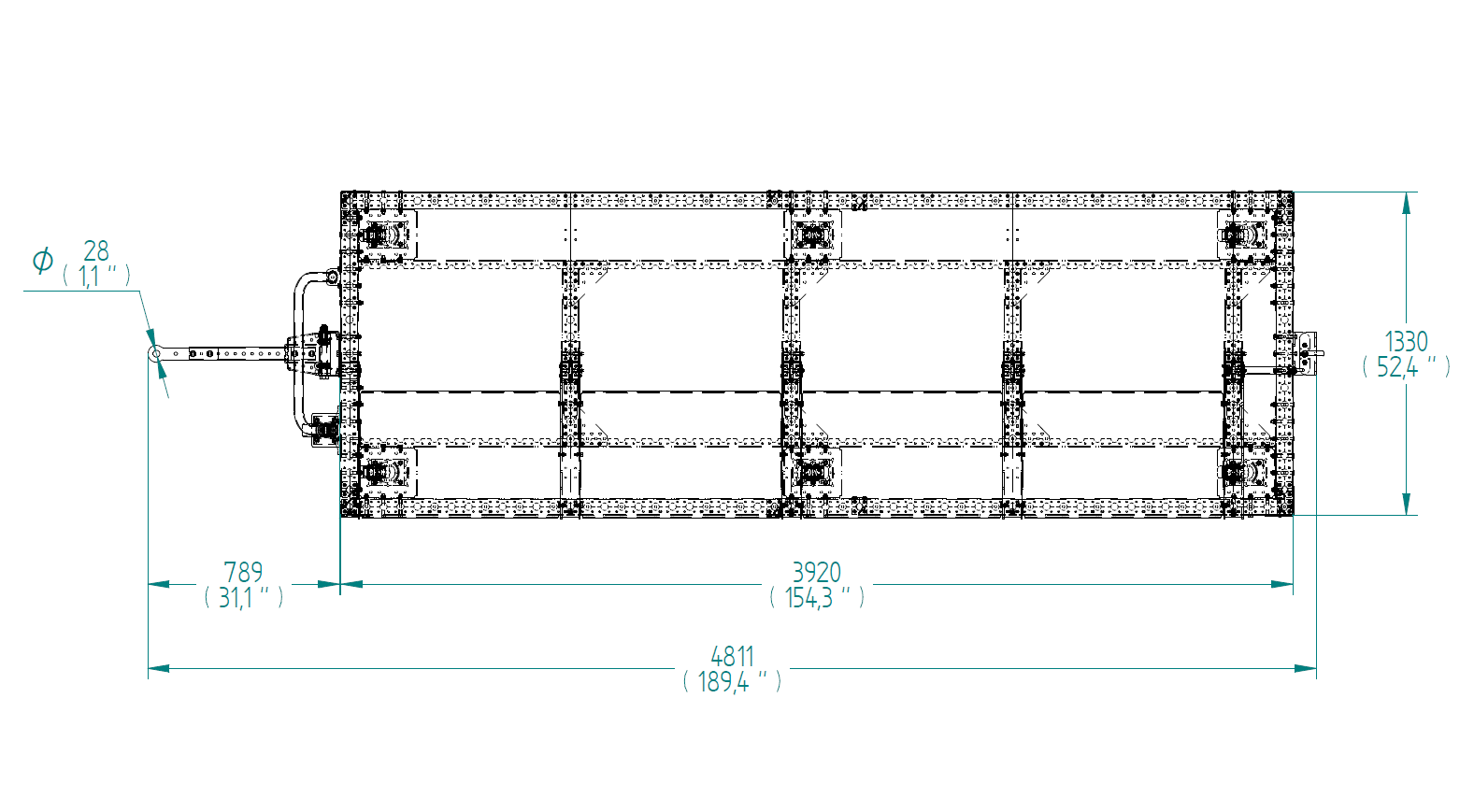

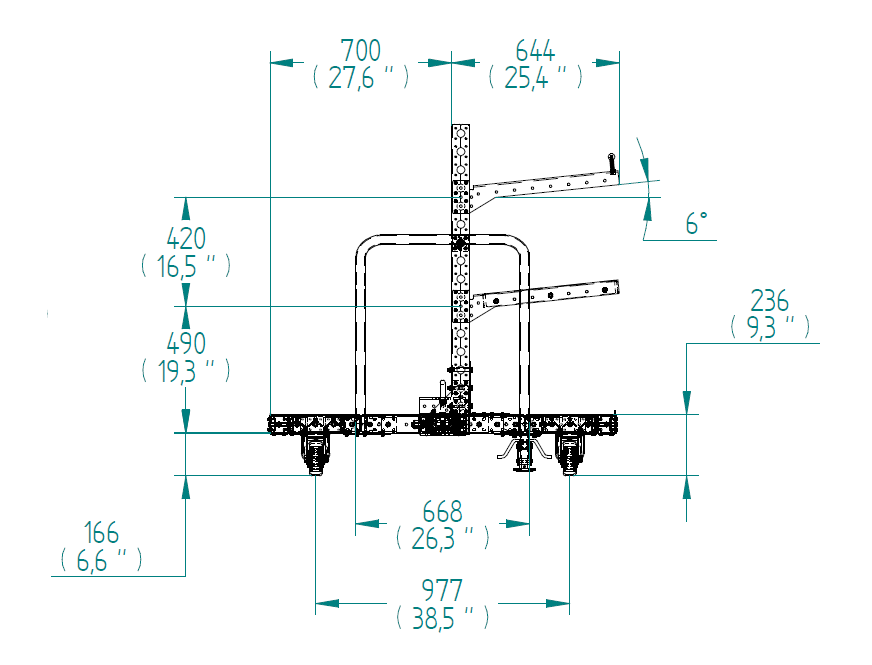

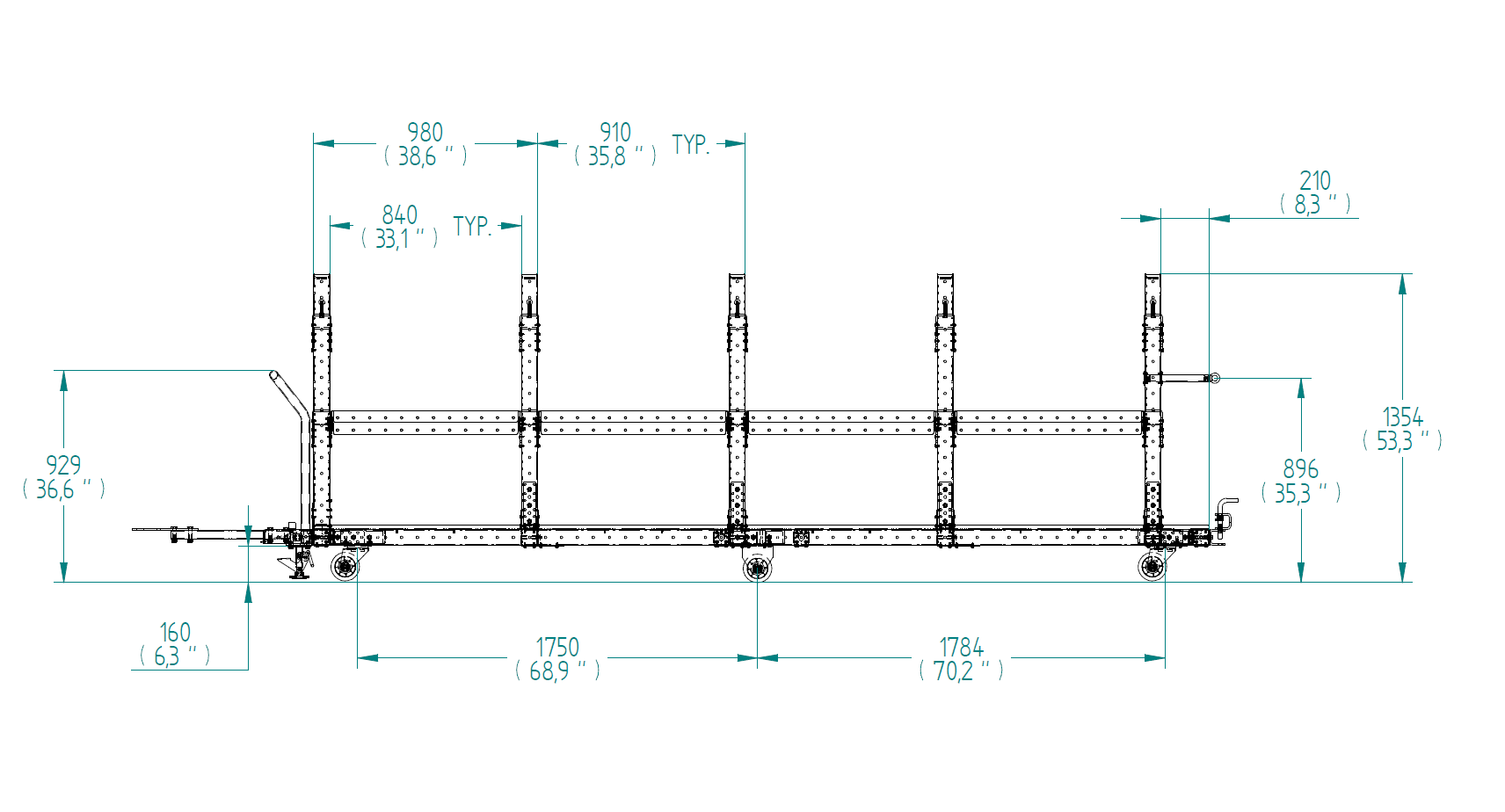

Kit Cart - 1330 x 3920 mm

Kit cart for different components, hangers, shelf and bottom deck.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Tongue and Hitch

Width: 52 inch

Length: 154 inch

Load capacity: 882 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Misc parts

More info

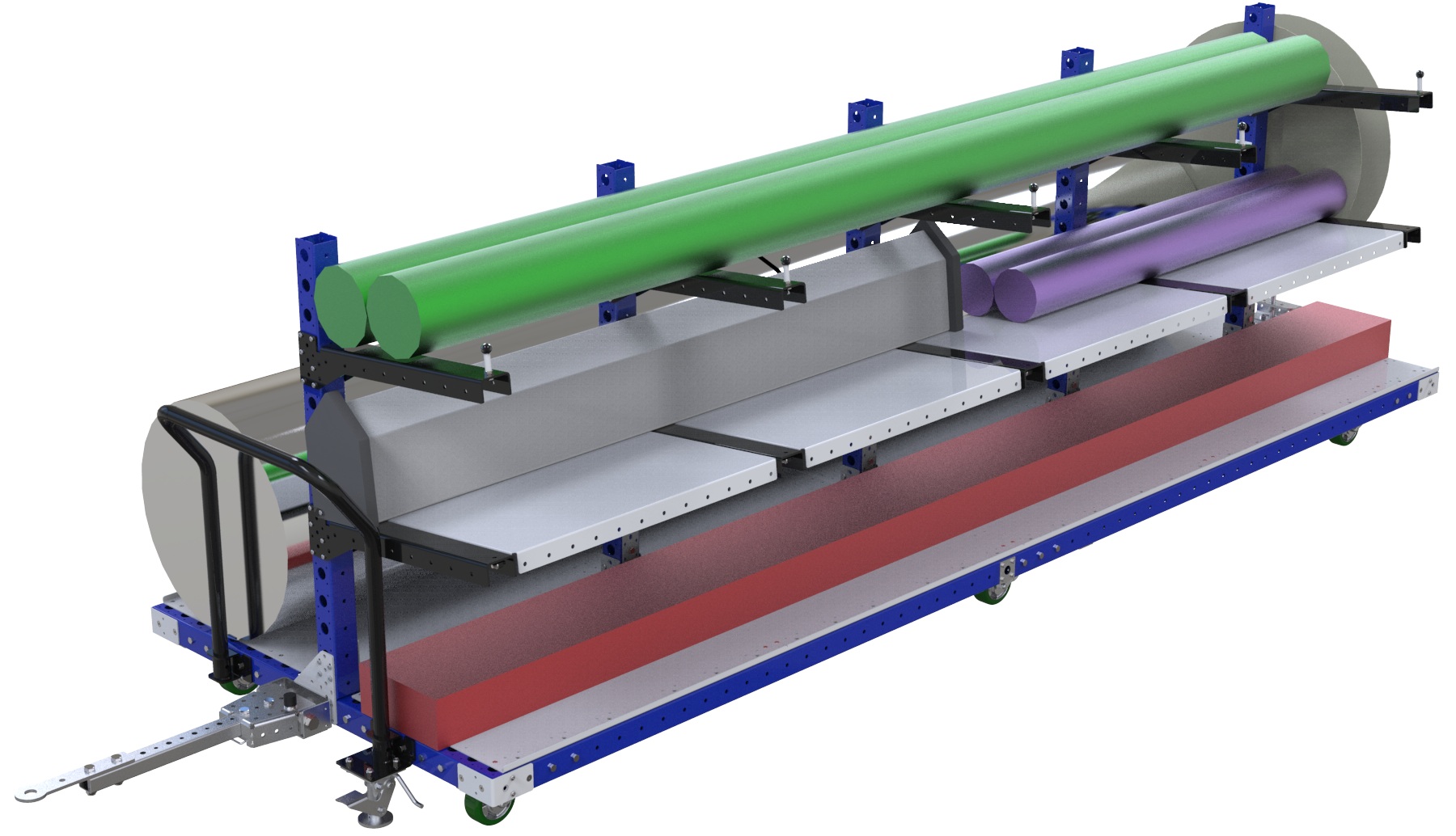

This large cart can transport many parts of different sizes and shapes. The bottom level has a 20 mm flange to keep the boxes secured in the deck, the middle tier has metal sheet shelves, and hangers form the top level with a stopper on their edges. The cart is also equipped with a top bent handlebar, a floor friction brake, drop-pin and hitch towbar and six polyurethane casters. If you manufacture big products and need to transport a big kit of components, this is a good option.

Parts included
FlexBeam STS - 1750 mm 4 Q-001-1292
FlexBeam™ 700 mm 8 Q-001-1307
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 10 Q-001-1401
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexBeam STS FE - 1890 mm 4 Q-001-1509
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 13 Q-002-1162
Flexplate™ 30,5 mm hole 1 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
L Bracket Joint 8 Q-005-0031
T-Joint 1 Q-005-0065
Spring Threaded Tube Connectors 3 Q-005-0469
Triangle Joint 9 Q-005-0483
Heavy Duty Hanger - 560 mm 10 Q-005-0638
Wheel Attachment Box 6 Q-005-1079
Spherical Knob 5 Q-005-1146
64 mm FlexBeam™ Collet 36 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
M10 Lifting Eye Bolt - 17 mm 1 Q-006-0020
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 66 Q-006-1041
Locking Nut M10 143 Q-006-1042
Washer M10 8 Q-006-1043
Hex Head - M10 x 95 mm 3 Q-006-1088
Hex Head - M10 x 90 mm 50 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Nut M10 5 Q-006-1195
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 331 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 94 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 5 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
