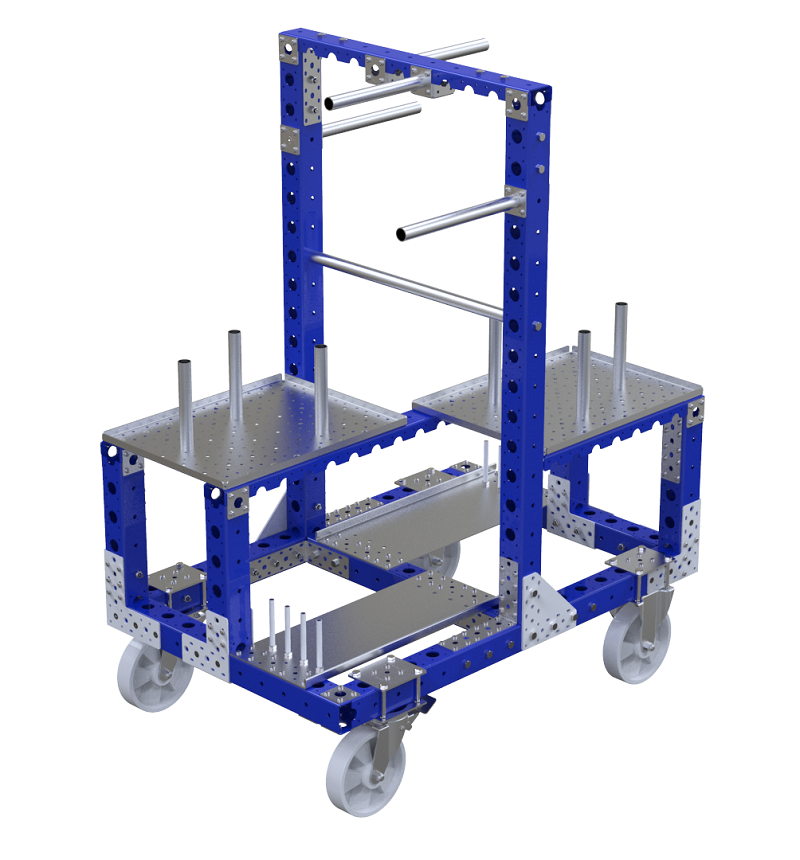

Kit Cart - 1190 x 770 mm

Custom designed cart for holding unique materials.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 47 inch

Load capacity: 661 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

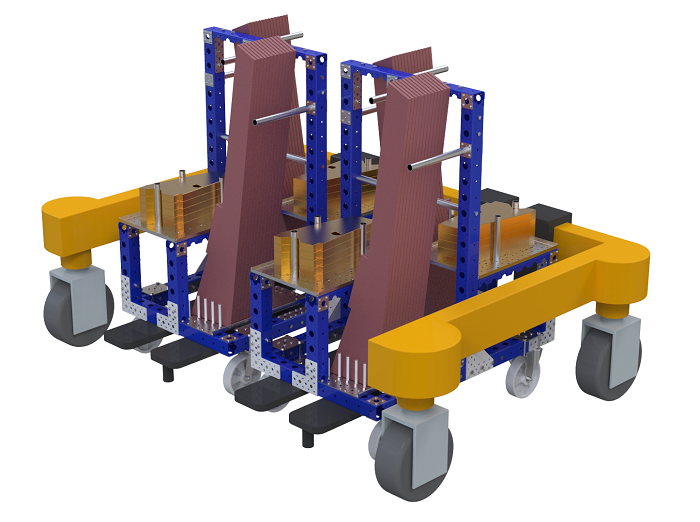

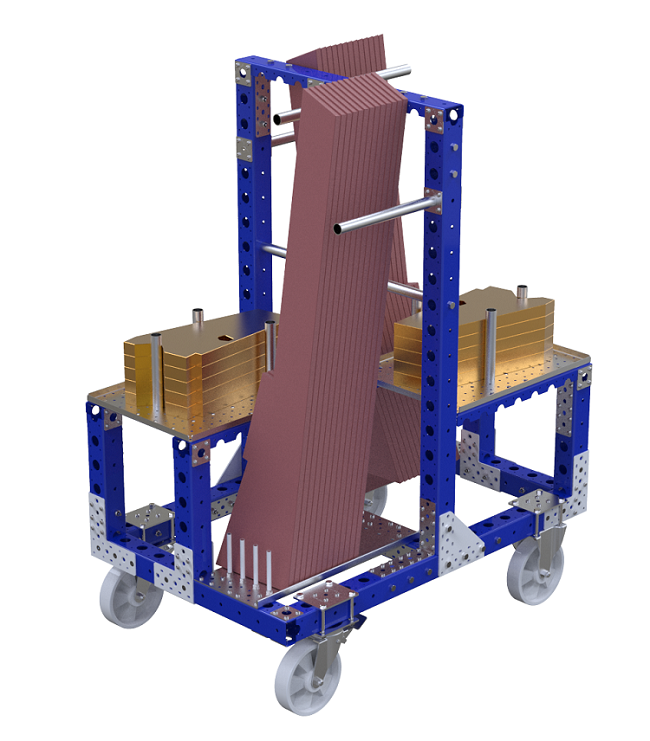

This kit cart is a perfect example of the flexibility the FlexQube concept can offer you. This kit cart has been designed with a focus on tubes, it has tubes which guide the materials into place and hold them there. This cart is also designed for use within the Liftrunner tugger train system (learn more about FlexQube and the LiftRunner tugger train).

Parts included
Outer Tube (No Plate) - 204 mm 6 Q-025-0204
Outer Tube (No Plate) - 274 mm 2 Q-025-0274
Outer Tube (No Plate) - 414 mm 2 Q-025-0414
Flextube 280 mm (Single Plate) With M10 Flexplate 2 Q-000-0097
Plastic Tube - 109 mm 8 Q-000-0103
Outer Tube (No Plate) - 630 mm 1 Q-025-0630
FlexQube 2 Q-001-1078
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 350 mm 8 Q-001-1312
FlexBeam™ 1190 mm FE 1 Q-001-1400
FlexBeam™ 770 mm FE 3 Q-001-1406
FlexBeam™ 630 mm FE 4 Q-001-1408
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexPlate™ 24 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Flexplate™ 30,5 mm hole 2 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
L Bracket Joint 14 Q-005-0031
Spring Threaded Tube Connectors 10 Q-005-0469
Triangle Joint 2 Q-005-0483
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 22 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Fully Threaded - M10 x 120 mm 8 Q-006-1037
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 82 Q-006-1042
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 38 Q-006-1132
Nut M10 8 Q-006-1195
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 328 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Top Plate W. Edge Bend - 560 x 420 mm 2 Q-016-0403
Top Plate W. Edge Bend - 630 x 246 mm 2 Q-016-0404
