Kit Cart - 1050 x 2310 mm
Kit Cart - 1050 x 2310 mm
Kit Cart - 1050 x 2310 mm
Kit Cart - 1050 x 2310 mm
Q-100-1696

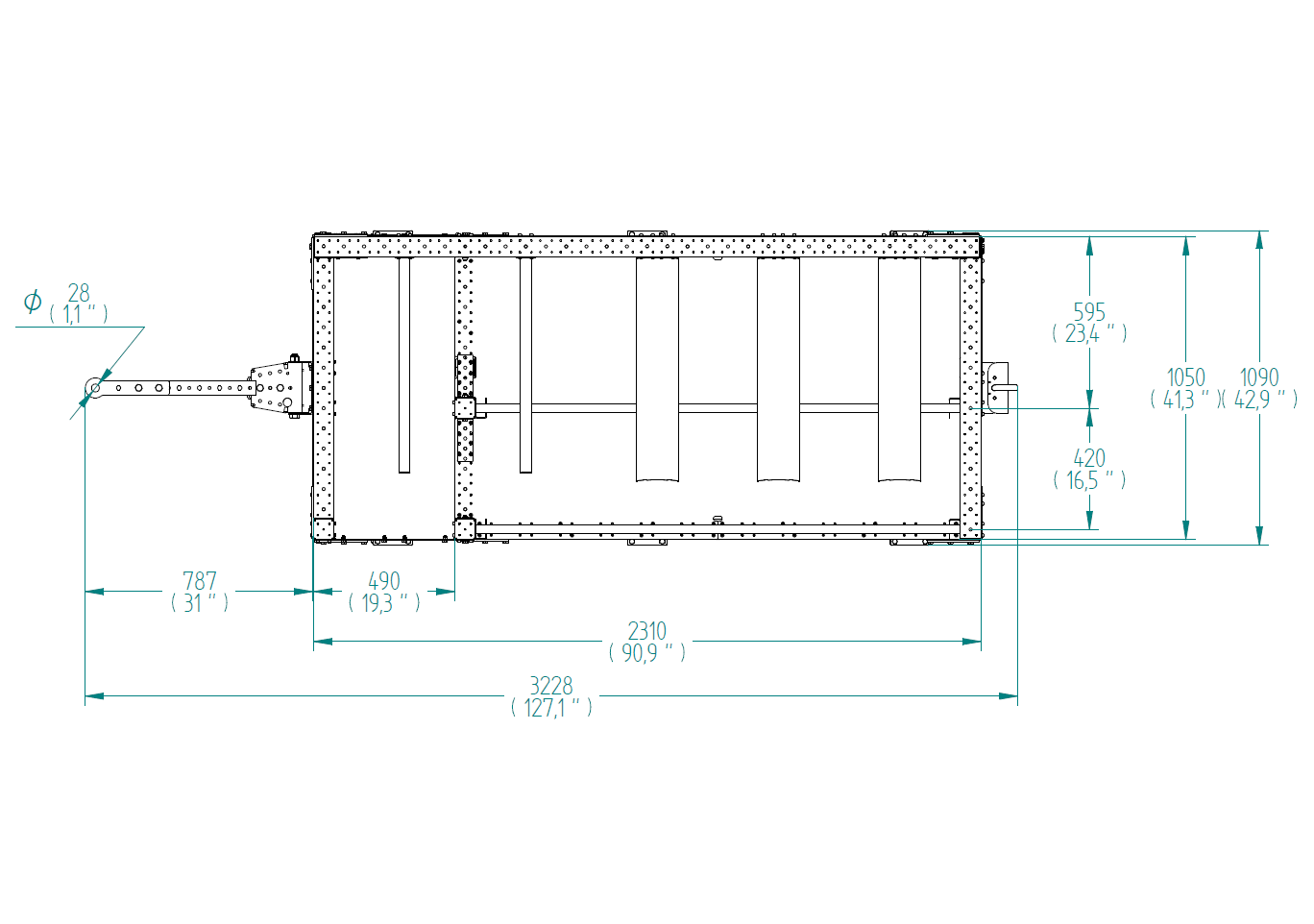

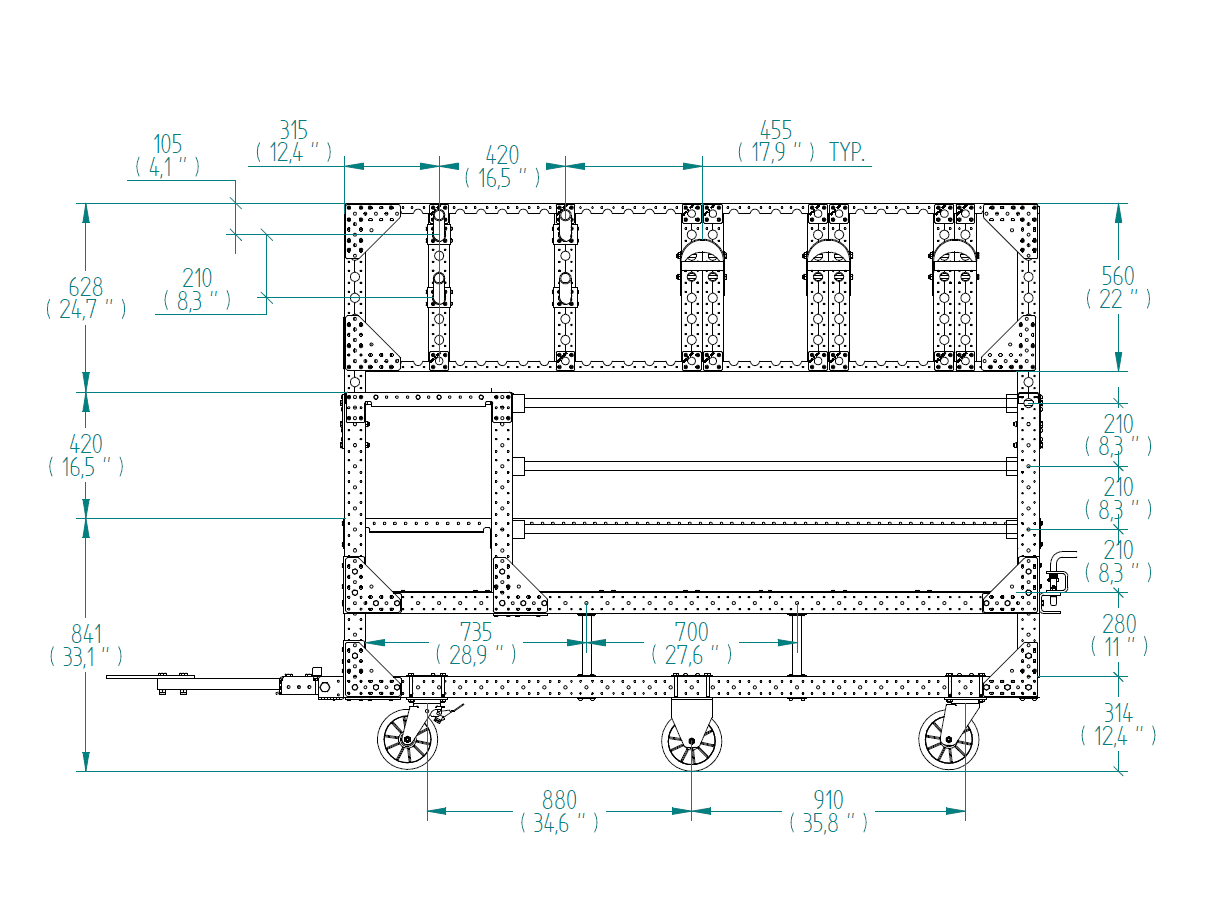

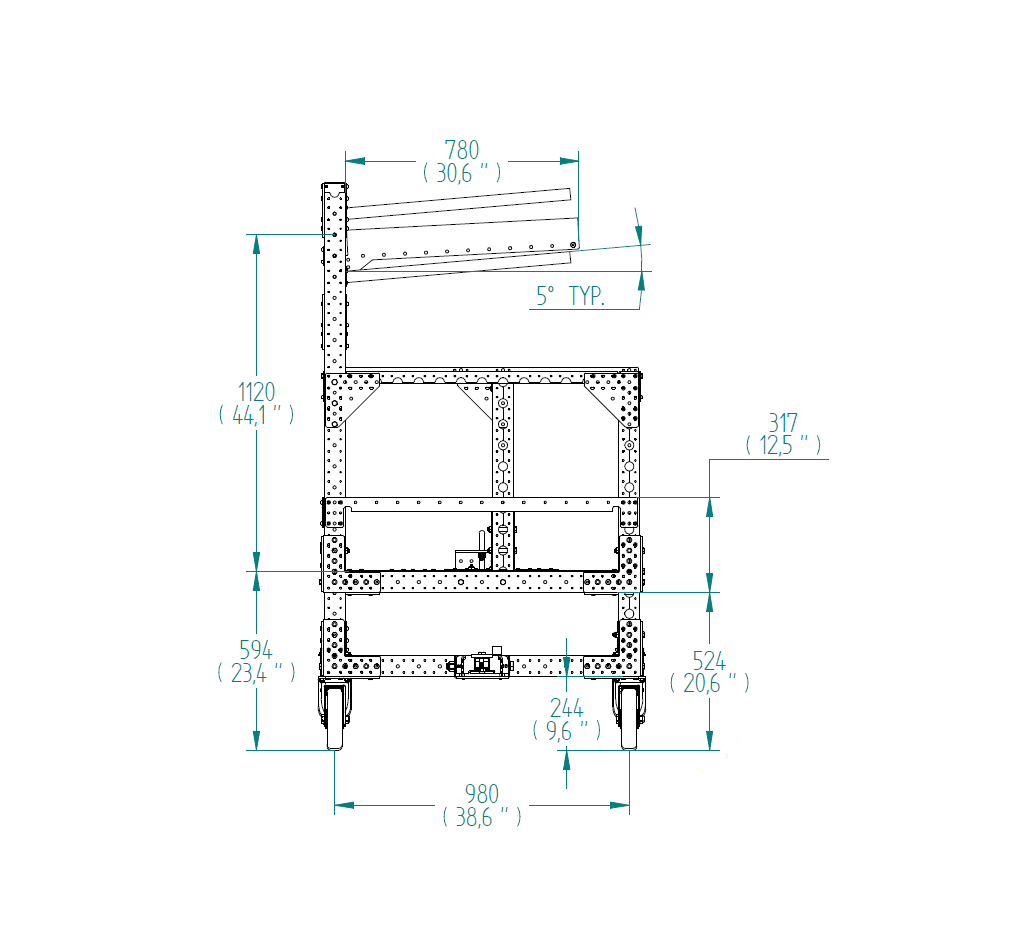

Kit Cart - 1050 x 2310 mm

This three level flow shelf cart is designed for bins, totes and boxes.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 41 inch

Length: 91 inch

Load capacity: 1543 lbs

Transportation method: Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

Three level flow shelf cart commonly used for transportation of totes/bins/boxes or loose components. The cart is equipped with six high-quality polyurethane/nylon casters with brakes in the swivel casters and a tow bar for connection to a tugger train.

Parts included
FlexTube™ 210 mm 4 Q-000-1224
FlexQube 4 Q-001-1078
FlexPlate™ 49 Q-002-1001
FlexPlate™ half 4 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Polyurethan 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
L Bracket Joint 4 Q-005-0031
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 12 Q-005-0469
Triangle Joint 29 Q-005-0483
Rounded Hanger (150 mm) - 770 mm Long 3 Q-005-0656
Angled Tube Hanger - 750 mm 4 Q-005-0786
Attachment for Removable Tube 12 Q-005-0901
Beam to Beam Corner Plate 6 Q-005-1356
64 mm FlexBeam™ Collet 56 Q-005-1426
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 11 Q-006-1041
Locking Nut M10 107 Q-006-1042
M10 x 160 mm 6 Q-006-1055
Hex Head - M10 x 95 mm 20 Q-006-1088
Hex Head - M8 x 16 mm 8 Q-006-1120
Hex Head - M10 x 90 mm 53 Q-006-1132
Locking Nut M8 8 Q-006-1181
Extra low head [1,5 mm] M10x40 mm 6 Q-006-1361
Extra Low Head - M10 x 90 mm 15 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 608 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 48 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Angled Plate - 1038 mm 1 Q-016-0189
Shelf attachment plate - 490 mm 1 Q-016-0441
Shelf Attachment Plate - 630 mm 1 Q-016-0572
Top Plate Half - 910 x 1050 mm 2 Q-016-0788
Flat Shelf - 420 x 1050 mm 1 Q-016-0806
Shelf attachment plate - 560 mm 3 Q-016-0807
Shelf Attachment Plate - 1820 mm 1 Q-016-0808
Top Plate - 490 x 1050 mm 1 Q-016-0810
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 490 mm STS 16 Q-020-0490
FlexBeam™ - 630 mm 8 Q-020-0630
FlexBeam - 910 mm 4 Q-020-0910
FlexBeam™ 1540 mm STS 4 Q-020-1540
FlexBeam™ FE - 420 mm 2 Q-021-0420
FlexBeam™ STS FE - 980 mm 1 Q-021-0980
FlexBeam™ FE - 2170 mm 5 Q-021-2170
FlexBeam™ FE - 2310 mm 5 Q-021-2310
Outer tube (No plate) - 140 mm 3 Q-025-0140
Outer Tube (No Plate) - 1674 mm 6 Q-025-1674
