Q-100-0382

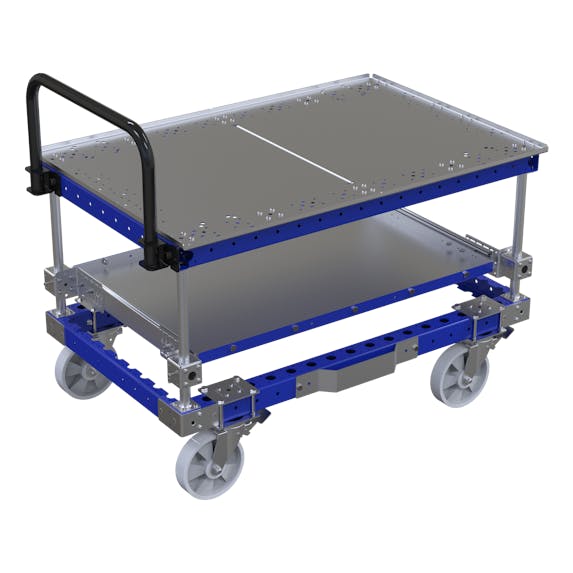

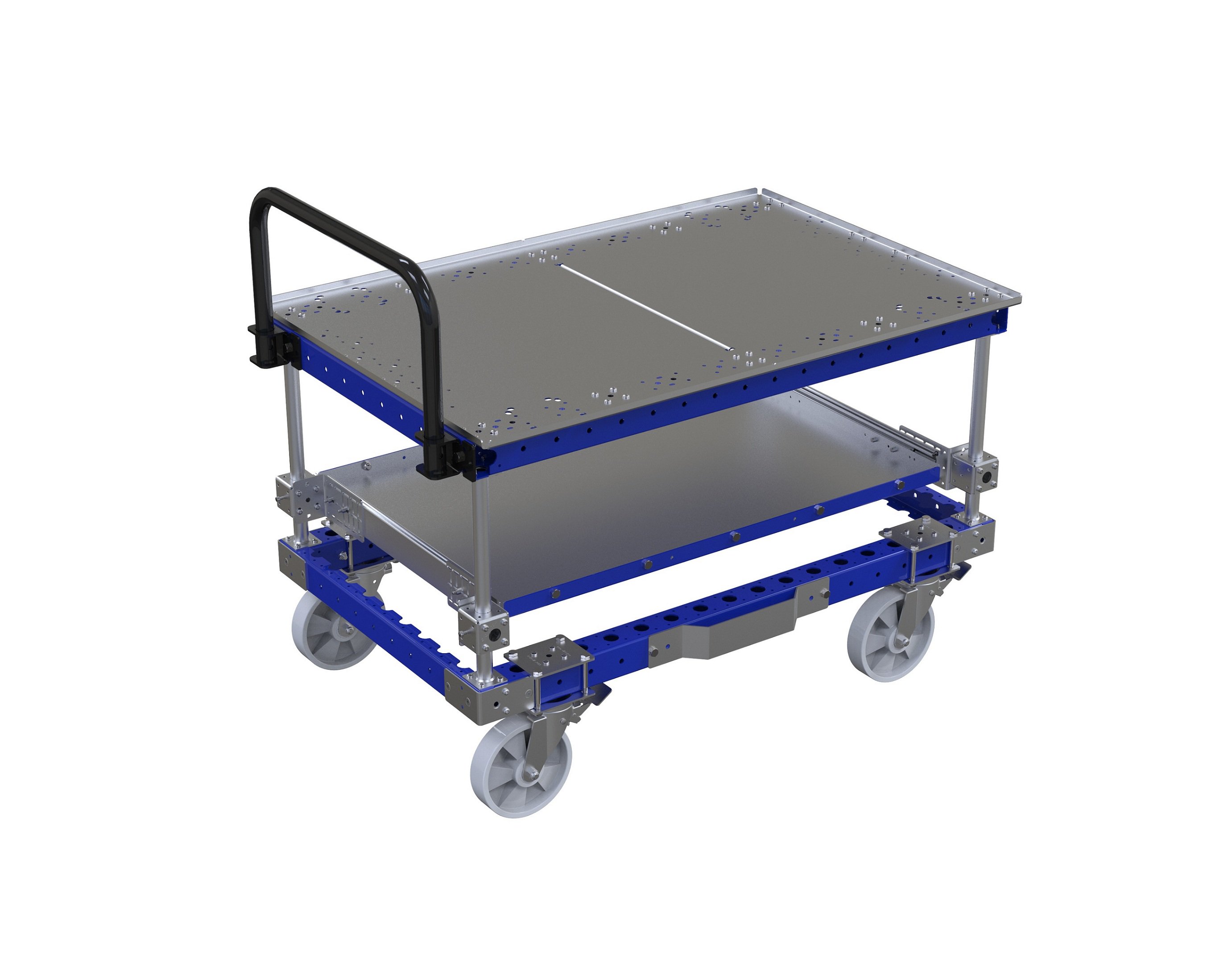

High Pallet Cart With Extra Tray

Two level shelf/pallet cart the bottom level being extendable. The cart is equipped with a handlebar and four nylon swivel casters, two with brakes.

Technical specifications

Category: Extendable Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

Width: 34 inch

Length: 50 inch

Levels: 2

Load capacity: 331 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

Two level shelf/pallet cart. The top level can be used for pallets, containers or other heavier parts while the bottom extendable shelf is used totes/boxes or other lighter parts. The cart is equipped with a handlebar and four nylon swivel casters, two with brakes making it easy to maneuver manually in tight areas.

Parts included
FlexTube™ 420 mm 4 Q-000-1270
FlexQube 8 Q-001-1078
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexPlate™ 7 Q-002-1001
Stiffener - Outside 8 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Directional Locking Plate 1 Q-004-1130
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Modular Attachment Plate for Telescopic Lists 4 Q-005-0041
Spherical Knob 1 Q-005-1146
64 mm FlexBeam™ Collet 10 Q-005-1426
Telescopic List 3080-600 2 Q-005-1519
Shelf Half Plate - Combined 2 Q-005-1725
Allen Head - M6 x 30 mm 4 Q-006-1012
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M10 x 25 mm 9 Q-006-1041
Locking Nut M10 54 Q-006-1042
Locking Nut M6 14 Q-006-1050
Round Head - M6 x 12 mm 6 Q-006-1051
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 14 Q-006-1132
Hex Head Fully Threaded - M10 x 16 9 Q-006-1245
Extra low head [1,5 mm] M10x40 mm 1 Q-006-1361
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 158 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Handlebar Attachment EUR 2 Q-015-0026
Tube for handlebar - 630 x 350 mm 1 Q-015-0052
Angled Plate for Telescopic Shelf - 1059 mm 2 Q-016-0121
Telescopic Shelf - 1069 x 700 mm 1 Q-016-1077
Tugger Train Opener - 38 mm 1 Q-019-1002
FlexPlate™ half 1 Q-002-1369
