Flow shelf cart 1400 x 1260 mm
Flow shelf cart 1400 x 1260 mm
Flow shelf cart 1400 x 1260 mm
Flow shelf cart 1400 x 1260 mm
Q-007-3089

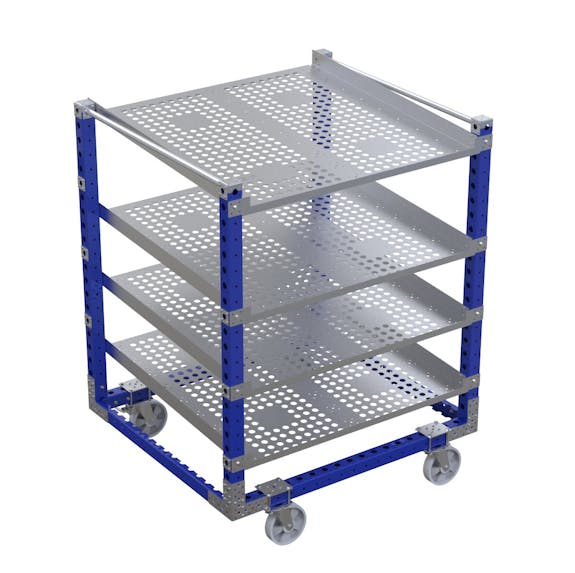

Flow shelf cart 1400 x 1260 mm

Four level flow shelf cart equipped with four nylon swivel casters making it easy to maneuver in tight areas.

Technical specifications

Transportation method: Manual

Category: Flow Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 55 inch

Width: 50 inch

Load capacity: 882 lbs

Levels: 4

Load Capacity per Level: 150 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

Four level flow shelf cart equipped with most commonly used for storing totes, bins and boxes. To reduce the weight of the cart holes has been punched into the shelves. The cart is also equipped with four nylon swivel castersmaking it easy to maneuver.

Parts included
FlexTube™ 1120 mm 2 Q-000-1258
FlexQube 4 Q-001-1078
FlexBeam™ - 1470 mm 8 Q-001-1296
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 22 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Locking Nut M10 68 Q-006-1042
Hex Head - M10 x 90 mm 24 Q-006-1132
Locking Nut M8 64 Q-006-1181
Hex Head Fully Threaded - M10 x 16 20 Q-006-1245
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 208 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Angled plate for telescopic - 1210 mm 8 Q-016-0072
Flow shelf 1260 x 630 mm - Right 4 Q-016-0200
Flow shelf - Left - 1260 x 630 mm 4 Q-016-0201
