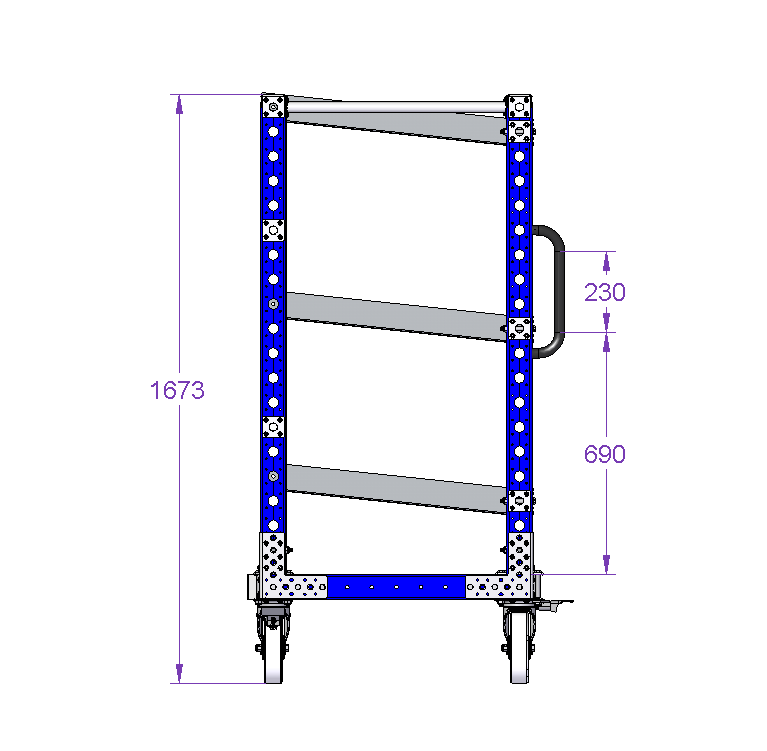

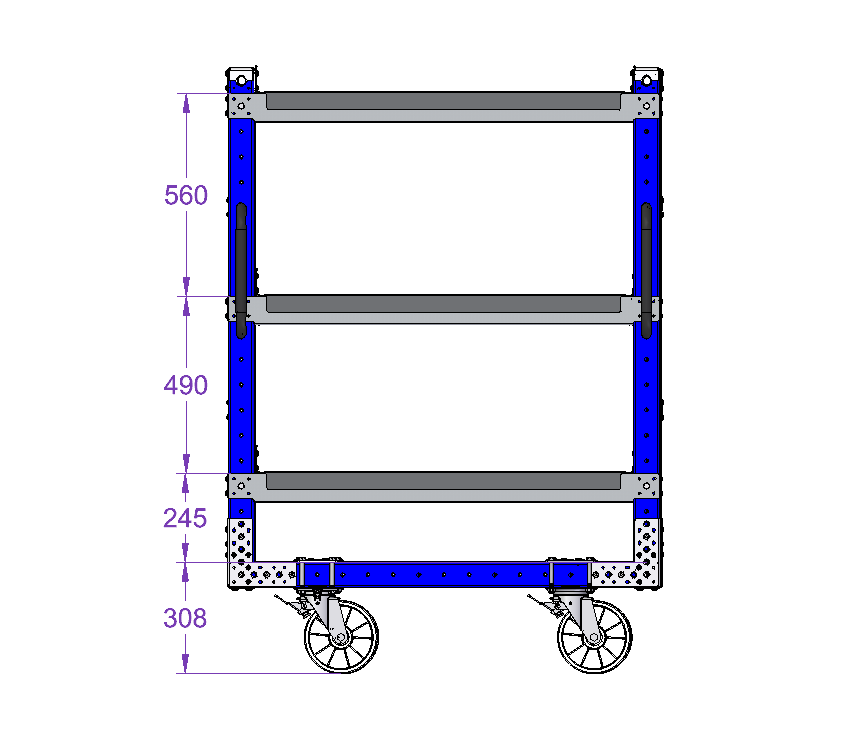

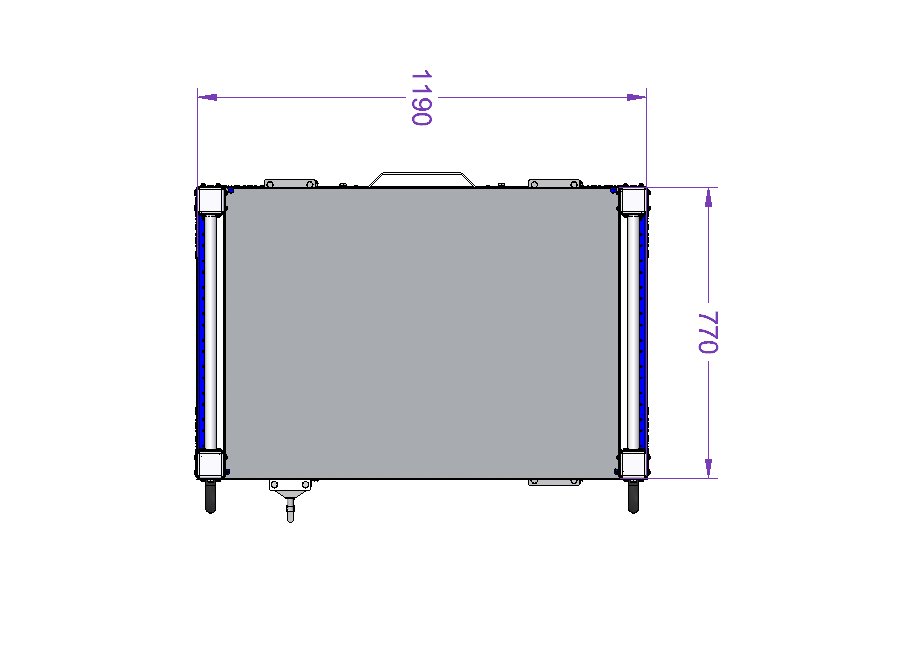

Flow Shelf Cart 1190 x 770 mm (47 x 30 inch)
Flow Shelf Cart 1190 x 770 mm (47 x 30 inch)
Flow Shelf Cart 1190 x 770 mm (47 x 30 inch)
Q-100-0281

Flow Shelf Push Cart - 770 x 1190 mm

Three level flow shelf cart equipped with handlebars and four nylon swivel casters, two with brakes making it easy to maneuver in tight areas.

Technical specifications

Category: Flow Shelf

Transportation method: Manual

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 47 inch

Levels: 3

Load capacity: 331 lbs

Load Capacity per Level: 110 lbs

Width: 30 inch

Caster size: 8 inch

Caster Type: Nylon

More info

Three level flow shelf cart with most commonly used for the storage and transportation of totes, bins or boxes. The cart is equipped with handlebars and four four swivel casters, two with brakes making it easy to maneuver in tight areas. The flow shelves gives better visibility into the shelves and allows material to automatically slide down when empty totes are moved out of the way.

Parts included
FlexTube™ 630 mm 2 Q-000-1312
FlexQube 4 Q-001-1078
FlexBeam™ - 1330 mm 8 Q-001-1298
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 20 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Directional Locking Plate 1 Q-004-1130
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 14 Q-005-1426
Locking Nut M10 48 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 20 Q-006-1132
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 188 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
M8 Handlebar US - 350 mm 2 Q-015-1089
Flow Shelf - 1048 x 773 mm 3 Q-016-1026
Tugger Train Opener - 38 mm 1 Q-019-1002
