Flow Rack with Rollers
Flow Rack with Rollers
Flow Rack with Rollers
Flow Rack with Rollers
Flow Rack with Rollers
Q-100-0041

Flow Rack with Rollers

Customised flow rack with roller shelves.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Category: Flow Rack

Length: 52 inch

Levels: 2

Load capacity: 441 lbs

Load Capacity per Level: 220 lbs

Width: 33 inch

Transportation method: Manual

More info

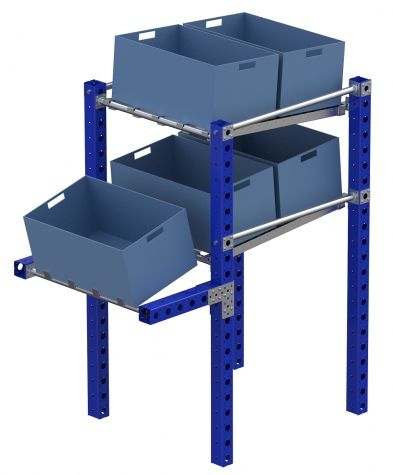

This flow rack is equipped with roller shelves and is used to present materials to the operators. It is ideally designed for totes, bins and boxes and is at an ergonomic height for the operators to access. The height, width, length and angle tilt can all be easily adjusted on this rack.

Parts included
FlexBeam™ 1540 mm FE 8 Q-001-1504
FlexTube™ 770 mm 4 Q-000-1265
FlexTube™ 700 mm 5 Q-000-1002
Heavy Duty Joint M10 2 Q-005-1580
FlexBeam™ 420 mm FE 4 Q-001-1411
Roller Trax Attachment Stop 9 Q-003-1037
Roller Rail 34 mm Diameter - 0.8 m 10 Q-003-2001
RTE Plug 8 Q-005-1289
Locking Nut M10 16 Q-006-1042
Fully Threaded - M10 x 120 mm 8 Q-006-1037
Self Tapping Screw M6 Torx H60 x 16 56 Q-006-1384
Roller Rail 34 mm Diameter - 0.39 m 4 Q-003-2000
