Q-100-1620

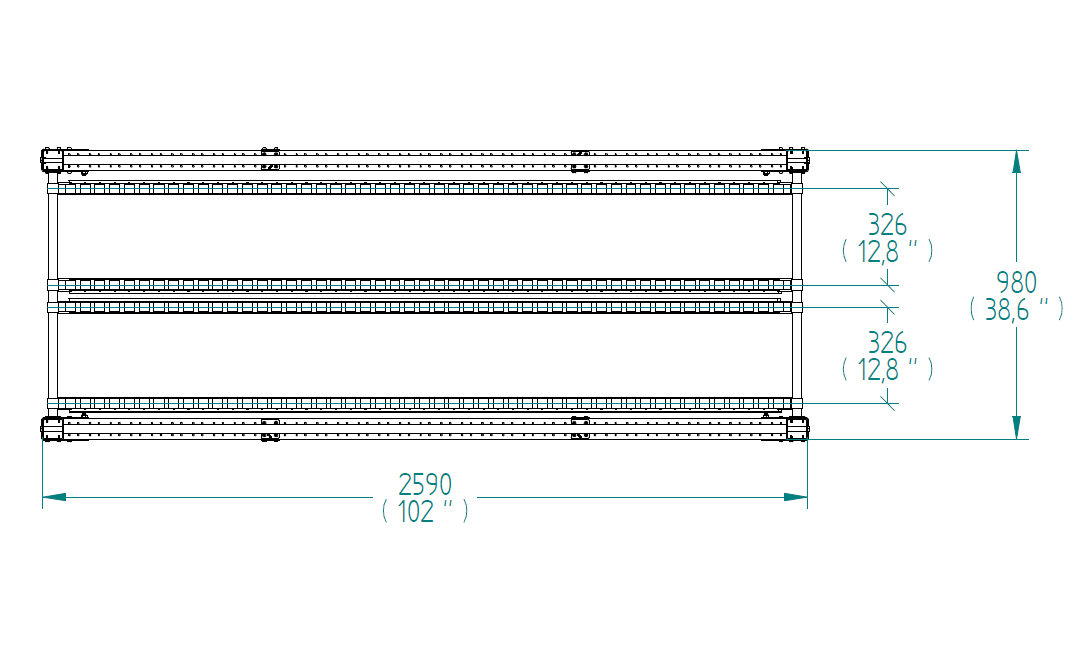

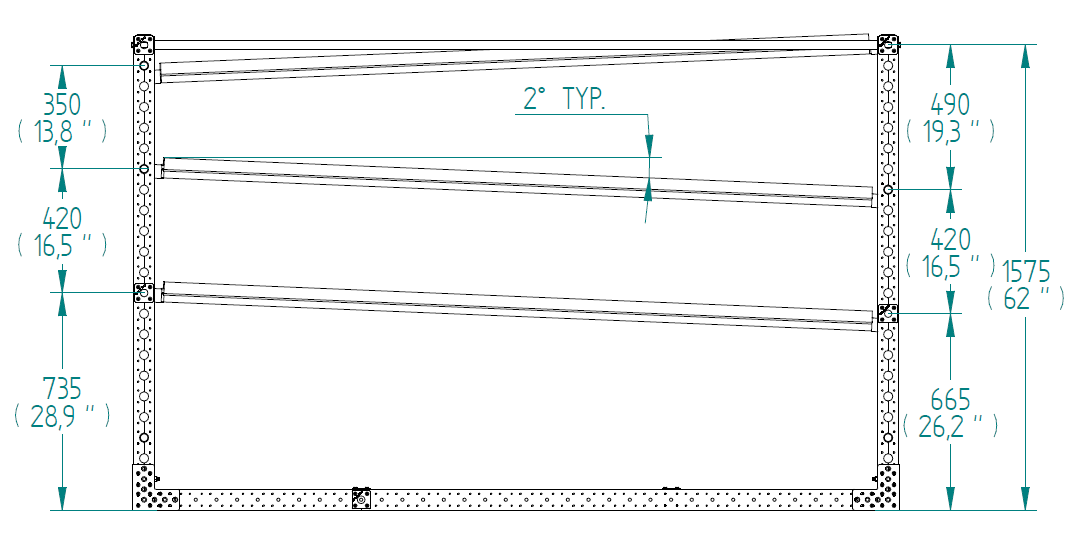

Flow Rack - 980 x 2590 mm

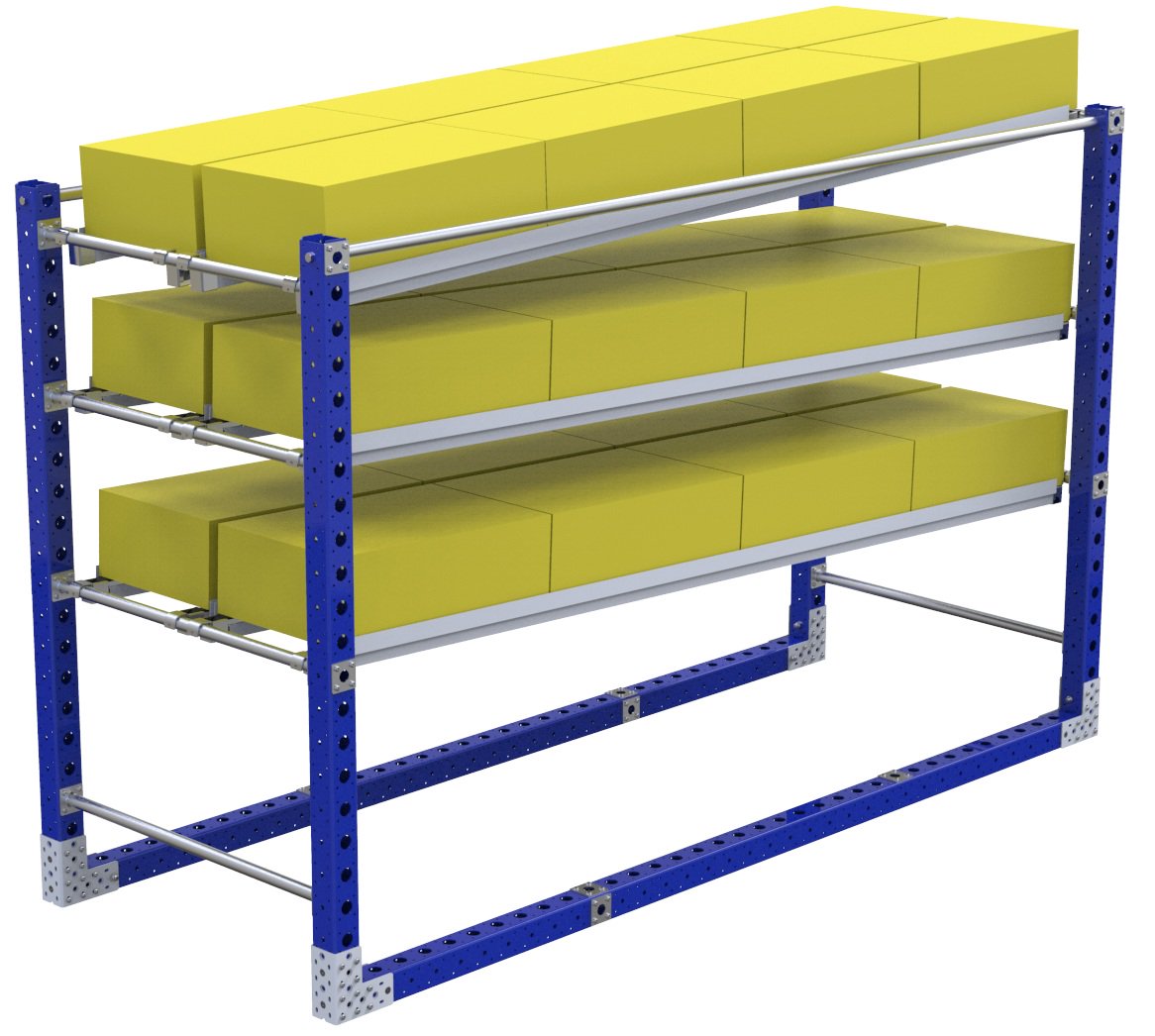

Three level roller rack for moving of boxes between stations.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 102 inch

Levels: 3

Load capacity: 474 lbs

Load Capacity per Level: 154 lbs

Width: 39 inch

Transportation method: Manual

More info

This flow rack is equipped with three flow shelves and can move boxes between stations. The rollers are fixed to the structure allowing the boxes to roll smoothly and quickly to the next point of the process. The rack is equipped with guides on the rollers to keep the boxes secured.

Parts included
FlexTube™ 840 mm 8 Q-000-1398
FlexPlate™ 16 Q-002-1001
Rail Support No Stop 12 Q-003-1021
Rail Support Drop 30 mm Stop 12 Q-003-1022
Spring Threaded Tube Connectors 8 Q-005-0469
64 mm FlexBeam™ Collet 12 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Locking Nut M10 8 Q-006-1042
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 208 Q-006-1384
FlexBeam™ FE - 1610 mm 8 Q-021-1610
