Flow Rack - 3080 x 10800 mm
Flow Rack - 3080 x 10800 mm
Flow Rack - 3080 x 10800 mm
Flow Rack - 3080 x 10800 mm
Flow Rack - 3080 x 10800 mm
Q-100-1489

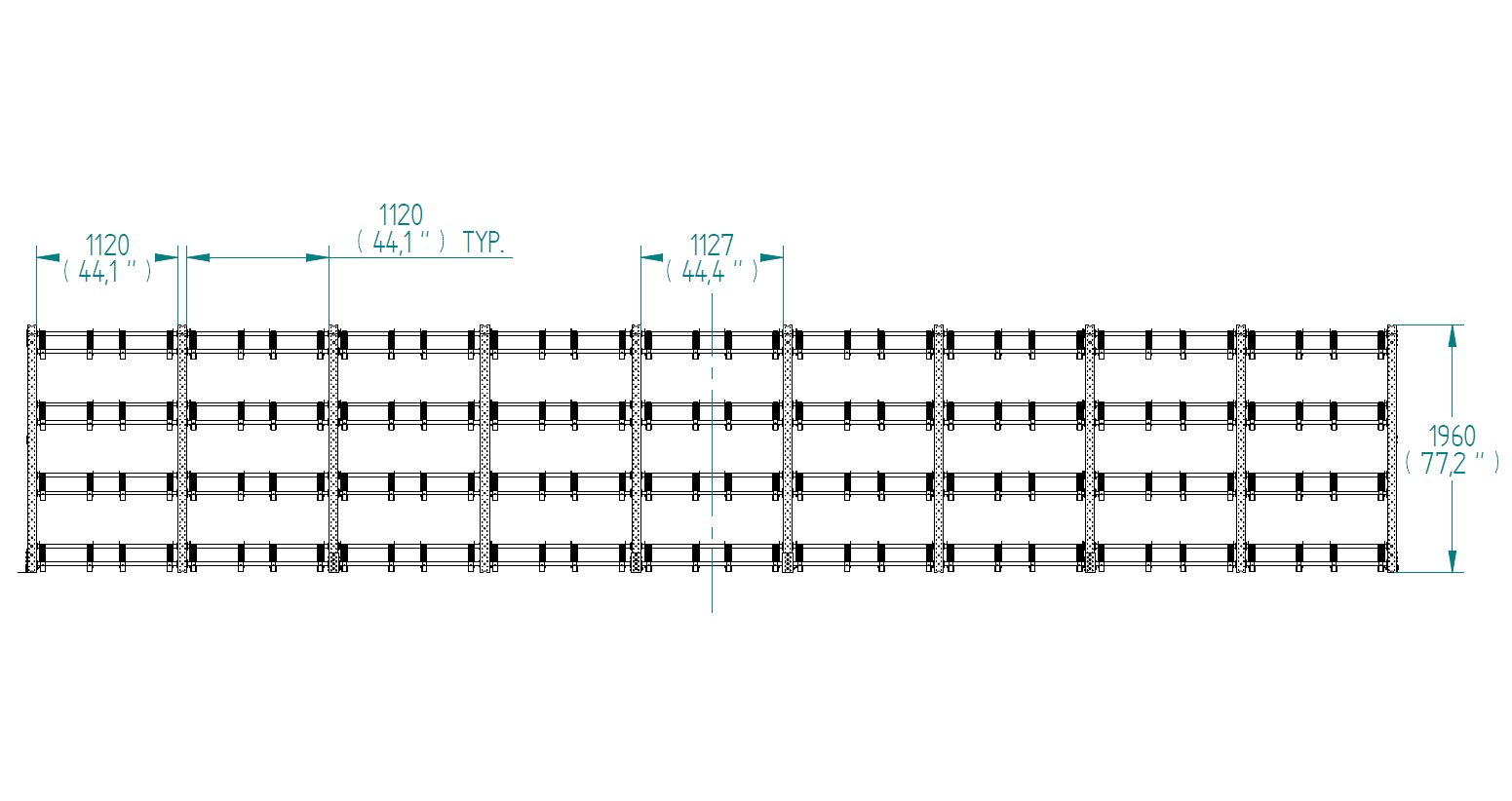

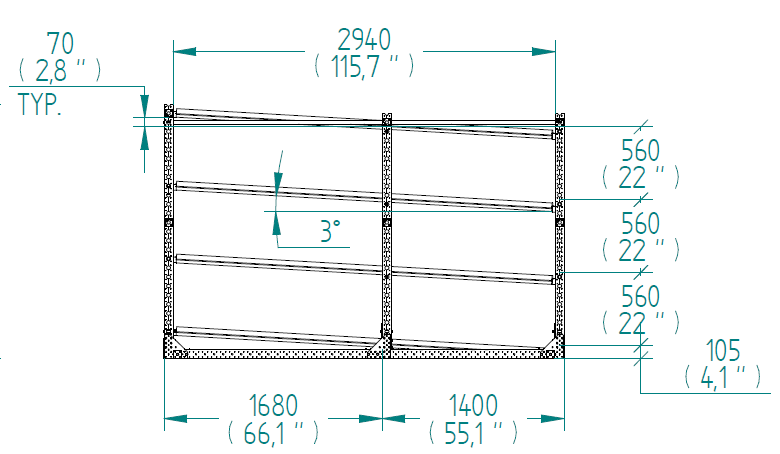

Flow Rack - 3080 x 10800 mm

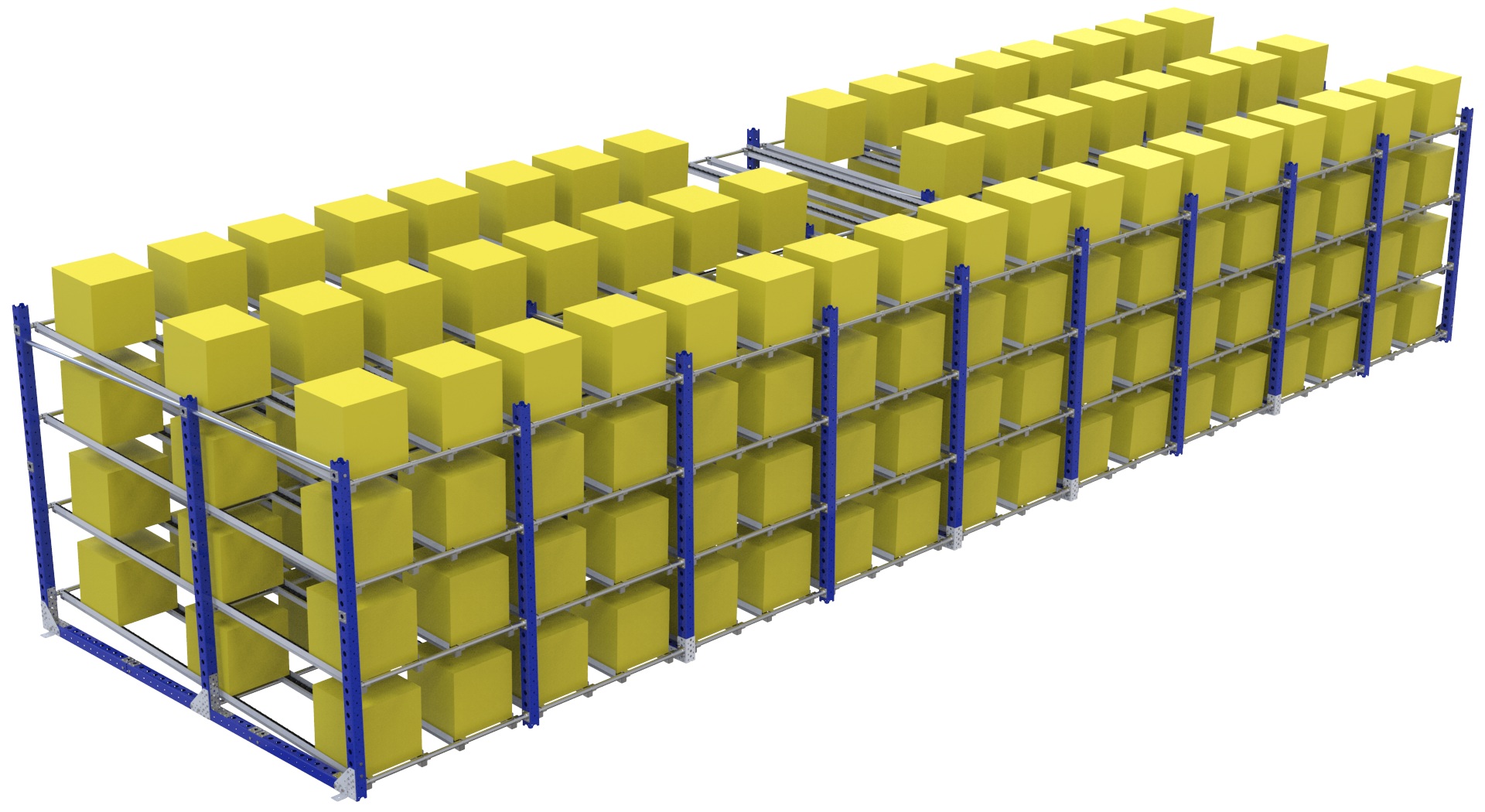

This four level flow rack is designed to store and move bins, totes and boxes.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Width: 121 inch

Length: 425 inch

Load capacity: 10800 lbs

More info

This flow rack is used to store and move parts or components in boxes. The four levels are equipped with high-quality steel rollers and are installed according to the customer’s operation. This is a straightforward but yet robust solution for handling your materials.

Parts included
FlexTube™ 1120 mm 76 Q-000-1258
FlexBeam STS - 2030 mm 20 Q-001-1288
FlexBeam™ 840 mm FE 12 Q-001-1405
FlexBeam STS FE - 2100 mm 12 Q-001-1512
FlexPlate™ 100 Q-002-1001
Flexplate™ M10 40 Q-002-1162
Rail Support No Stop 144 Q-003-1021
Rail Support Drop 30 mm Stop 144 Q-003-1022
L Bracket Joint 14 Q-005-0031
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 112 Q-005-0469
Triangle Joint 6 Q-005-0483
64 mm FlexBeam™ Collet 68 Q-005-1426
Heavy Duty Joint M10 8 Q-005-1580
Fully Threaded - M10 x 120 mm 12 Q-006-1037
Locking Nut M10 80 Q-006-1042
Hex Head - M10 x 90 mm 56 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 12 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 34 Q-006-1361
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 988 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Outer Tube (No Plate) - 1260 mm 6 Q-025-1260
Outer Tube (No Plate) - 1610 mm 6 Q-025-1610
