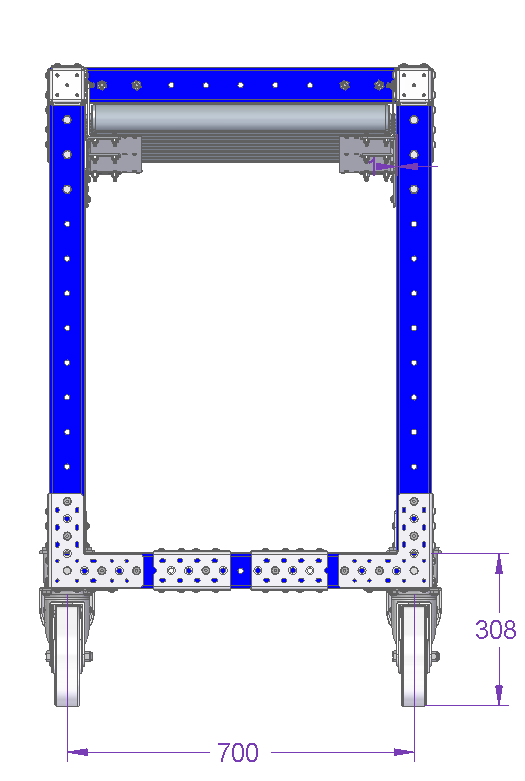

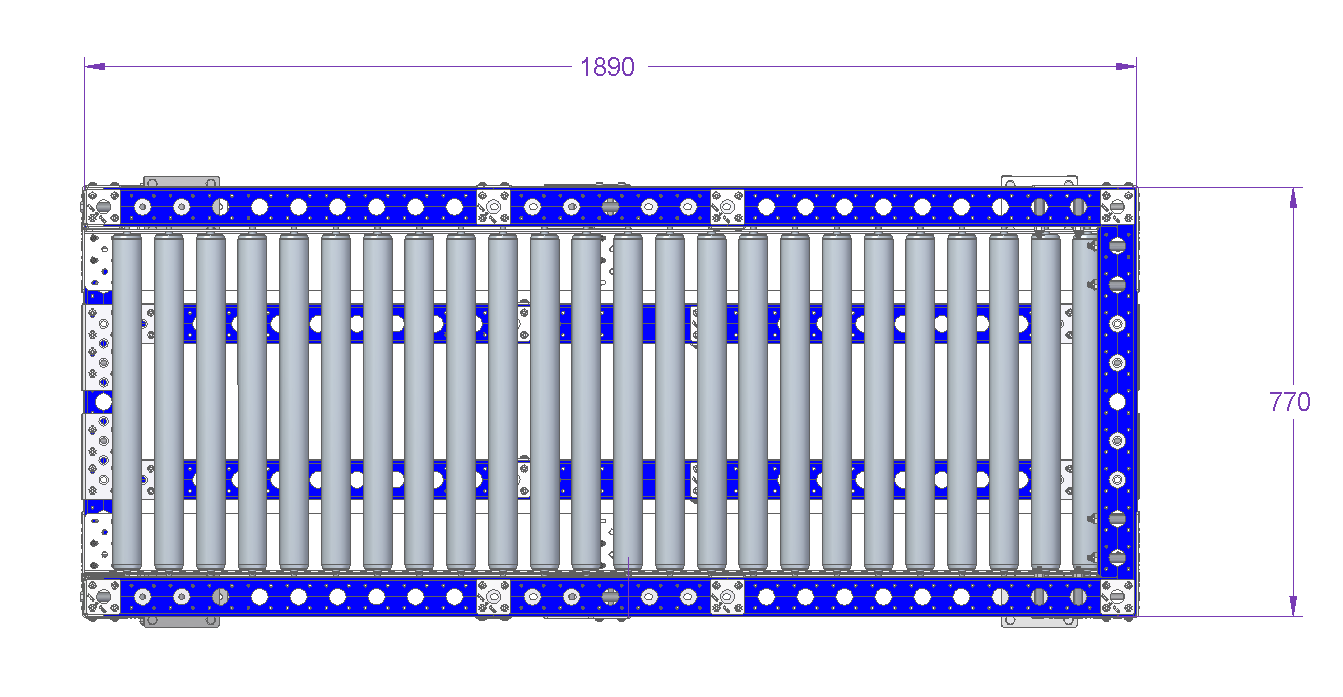

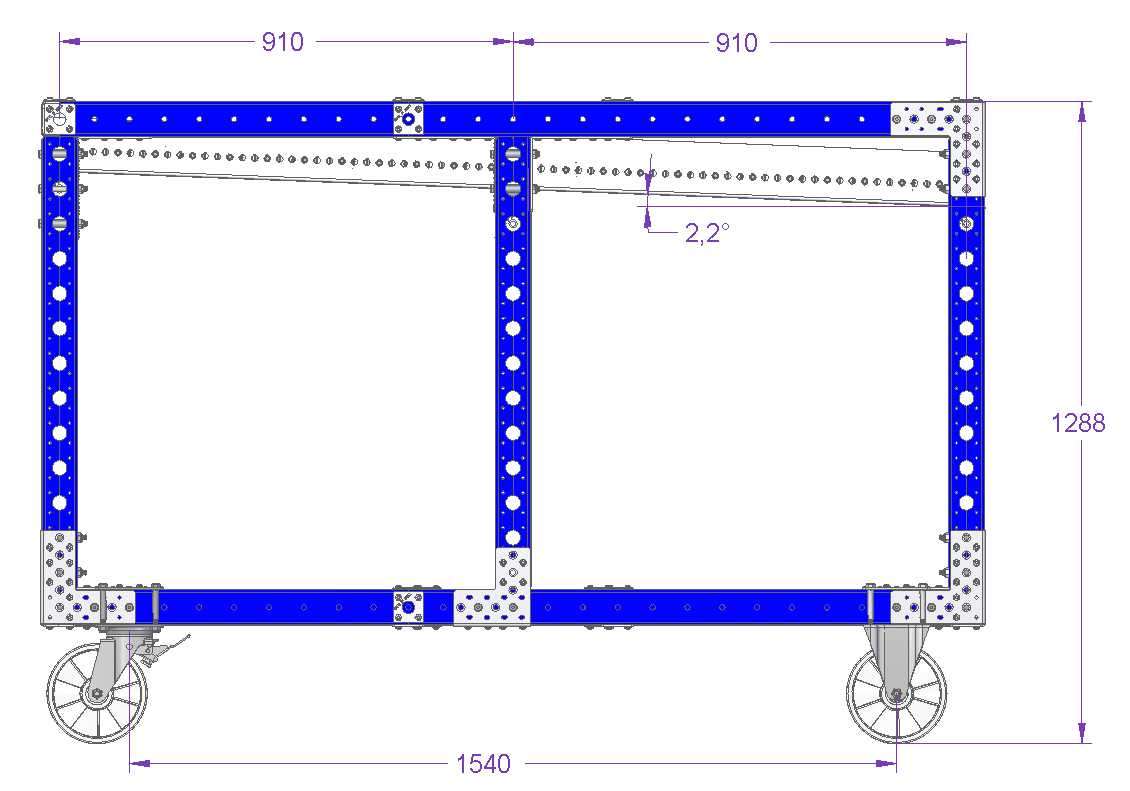

Flow Rack - 1890 x 770 mm
Flow Rack - 1890 x 770 mm
Flow Rack - 1890 x 770 mm
Flow Rack - 1890 x 770 mm
Q-100-0752

Flow Rack - 1890 x 770 mm

Custom designed flow rack for presenting bins and boxes.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 74 inch

Levels: 2

Load capacity: 1323 lbs

Load Capacity per Level: 220 lbs, 1102 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flow rack is equipped with steel rollers for easily transitioning bins, totes and boxes. This cart can be equipped with a handlebar to improve overall ergonomics.

Parts included
FlexQube 2 Q-001-1078
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 700 mm 12 Q-001-1307
FlexBeam™ 910 mm FE 12 Q-001-1404
FlexBeam™ 770 mm FE 3 Q-001-1406
FlexBeam™ 630 mm FE 3 Q-001-1408
FlexPlate™ 46 Q-002-1001
Flexplate™ M10 6 Q-002-1162
Steel roller - 600 x 50 mm 24 Q-003-0046
Roller Rail Right Side - 1890 mm 1 Q-003-0047
Roller Rail Left Side - 1890 mm 1 Q-003-0048
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
L Bracket Joint 6 Q-005-0031
L Shape Attachment Plate - 70 x 70 mm 4 Q-005-0524
L Shape Attachment Plate - 70 x 105 mm 2 Q-005-0525
Beam to Beam Corner Plate 6 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
M6 x 20 K6S 10.9 Round Head (black) 24 Q-006-1018
Locking Nut M10 74 Q-006-1042
Locking Nut M6 24 Q-006-1050
Hex Head - M10 x 90 mm 26 Q-006-1132
Extra Low Head - M10 x 90 mm 44 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 464 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
