Flow Rack - 1610 x 1190 mm
Flow Rack - 1610 x 1190 mm
Flow Rack - 1610 x 1190 mm
Flow Rack - 1610 x 1190 mm
Flow Rack - 1610 x 1190 mm
Q-100-0846

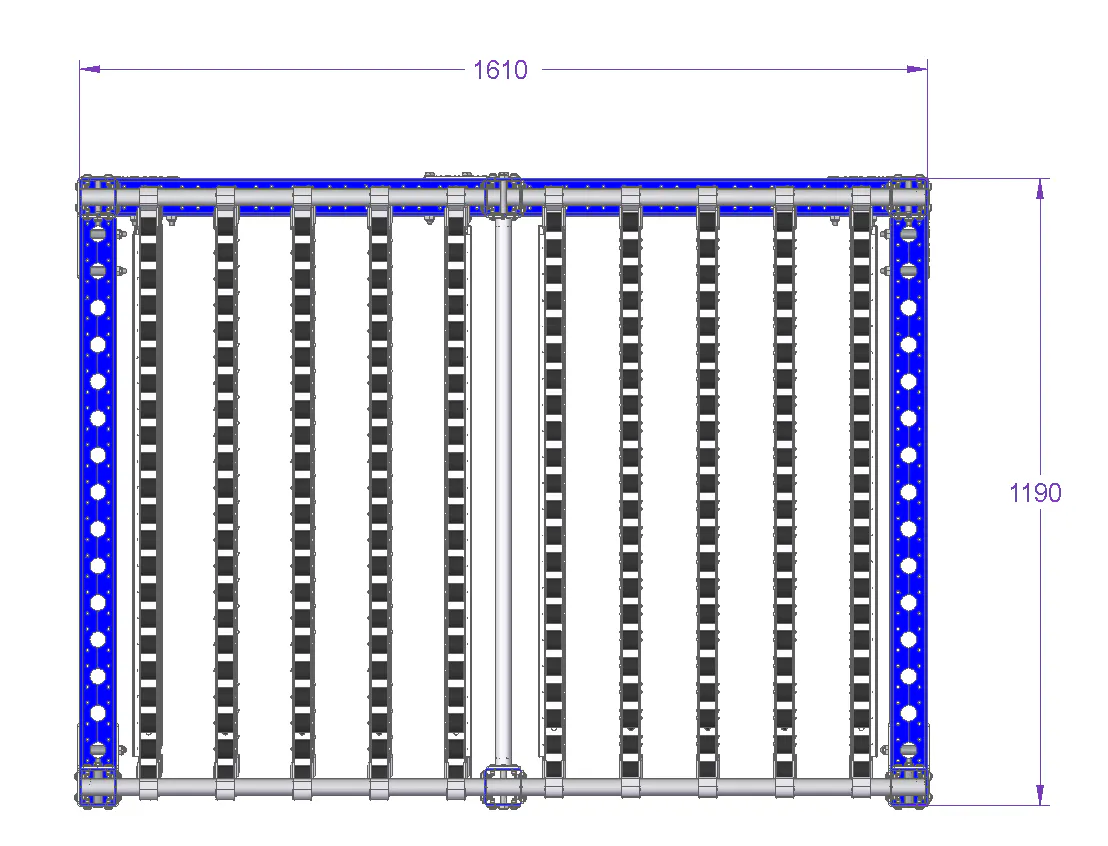

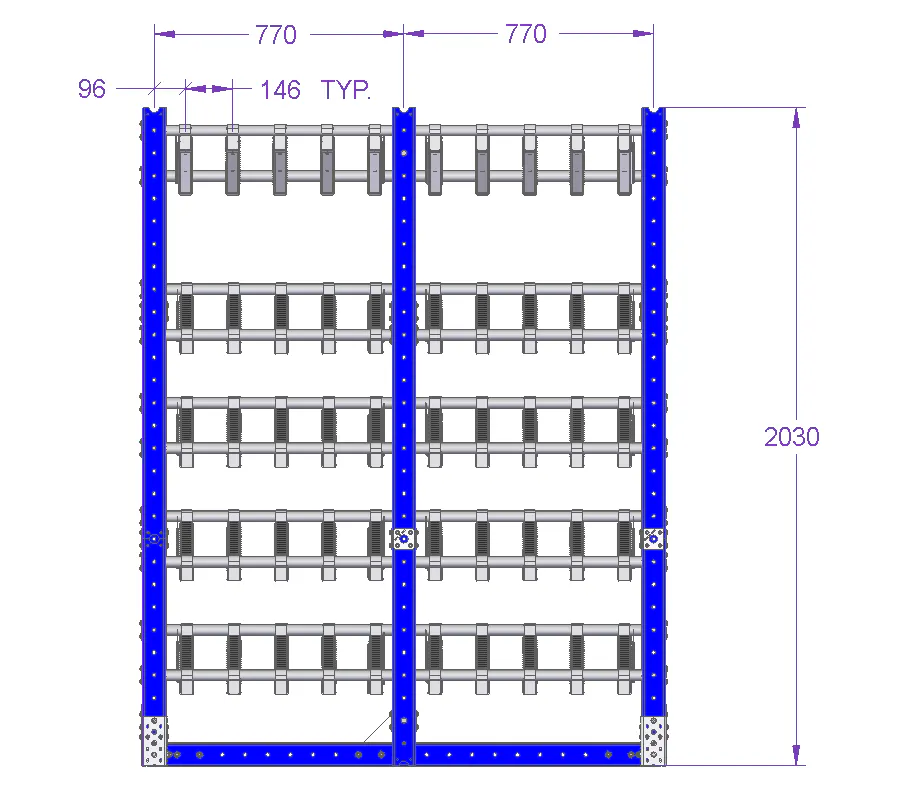

Flow Rack - 1610 x 1190 mm

Standard flow rack fixture for presenting bins, totes and boxes.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

Length: 63 inch

Load capacity: 1653 lbs

More info

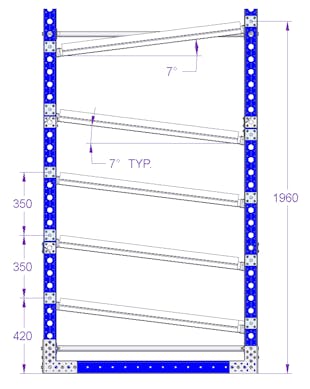

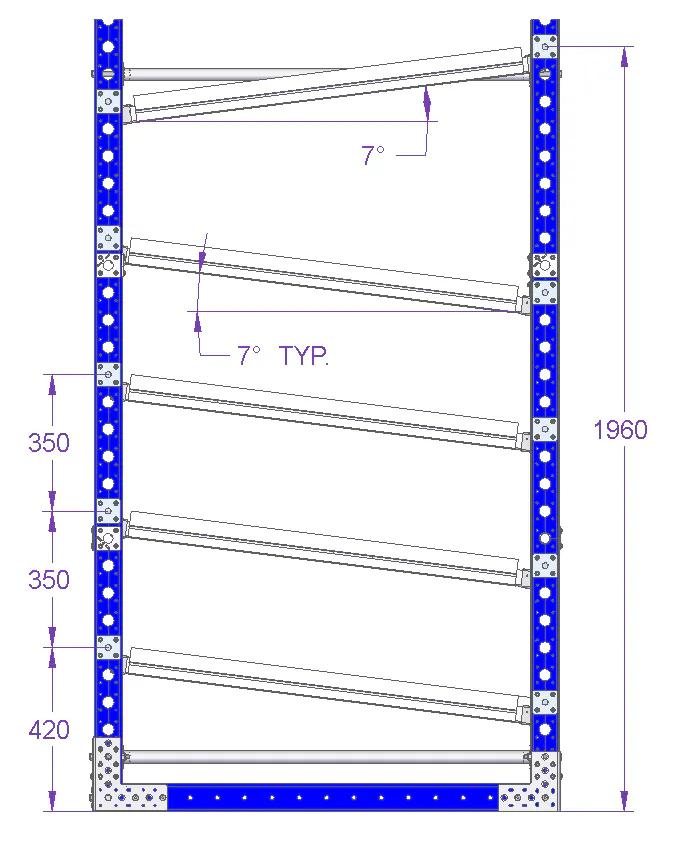

This flow rack is used to improve material presentation to the operators. It is equipped with five roller shelves, the bottom four are used for presenting the materials, while the top shelf is used as a returning shelf. This is a sturdy rack which is ideal for use of bins, totes or boxes.

Parts included
FlexTube™ 1050 mm 2 Q-000-1053
FlexBeam™ - 1540 mm 2 Q-001-1295
FlexBeam™ - 1330 mm 12 Q-001-1298
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 630 mm 10 Q-001-1308
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexPlate™ 32 Q-002-1001
Flexplate™ M10 20 Q-002-1162
Flexplate™ 30,5 mm hole 2 Q-002-1320
Roller Rail - 1090 mm 50 Q-003-0061
RR Guide 10 mm offset - 1000 mm 20 Q-003-0062
Rail Support Drop 30 mm Stop 100 Q-003-1022
Spring Threaded Tube Connectors 24 Q-005-0469
Triangle Joint 1 Q-005-0483
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 17 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Locking Nut M10 21 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 3 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 258 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 22 Q-006-1410
Outer Tube (No Plate) - 1610 mm 10 Q-025-1610
