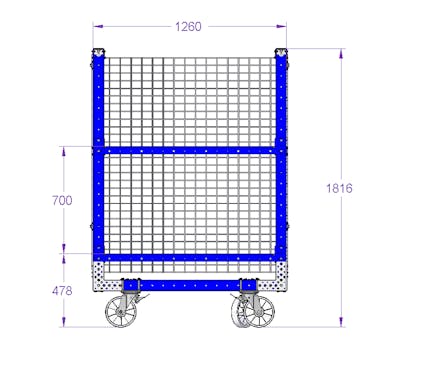

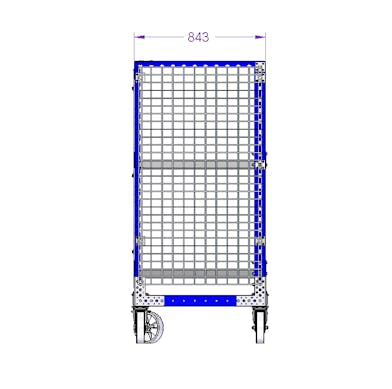

Flat Shelf Cart with Fence 1260 x 840 mm
Flat Shelf Cart with Fence 1260 x 840 mm
Q-100-0300

Flat Shelf Cart with Fence 1260 x 840 mm

Two level flat shelf cart designed to be transported by an E-Frame. Equipped with wire mesh walls and four nylon swivel casters.

Technical specifications

Industry: Automotive, Distribution, Industrial Machinery, Tier One Suppliers

Transportation method: Manual

Category: Flat Shelf

Length: 50 inch

Width: 33 inch

Levels: 2

Load capacity: 661 lbs

Load Capacity per Level: 331 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

Two level flat shelf cart designed to be transported by an E-Frame or manually. Three sides are closed of by wire mesh to prevent parts from falling out during transportation. The cart is also equipped with four nylon swivel casters, two with brakes making it easy to maneuver in tight areas.

Parts included
FlexBeam™ - 1470 mm 6 Q-001-1296
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexPlate™ 10 Q-002-1001
Stiffener - Outside 2 Q-002-1050
Flexplate™ M10 8 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Wire Mesh - 1210 x 1400 mm 1 Q-005-0247
Wire Mesh - 790 x 1400 mm 2 Q-005-0248
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 10 Q-005-1426
Washer 10,5 x 30 x 2,5 14 Q-006-1030
Hex Head - M10 x 25 mm 14 Q-006-1041
Locking Nut M10 76 Q-006-1042
Hex Head - M8 x 16 mm 12 Q-006-1120
Hex Head - M10 x 90 mm 24 Q-006-1132
Locking Nut M8 24 Q-006-1181
Extra Low Head - M10 x 90 mm 10 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 130 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Flat Shelf - 1119 x 840 mm 2 Q-016-1237
Angled Plate - 1248 mm 4 Q-016-1238
