Flat Shelf Cart - 910 x 1820 mm
Flat Shelf Cart - 910 x 1820 mm
Flat Shelf Cart - 910 x 1820 mm
Flat Shelf Cart - 910 x 1820 mm
Q-100-1502

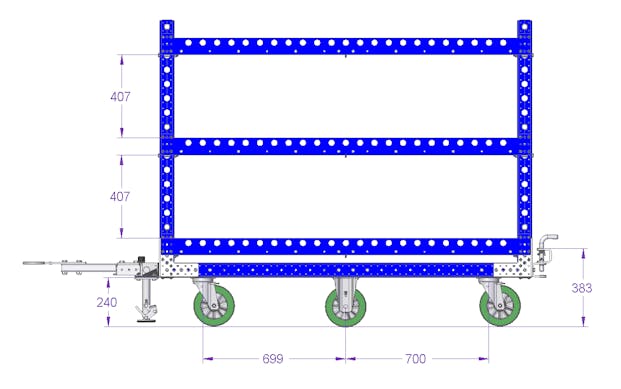

Flat Shelf Cart - 910 x 1820 mm

Three level flat shelf tugger cart equipped with a tow bar, floor brake and six high quality polyurethane casters.

Technical specifications

Category: Flat Shelf

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 72 inch

Levels: 3

Load capacity: 750 lbs

Load Capacity per Level: 249 lbs

Width: 36 inch

Caster size: 8 inch

Caster Type: Polyurethane

Type of tow bar: Tongue and Hitch

More info

Robust tuggable flat shelf cart with three levels commonly used for transportation of totes/bins/boxes or loose components. The cart is also equipped with a tow bar, floor brake and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexTube™ 770 mm 6 Q-000-1265
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 6 Q-005-1079
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 40 Q-005-1426
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 36 Q-006-1041
Locking Nut M10 96 Q-006-1042
Washer M10 8 Q-006-1043
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 63 Q-006-1120
Hex Head - M10 x 90 mm 28 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 63 Q-006-1181
M8 Washer 32 Q-006-1183
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 2,5 Inch 1 Q-017-1012
