Shelf Tugger Cart – 840 x 1680 mm

Standard flat shelf cart for transporting totes, bins, and boxes.

Technical specifications

Transportation method: Tugger

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Caster size: 8 inch

Caster Type: Polyurethane

More info

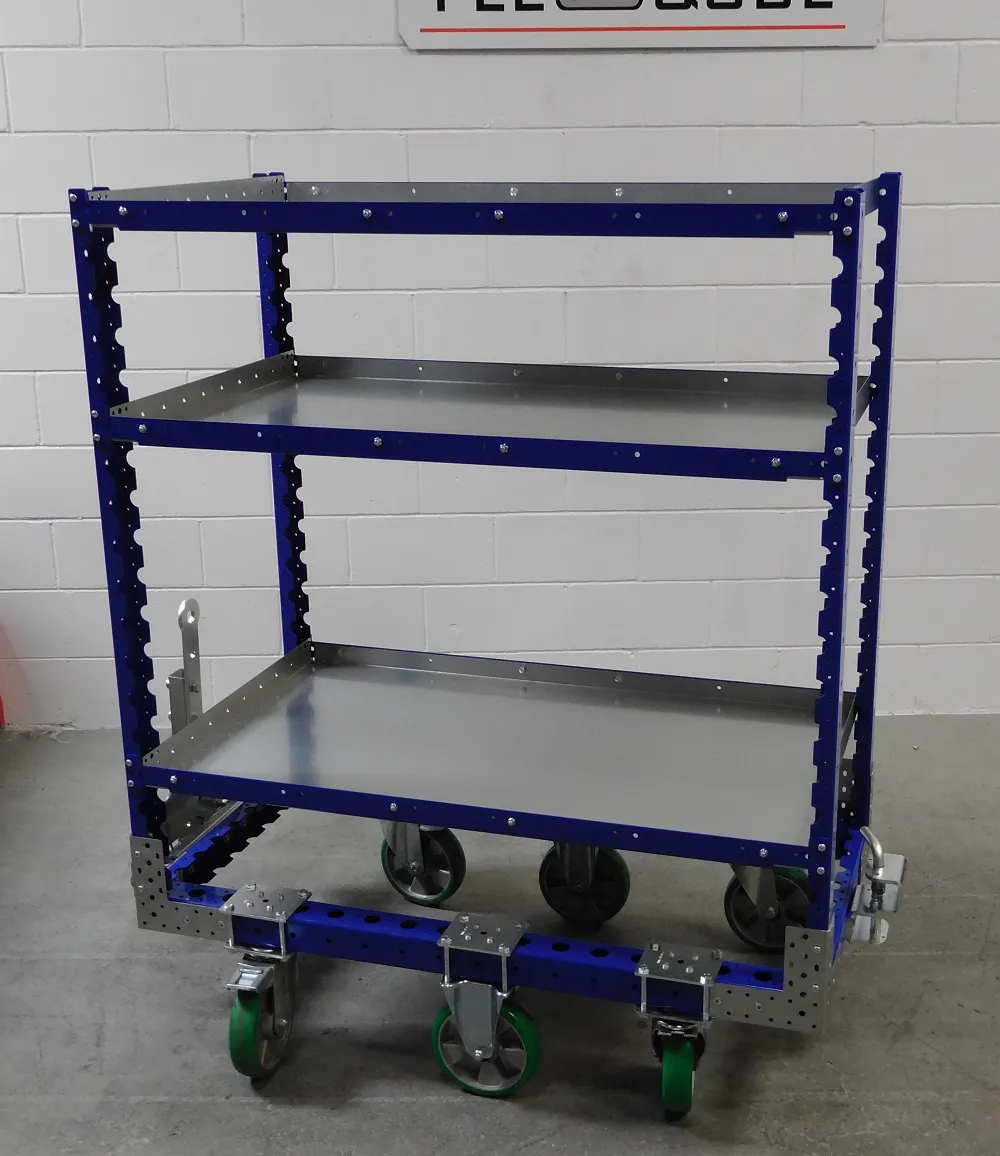

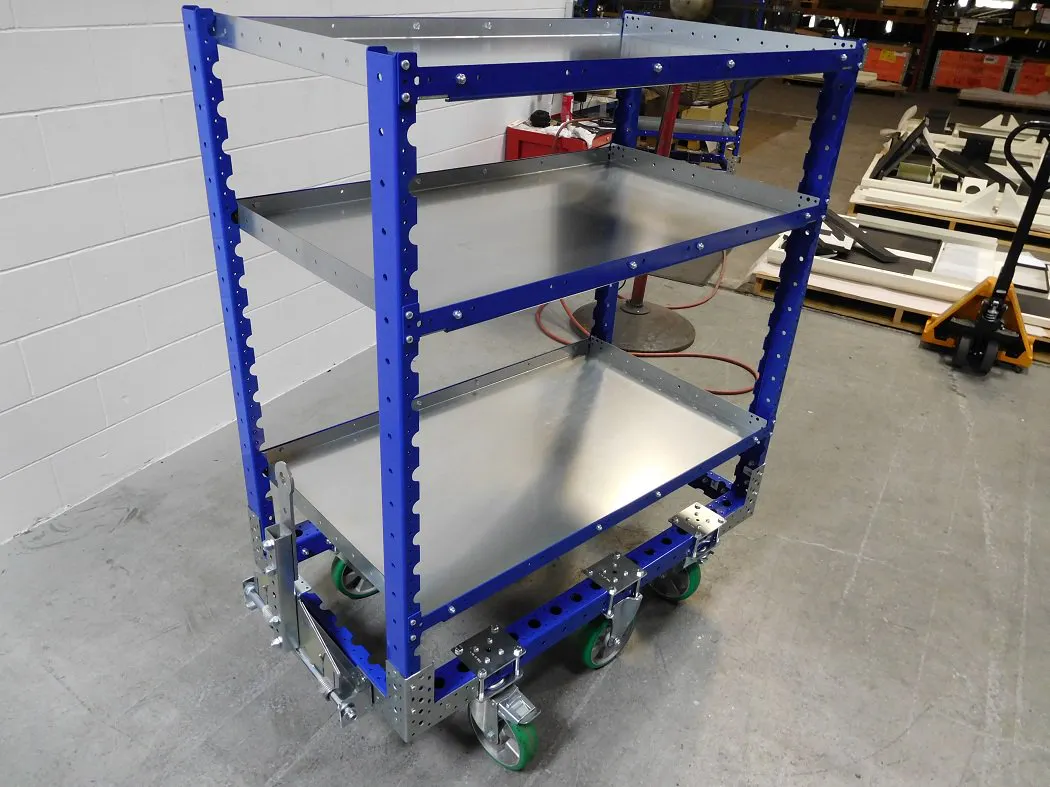

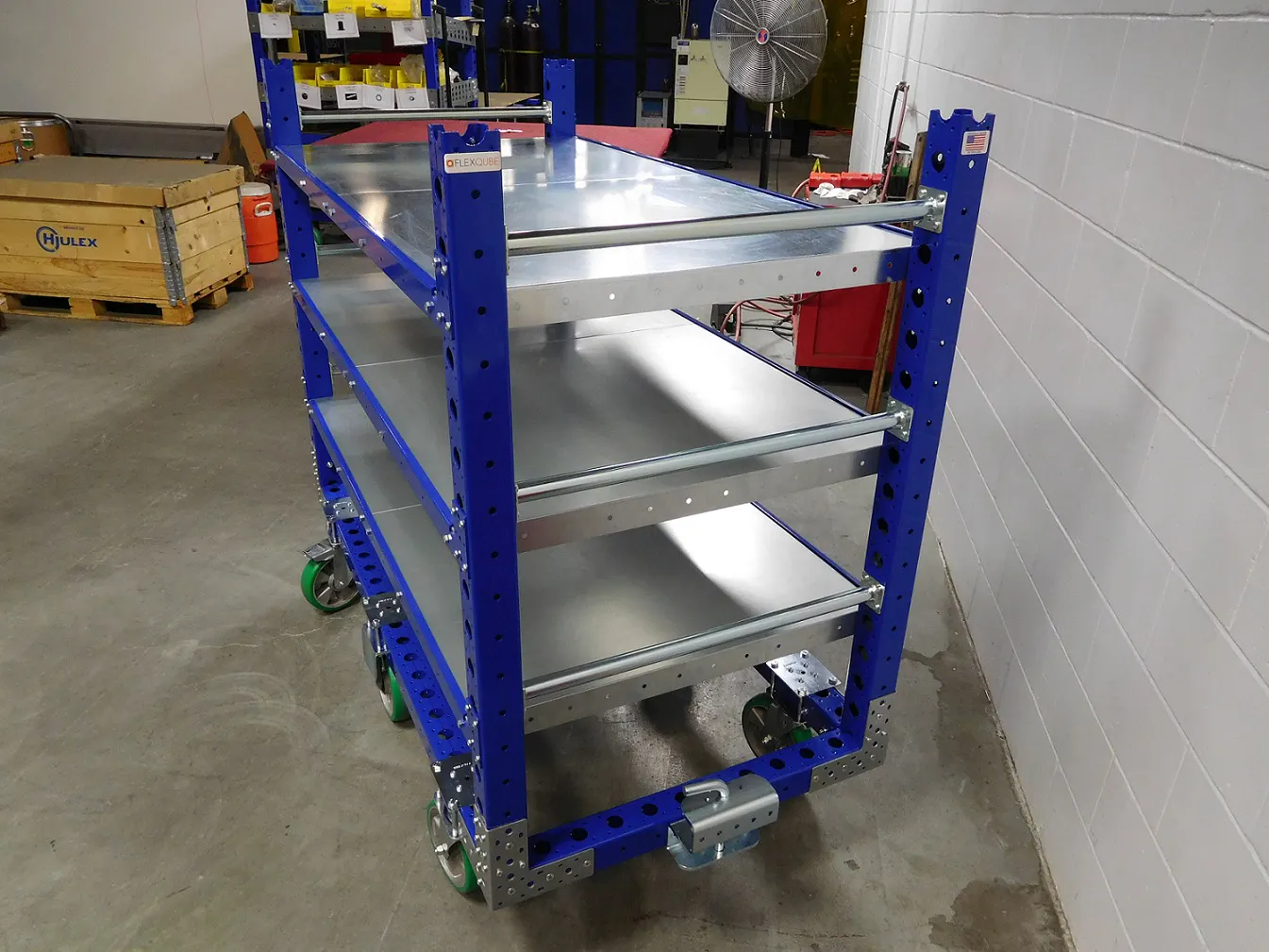

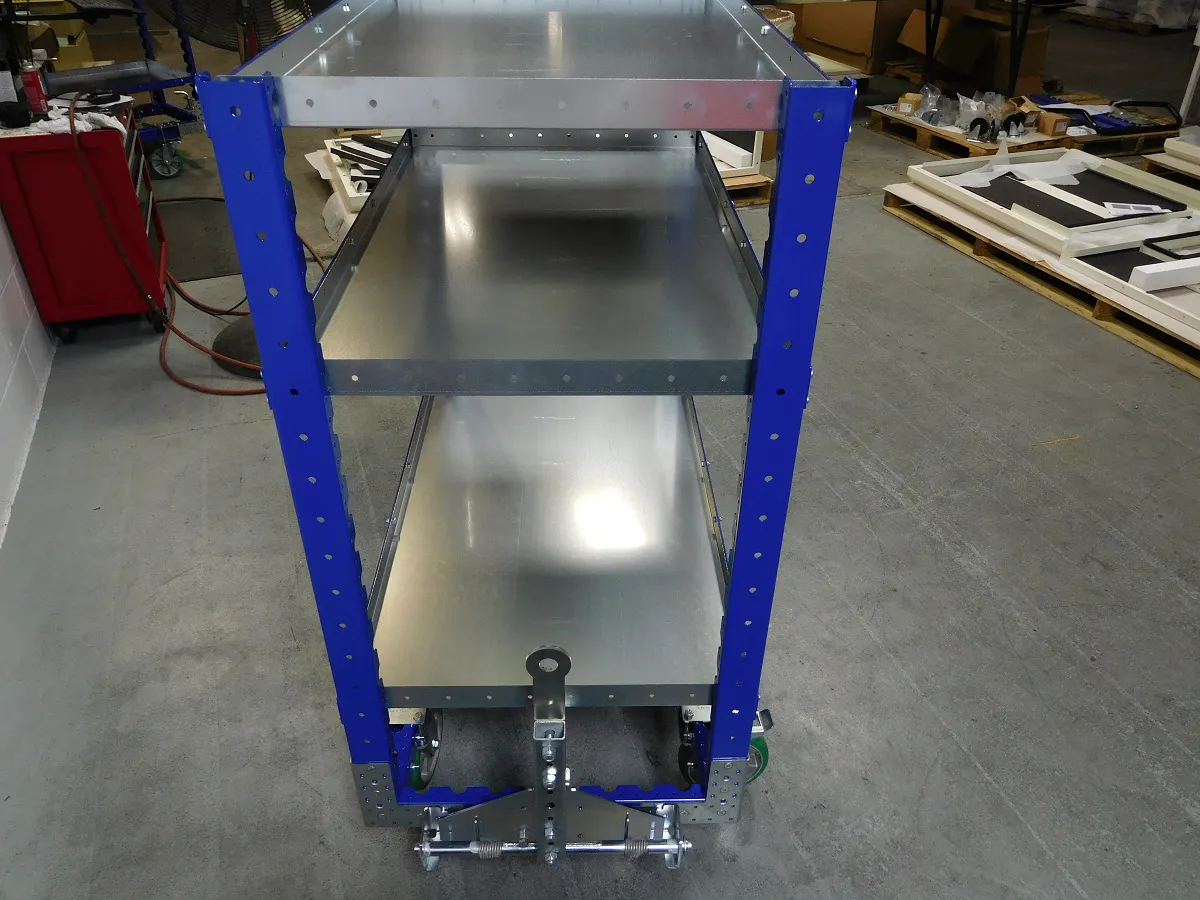

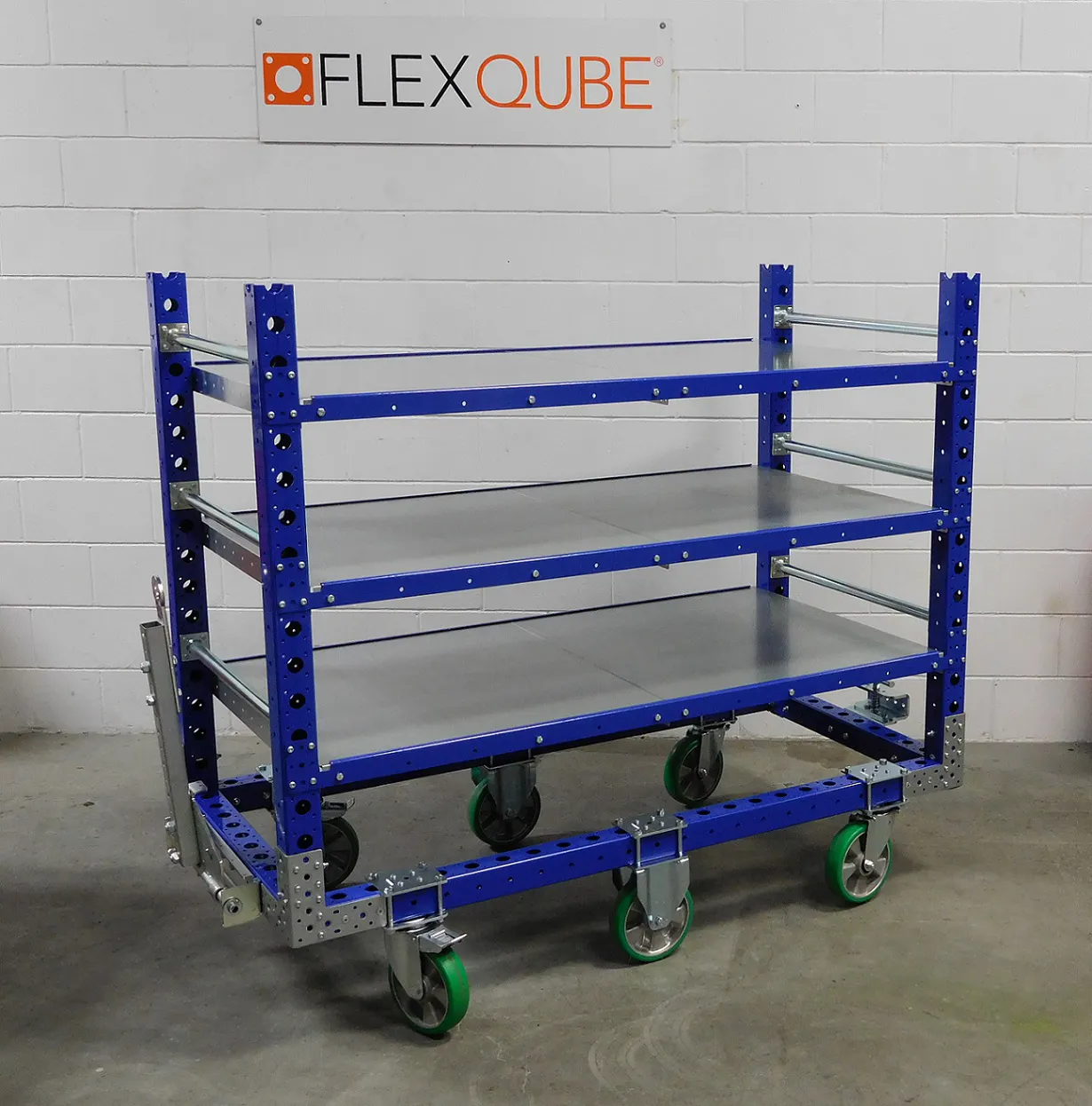

This flat shelf cart is equipped with three standard flat shelves. The shelves are adjustable and they can be easily raised or lowered depending on your materials. This cart has an attached drop pin and hitch tow bar for transportation via a tugger train system. It has six high-quality polyurethane casters for improved tracking when in a tugger train.

Parts included
FlexTube™ 700 mm 6 Q-000-1002
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 57 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 45 Q-006-1120
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 46 Q-006-1181
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 192 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Angled Plate - 1668 mm 6 Q-016-0454
Flat Shelf - 769,5 x 840 mm 6 Q-016-1093
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
