Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Flat Shelf Cart - 1330 x 840 mm
Q-100-0732

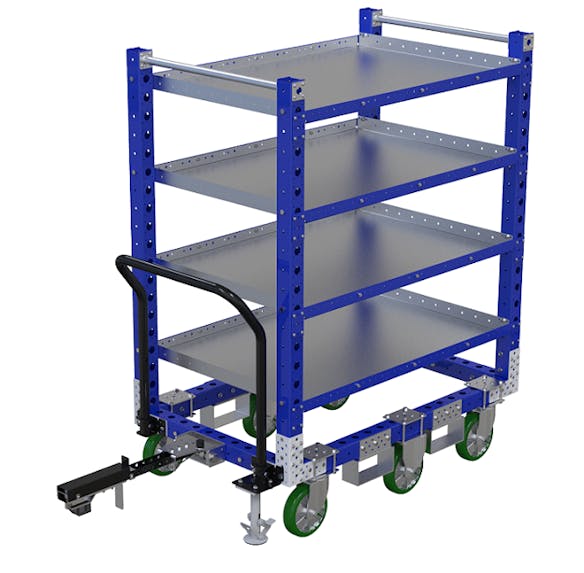

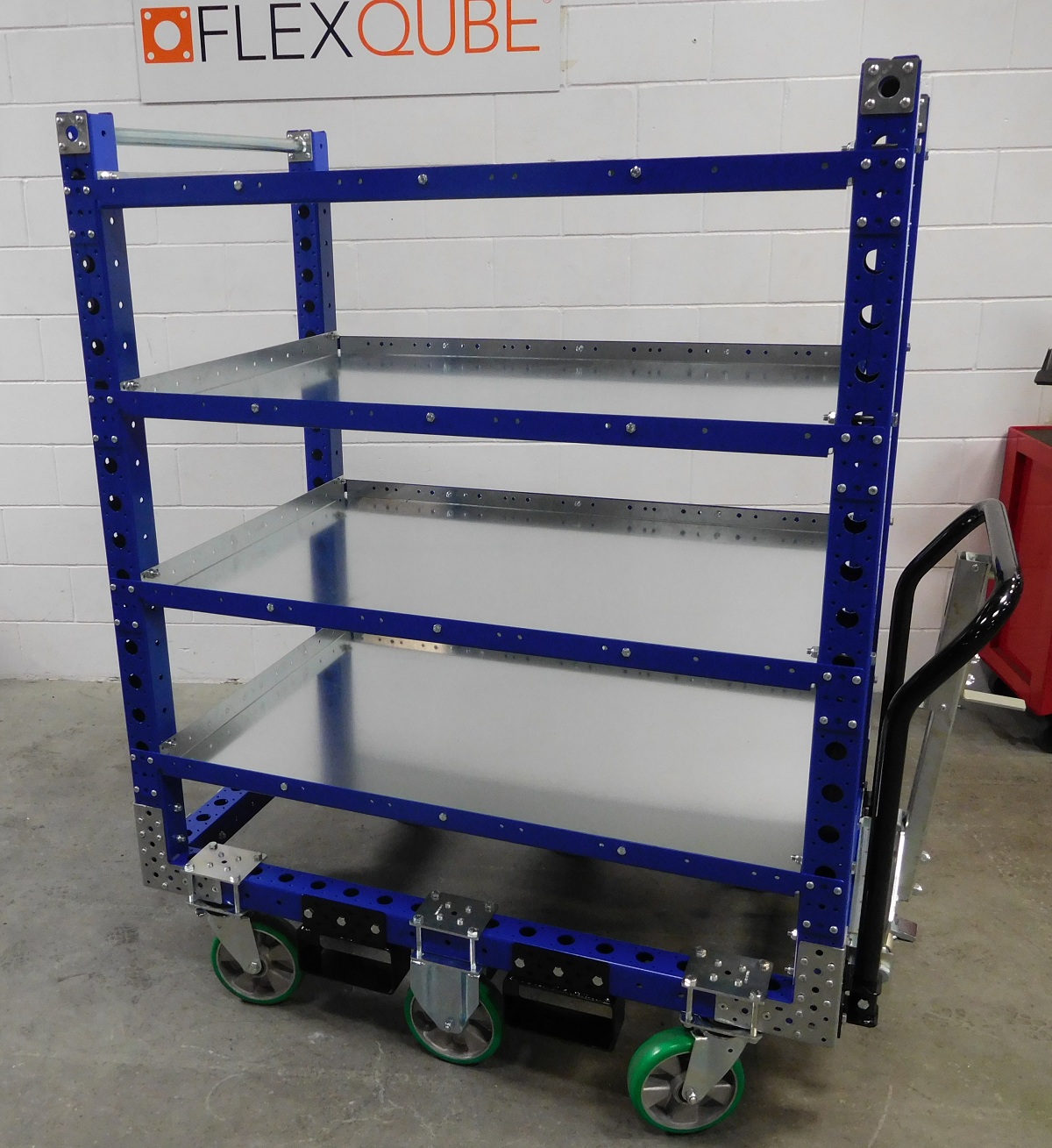

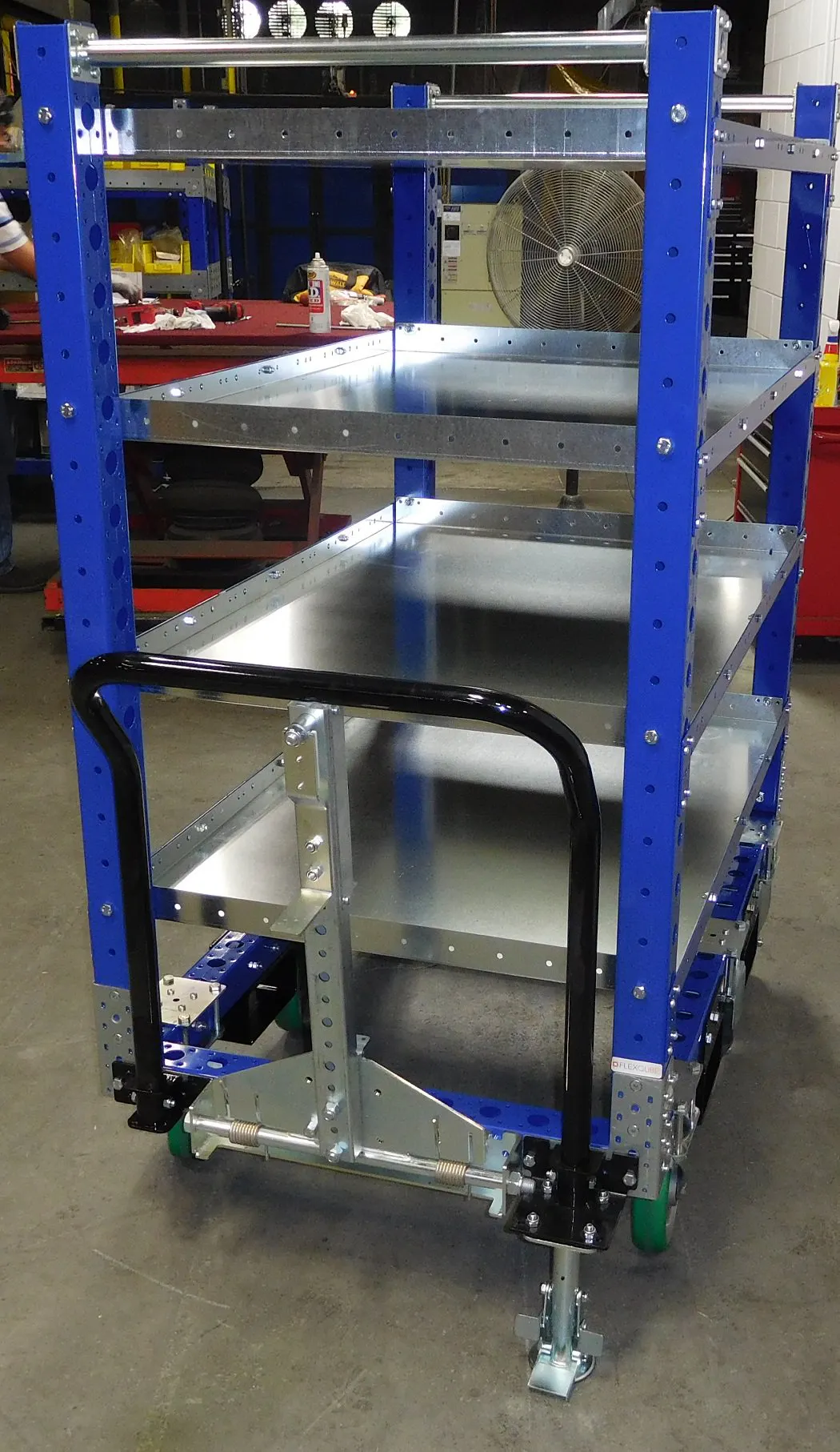

Flat Shelf Cart - 1330 x 840 mm

Standard towable flat shelf cart for bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 52 inch

Levels: 4

Load capacity: 798 lbs

Load Capacity per Level: 198 lbs

Width: 33 inch

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Flat shelf cart with flat shelves that allows for better access into bins and totes. Cart is equipped with fork guides, handlebar as well as floor brake. Also equipped with a foot release tow bar but can be modified with either wire-release tow bar or a drop pin and hitch tow bar.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ - 1400 mm FE 8 Q-001-1502
FlexPlate™ 12 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
27 mm collet - 15 x 2 mm 3 Q-005-0341
Fork Tunnel US - 80 mm 4 Q-005-0431
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 32 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 91 Q-006-1042
Washer M10 8 Q-006-1043
Hex Head - M10 x 95 mm 10 Q-006-1088
Hex Head - M8 x 16 mm 24 Q-006-1120
Hex Head - M10 x 90 mm 48 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 25 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 184 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Flat Shelf - 1189 x 840 mm 4 Q-016-0153
Angled Plate - 1318 mm 8 Q-016-0185
Modular Towbar - 605 mm 1 Q-017-0038
Tow Hinge Module 1 Q-017-0059
Tow Hole 28 mm - Symmetric 1 Q-017-1066
