Flat Shelf Cart -1260 x 840 mm
Flat Shelf Cart -1260 x 840 mm
Flat Shelf Cart -1260 x 840 mm
Flat Shelf Cart -1260 x 840 mm
Flat Shelf Cart -1260 x 840 mm
Q-100-1302

Flat Shelf Cart -1260 x 840 mm

This flat shelf cart is equipped with three flat shelves and is designed to transport bins, totes and boxes.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Levels: 3

Load capacity: 694 lbs

Load Capacity per Level: 231 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

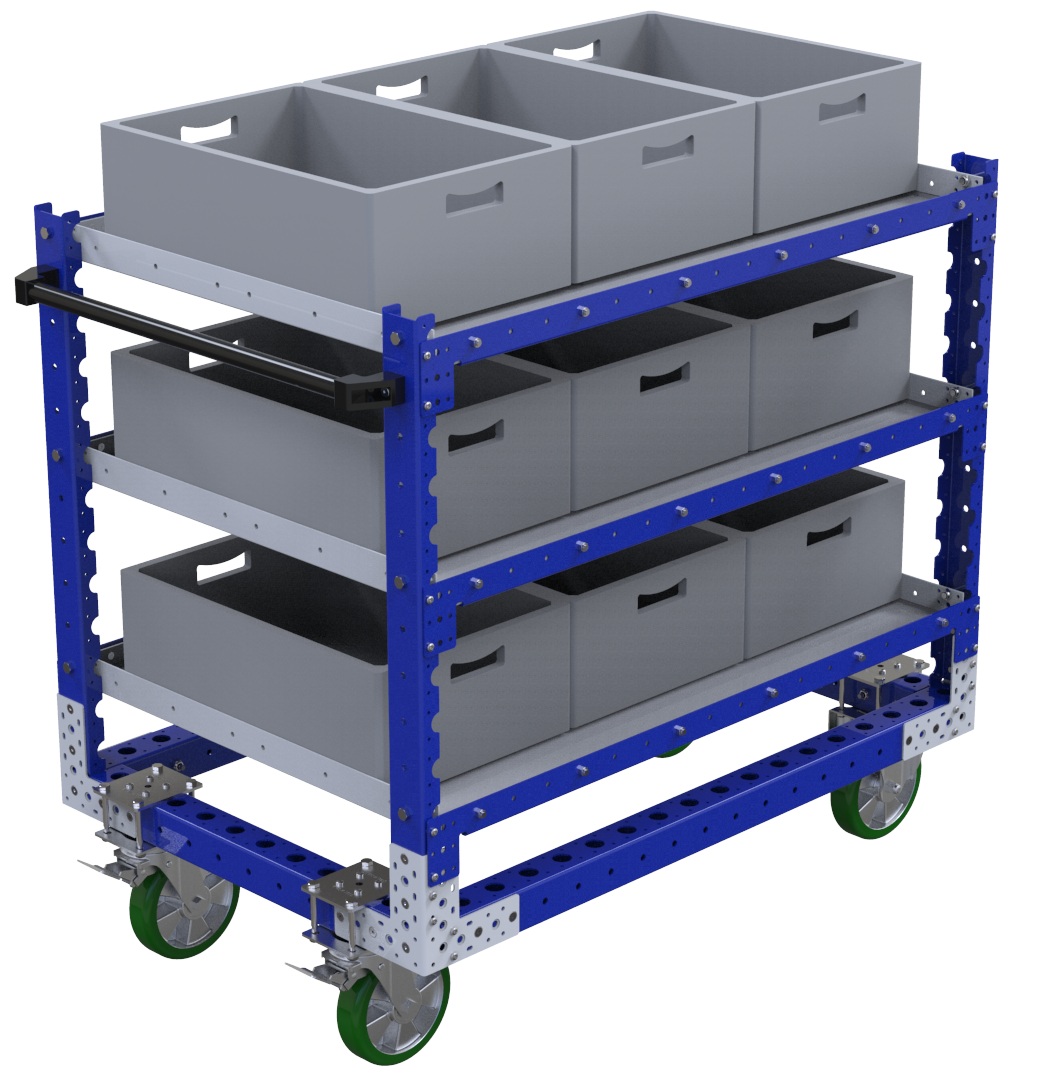

This flat shelf cart is equipped with three flat shelves. It is commonly used for transporting totes, bins and boxes. This cart is equipped with a handlebar and four high-quality polyurethane casters with brakes in two of the swivel casters.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 6 Q-002-1001
FlexPlate™ half 2 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyurethan 200 mm with Brake IP2 2 Q-004-1210
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
Collet - 35 mm 12 Q-005-0028
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 58 Q-006-1042
M8 x 20 mm MELC6S 10.9 Allen Head 12 Q-006-1044
M6 Washer 8 Q-006-1076
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 36 Q-006-1181
M8 Washer 24 Q-006-1183
Hex Head Fully Threaded - M10 x 50 mm 12 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 84 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Flat Shelf - 1190 x 840 mm 3 Q-016-0485
Angled Plate - 1248 mm 6 Q-016-1238
