Q-007-3050

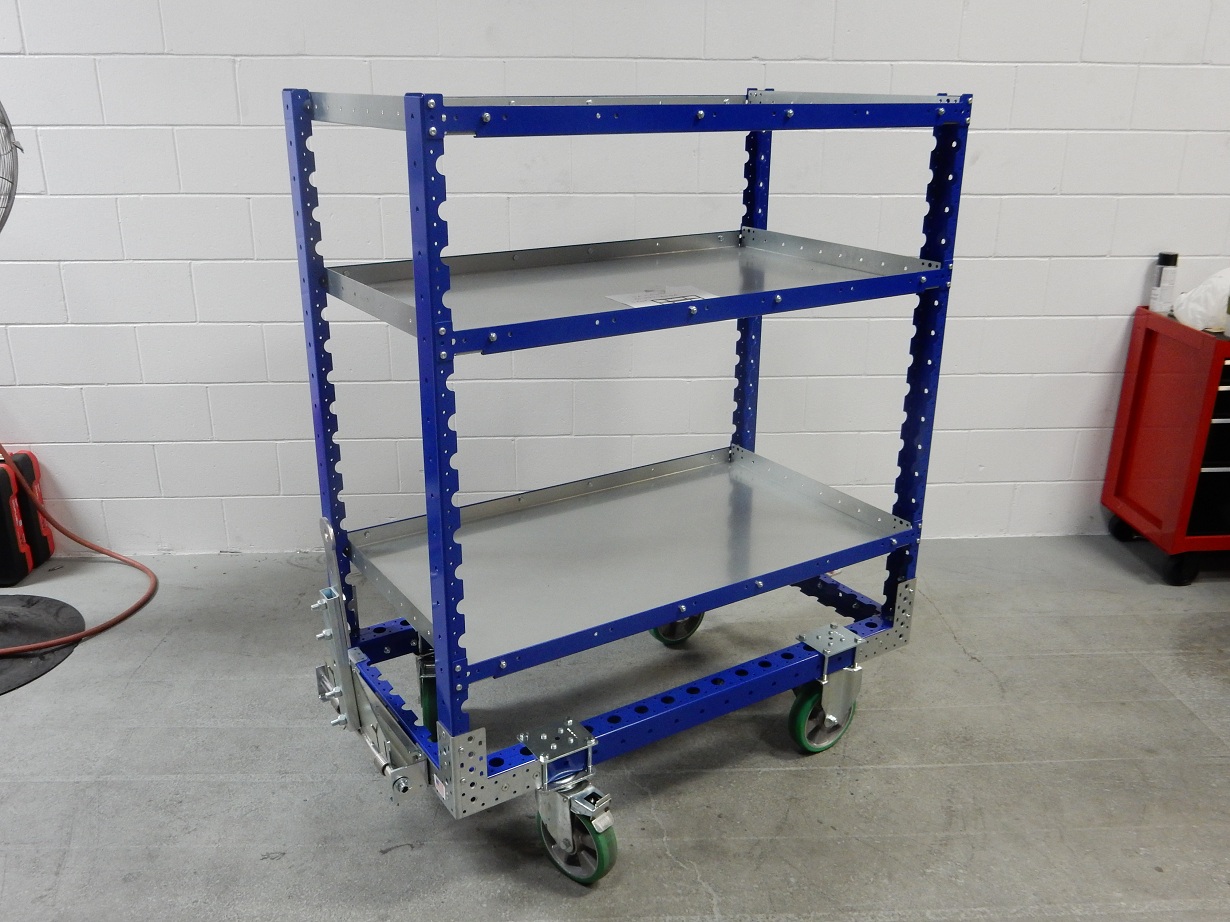

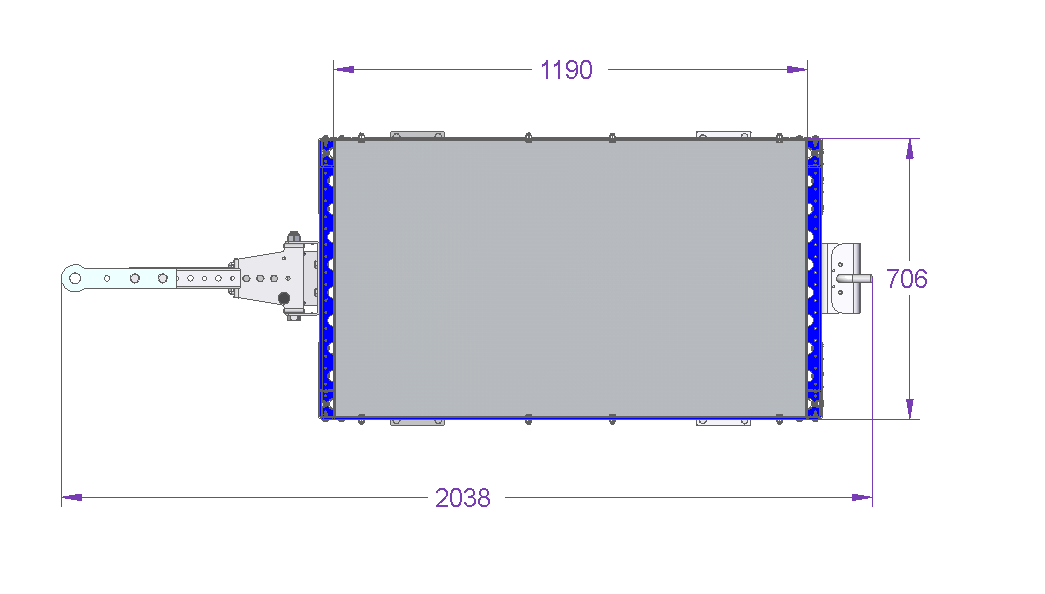

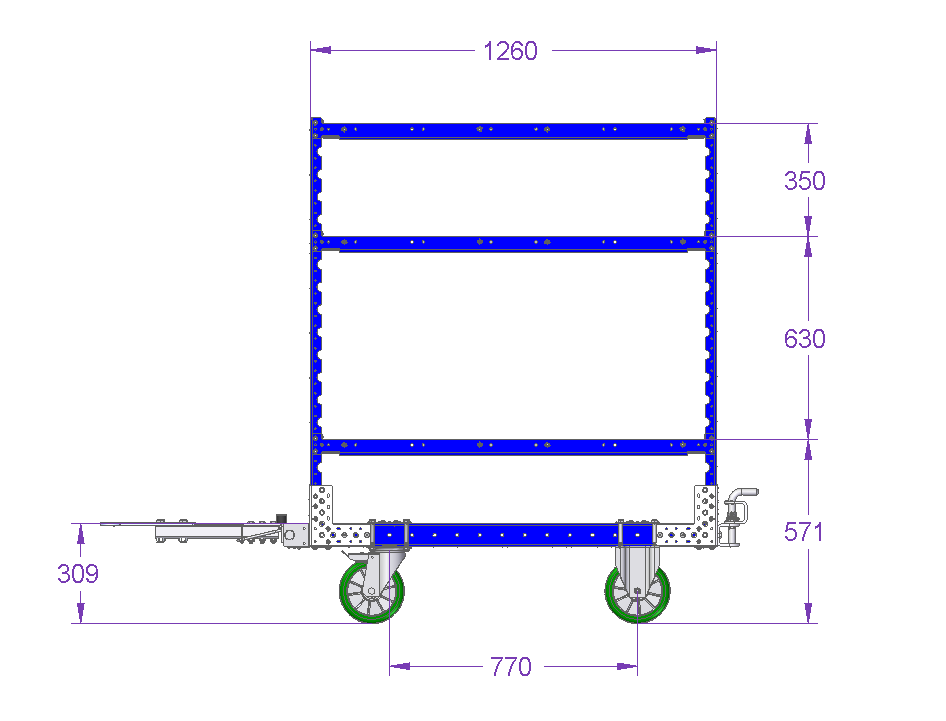

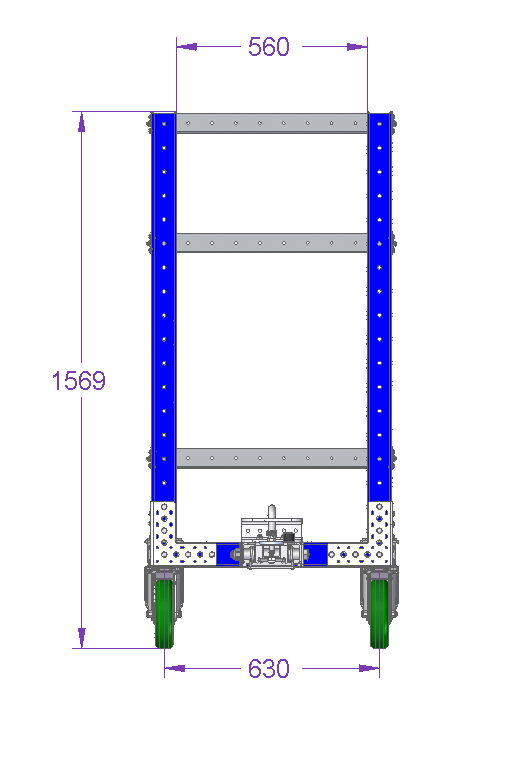

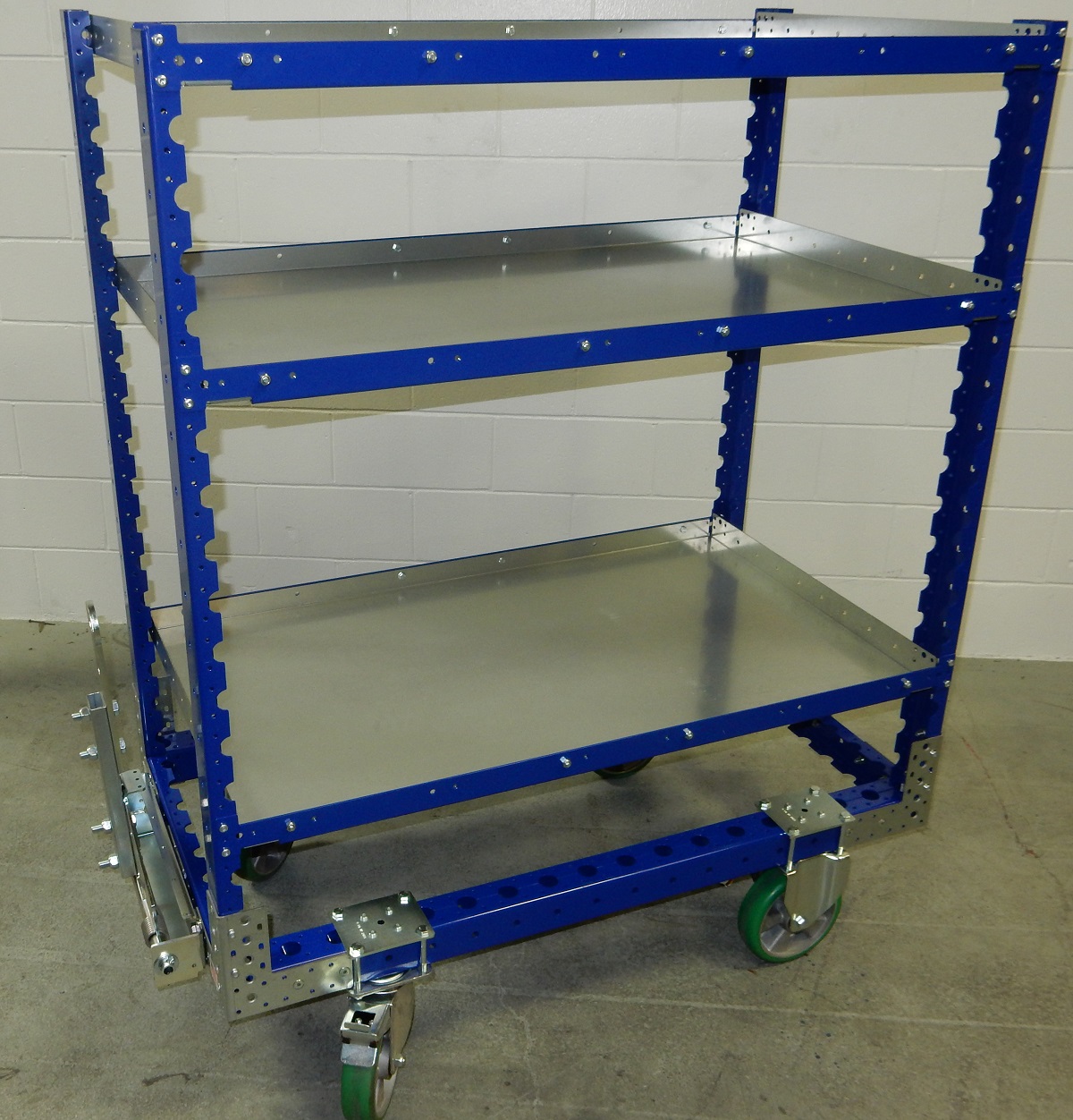

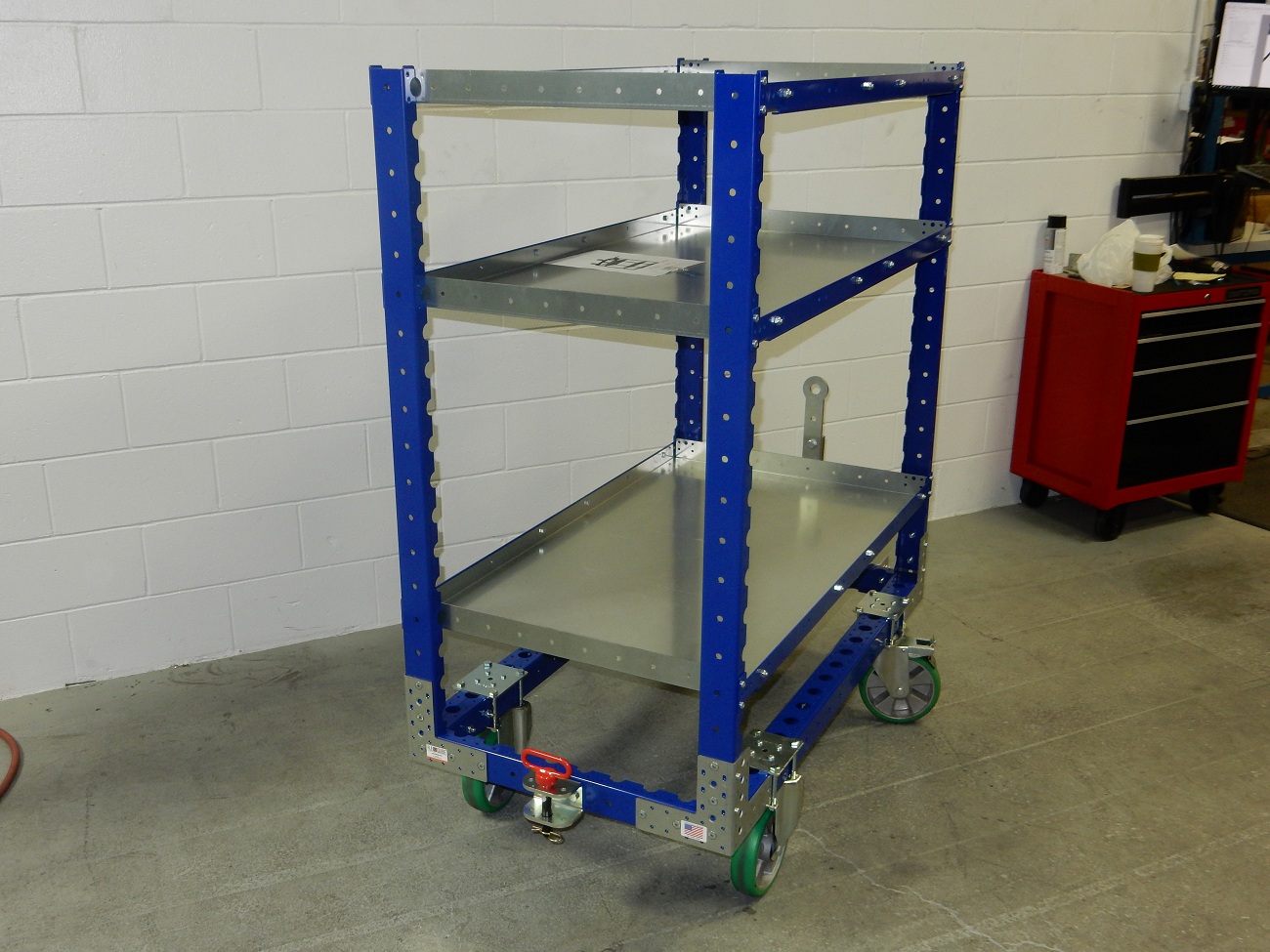

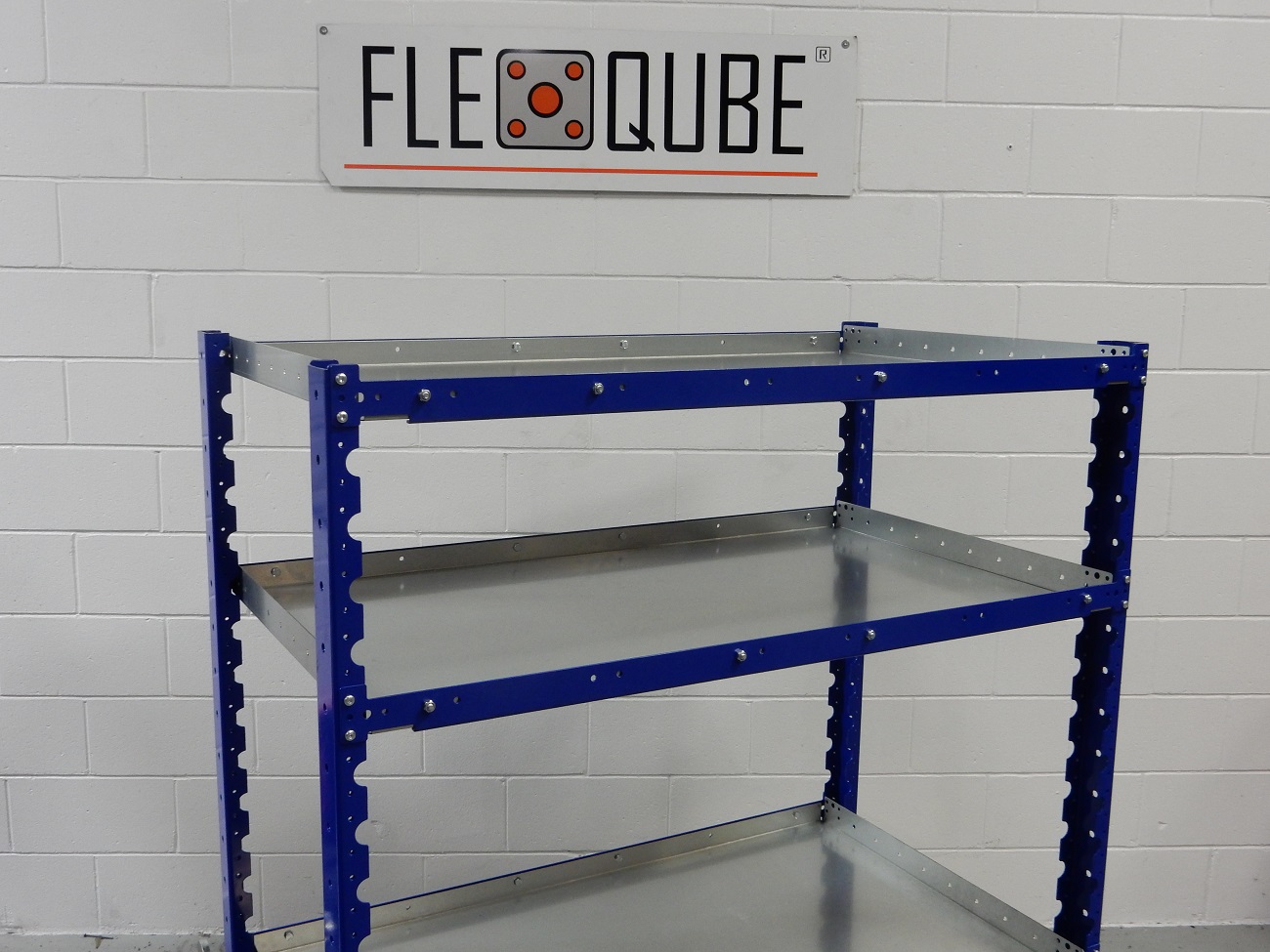

Flat Shelf Cart 1260 x 700 mm

Standard flat shelf cart with three flat shelves for transporting bins, totes and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Tongue and Hitch

Length: 50 inch

Levels: 3

Load capacity: 331 lbs

Load Capacity per Level: 110 lbs

Transportation method: Manual, Tugger

Width: 28 inch

Caster size: 8 inch

Caster Type: Polyurethane

More info

This flat shelf cart was designed for transporting totes, bins and boxes. It is equipped with three flat shelves. The height of these shelves can be easily altered based on your materials. A drop pin and hitch tow bar is also added for transportation via a tugegr train system.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 4 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 200 mm with Brake 2 Q-004-1099
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Spring tow bar 1 Q-005-0450
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 53 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M8 x 16 mm 24 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 25 Q-006-1181
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 76 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Flat Shelf - 1190 x 700 mm 3 Q-016-0009
Shelf Edge Lip - 1250 mm 6 Q-016-1239
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Towing Lip - 28 mm 1 Q-017-1010
