Flat Shelf Cart - 1260 x 1400 mm
Flat Shelf Cart - 1260 x 1400 mm
Flat Shelf Cart - 1260 x 1400 mm
Q-100-1619

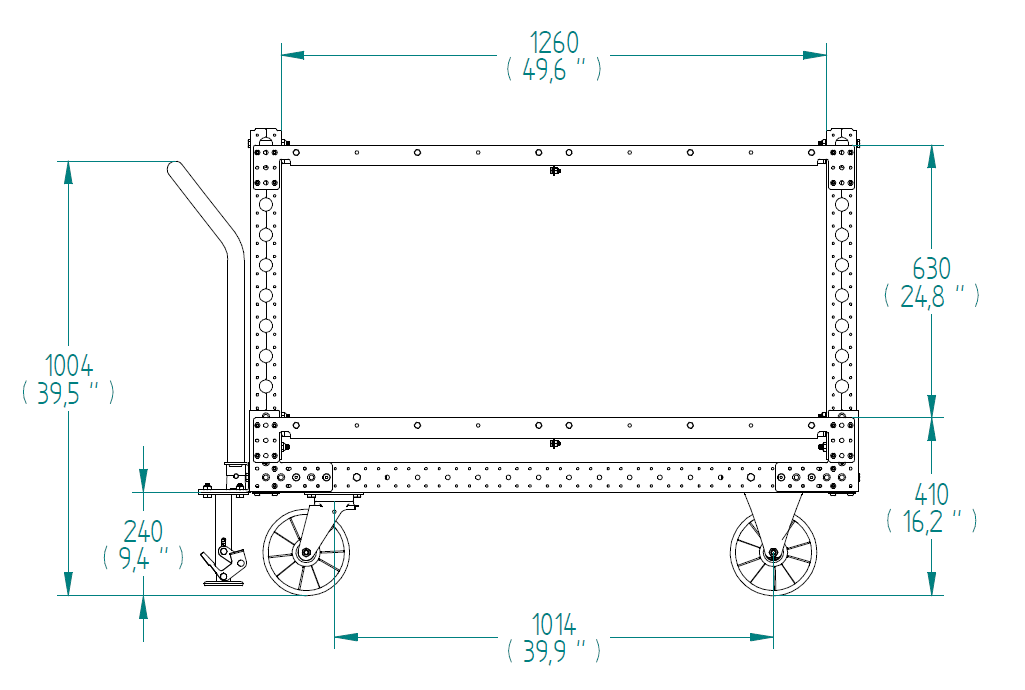

Flat Shelf Cart - 1260 x 1400 mm

Two level shelf cart with floor friction brake, handlebar and nylon casters.

Technical specifications

Category: Flat Shelf

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 55 inch

Levels: 2

Load capacity: 397 lbs

Load Capacity per Level: 198 lbs

Width: 50 inch

Caster size: 8 inch

Caster Type: Nylon

More info

This flat shelf cart is equipped with two shelves commonly used for transportation of totes/bins/boxes or loose components. The cart is equipped with a floor brake, top bent removable handlebar and nylon casters for easy manual operation.

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 4 Q-005-1079
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 32 Q-005-1426
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 70 Q-006-1042
Washer M10 48 Q-006-1043
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M8 x 16 mm 32 Q-006-1120
Hex Head - M10 x 90 mm 12 Q-006-1132
Locking Nut M8 32 Q-006-1181
M8 Washer 24 Q-006-1183
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 72 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Angled plate - 1388 mm 4 Q-016-0140
FlexBeam™ 1330 mm STS 4 Q-020-1330
