Q-100-0215

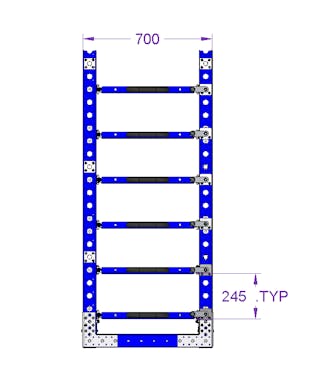

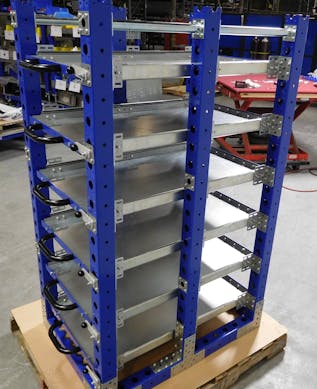

Extendable Shelf Rack 980 x 700 mm

Specially designed custom rack with extendable shelves for smaller materials.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

Category: Extendable Shelf

Length: 39 inch

Width: 28 inch

Load capacity: 1587 lbs

Levels: 6

Load Capacity per Level: 265 lbs

More info

This rack was designed for holding and storing bins, totes and boxes. Each shelf is equipped with a handle and can be extended 100% from the base. The shelves are locked with the shelf lock plate on each side of the cart. Shelf height can easily be adjusted within 70 mm intervals. The solution can be adjusted with more/less shelves.

Parts included
FlexTube™ 350 mm 2 Q-000-1055
FlexTube™ 420 mm 2 Q-000-1270
FlexBeam™ - 1540 mm 12 Q-001-1295
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 6 Q-002-1162
L Bracket Joint 2 Q-005-0031
T-Joint 2 Q-005-0065
Modular attachment plate for telescopic lists 36 Q-005-0149
Spherical Knob 6 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
Locking Handle Plate 6 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 60 Q-006-1018
Locking Nut M10 38 Q-006-1042
Locking Nut M6 132 Q-006-1050
Round Head - M6 x 12 mm 72 Q-006-1051
Hex Head - M8 x 16 mm 48 Q-006-1120
Locking Nut M8 36 Q-006-1181
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 318 Q-006-1384
Low Allen Head - M10 x 16 mm 6 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 18 Q-006-1410
Handle Bar 210 mm M8 6 Q-015-1037
