Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Extendable Shelf Cart - 1400 x 840 mm
Q-100-0669

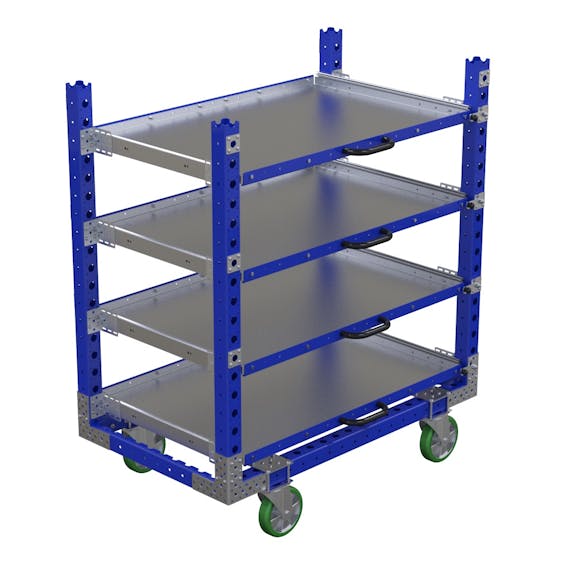

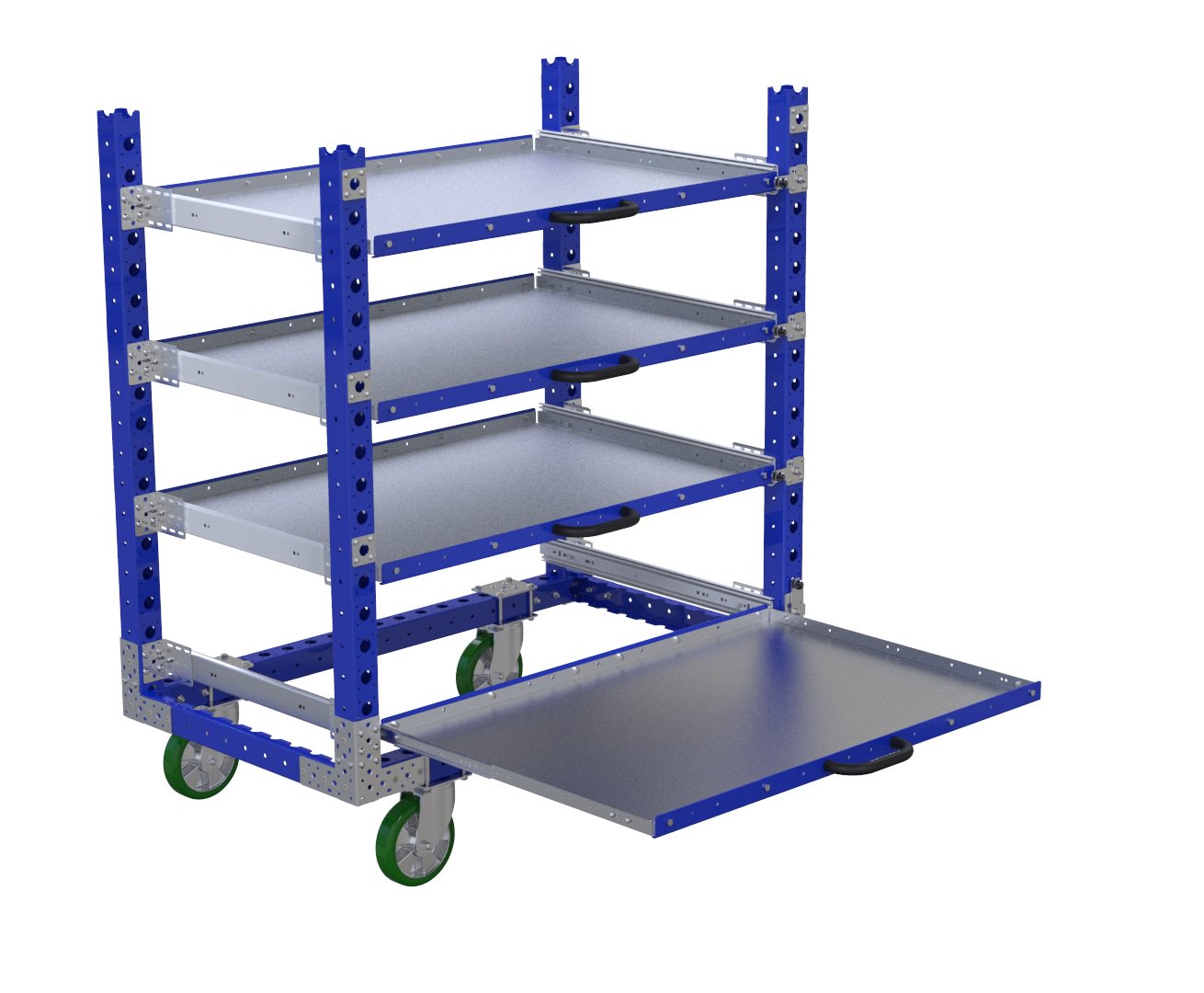

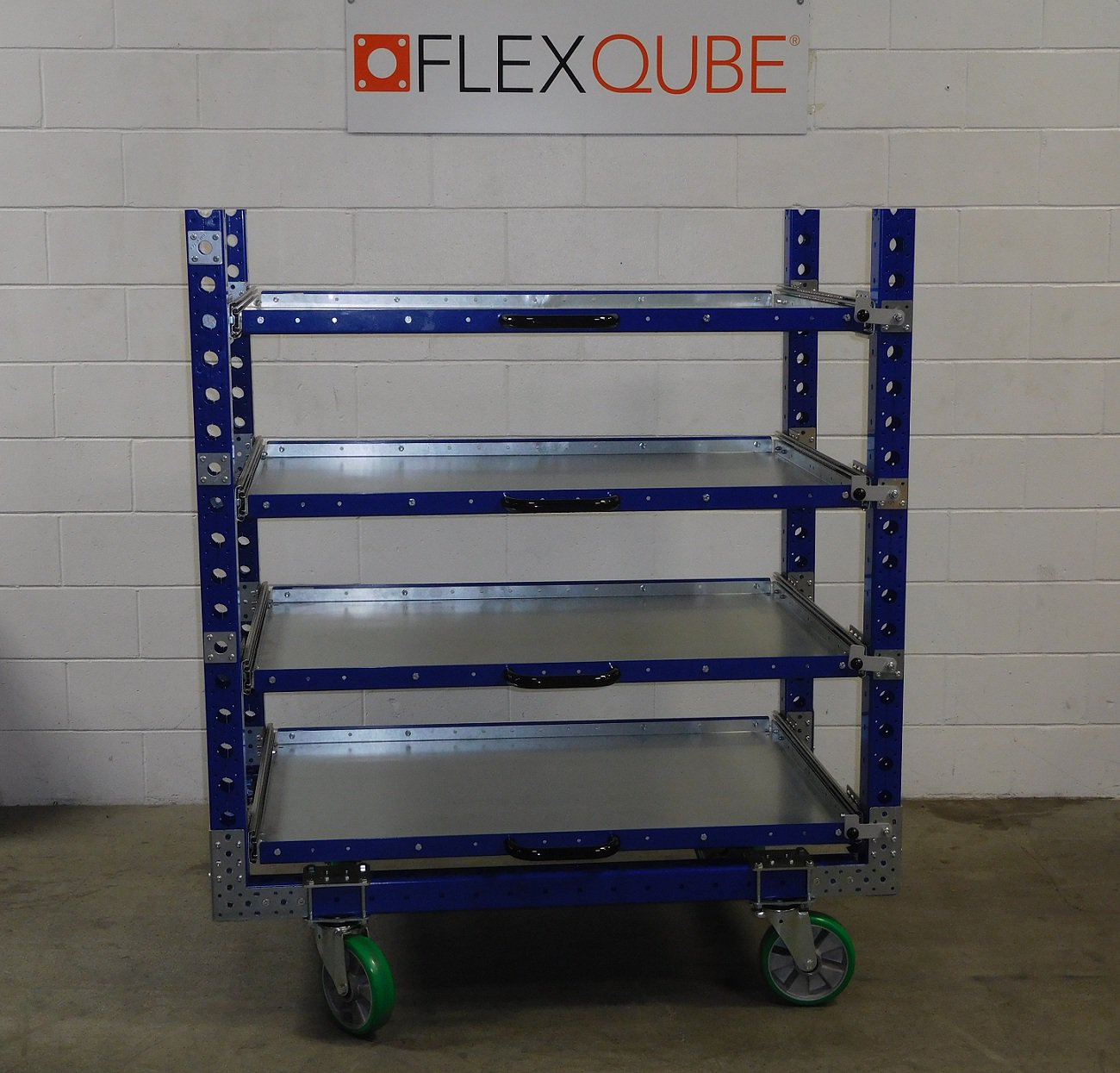

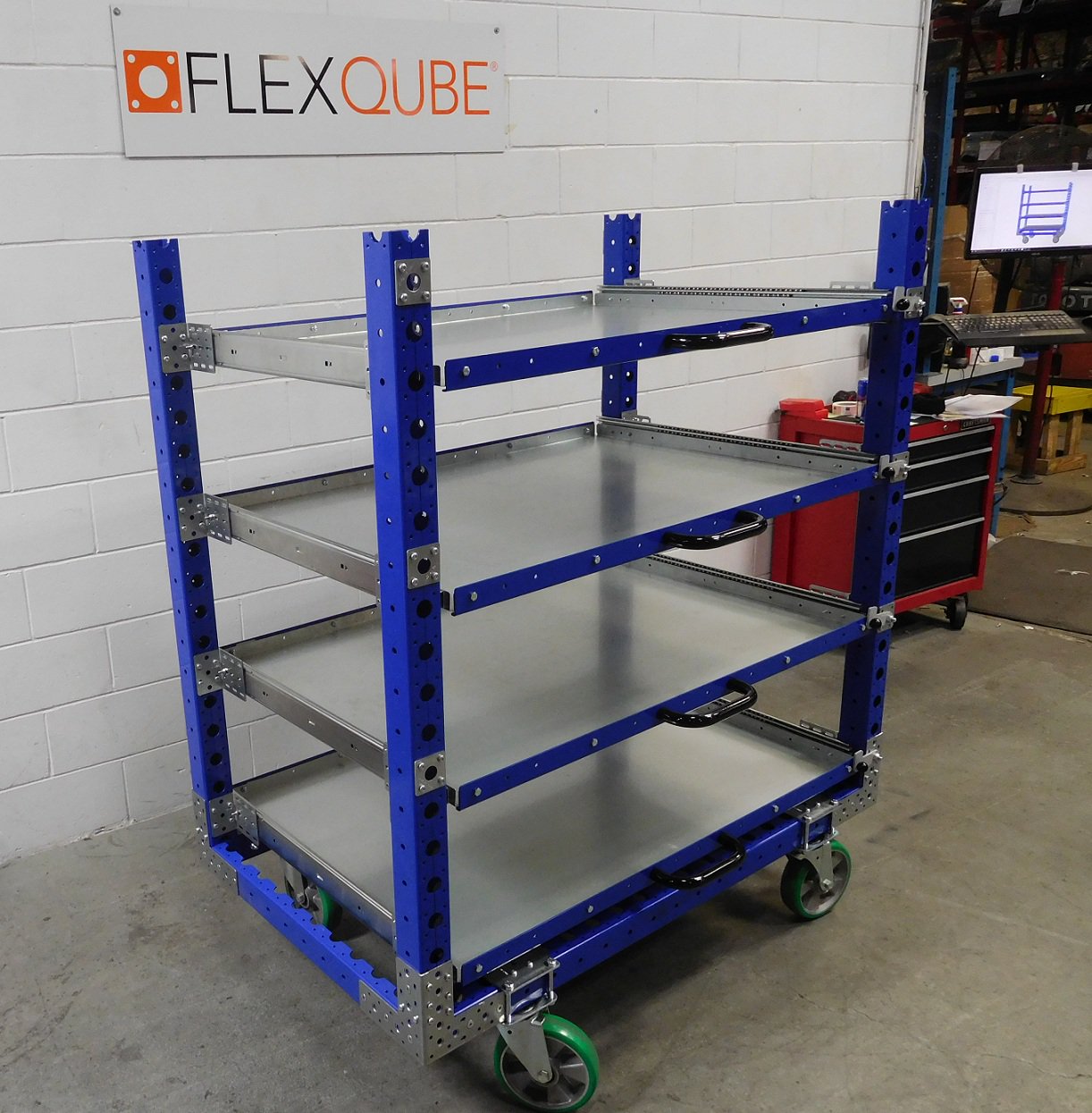

Extendable Shelf Cart - 1400 x 840 mm

Standard extendable shelf cart equipped with four extendable shelves.

Technical specifications

Category: Extendable Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 55 inch

Levels: 4

Load capacity: 882 lbs

Load Capacity per Level: 220 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

Robust extendable shelf cart equipped with four swivel polyurethane casters which allows for smooth manual handling. The cart can be modified with more/less shelves as well as other modules such as various tow bars / handlebars / forktunnels etc.

Parts included
FlexBeam™ - 1330 mm 12 Q-001-1298
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 3 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Modular attachment plate for telescopic lists 16 Q-005-0149
Spherical Knob 4 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Locking Handle Plate 4 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 24 Q-006-1018
Locking Nut M10 44 Q-006-1042
Locking Nut M6 56 Q-006-1050
Round Head - M6 x 12 mm 32 Q-006-1051
Hex Head - M8 x 16 mm 48 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 40 Q-006-1181
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 172 Q-006-1384
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
Handle Bar 210 mm M8 4 Q-015-1037
Telescopic Shelf - 1221 x 830 mm 4 Q-016-0070
Angled plate for telescopic - 1210 mm 8 Q-016-0072
