E-frame compatible Shelf Cart for Totes and Bins
Totes Cart for E-frame
E-frame compatible Shelf Cart for Totes and Bins
Q-100-0240

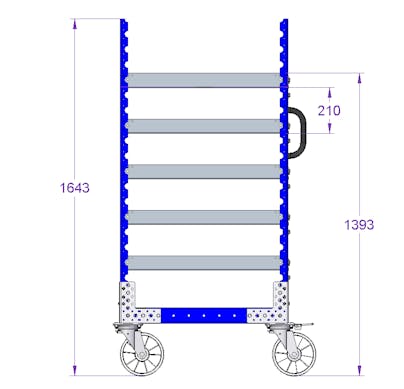

E-frame compatible Shelf Cart for Totes and Bins

Shelf cart designed to fit the STILL LiftRunner Tugger Train System.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 36 inch

Levels: 5

Load capacity: 500 lbs

Load Capacity per Level: 99 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This cart is STILL E-frame compatible. Its designed to carry totes and bins. All shelves are put in ergonomic position for the operator. The shelves are 770 x 700 mm ( 30.3 x 30.3 inch) and can each handle a load of 50 kg (110 lbs). The shelves are open on the rear to allow for easier loading.

The cart is equipped with four swivel casters out of which two are equipped with brakes in a fixed direction. The handlebars on the cart is for moving the cart the short distance from the tugger train to its position.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 770 mm FE 2 Q-001-1406
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Nylon Fix Brake - 200 mm 2 Q-004-1112
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M10 x 25 mm 20 Q-006-1041
Locking Nut M10 56 Q-006-1042
Hex Head - M8 x 16 mm 24 Q-006-1120
Locking Nut M8 20 Q-006-1181
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 66 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flat Shelf - 770 x 770 mm 5 Q-016-0102
Angled Plate - 898 mm 5 Q-016-0105
