Compartment Cart - 1260 x 1330 mm
Compartment Cart - 1260 x 1330 mm
Compartment Cart - 1260 x 1330 mm
Compartment Cart - 1260 x 1330 mm
Compartment Cart - 1260 x 1330 mm
Q-100-1405

Compartment Cart - 1260 x 1330 mm

Compartment cart designed to house and transport panels, frames or big flat parts.

Technical specifications

Category: Specialized Carts

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 52 inch

Load capacity: 1202 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

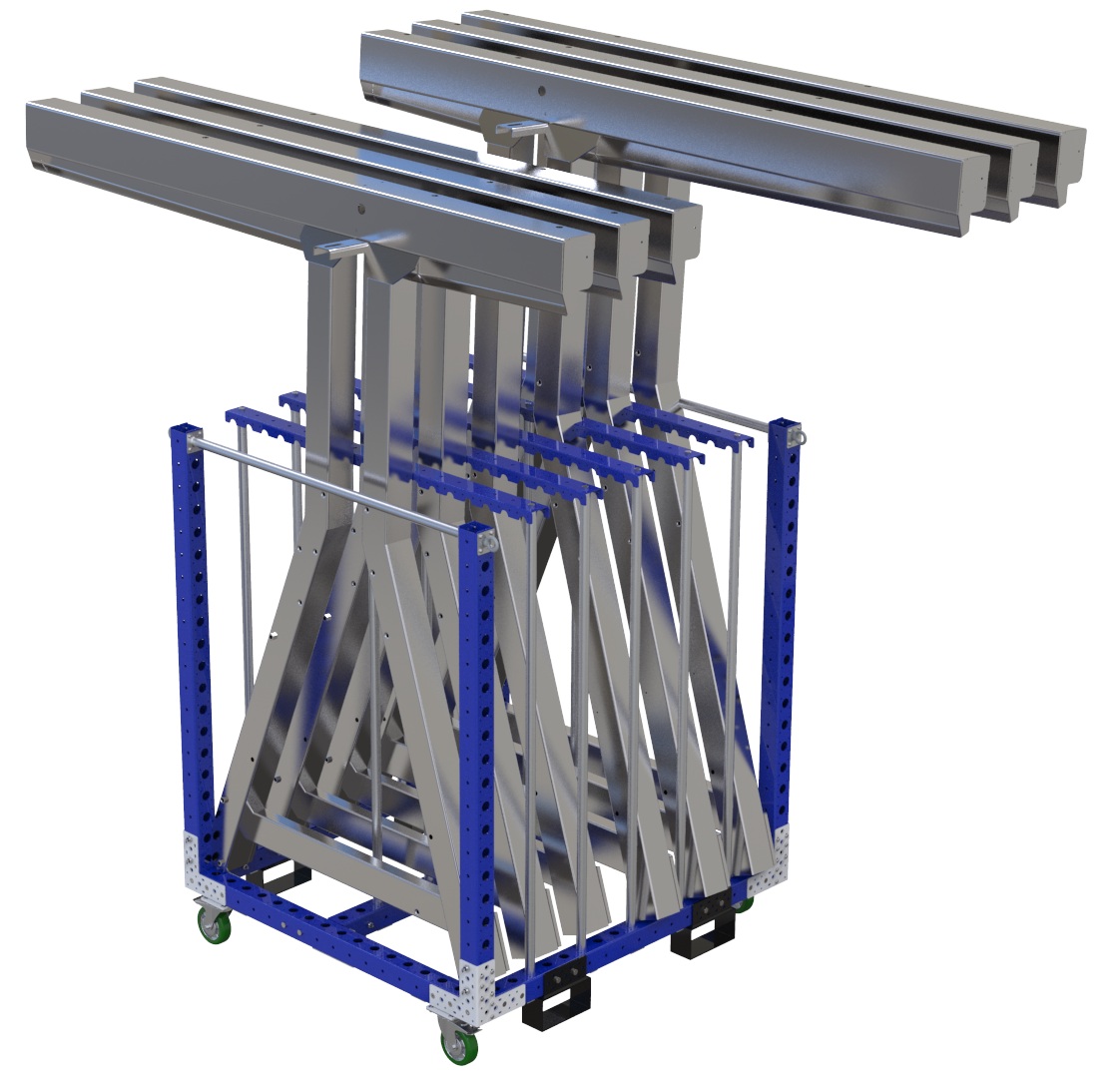

This big compartment cart is designed to hold and transport large parts like panels, frames, etc. Using the tubes & beams in the middle structures lets them act as dividers. The cart is equipped with fork pockets for lifting and transportation via forklift and has four high-quality polyurethane casters attached.

Parts included
FlexTube™ 1120 mm 2 Q-000-1258
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 7 Q-001-1500
FlexBeam™ - 1400 mm FE 8 Q-001-1502
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 11 Q-002-1162
FlexPlate™ half 8 Q-002-1369
L Bracket Joint 2 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
Spring Threaded Tube Connectors 30 Q-005-0469
Triangle Joint 2 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 32 Q-005-1426
Lifting eyebolts DIN 580-M10-NI 4 Q-006-0041
Locking Nut M10 48 Q-006-1042
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 16 Q-006-1181
Hex Head - M10 x 40 15 Q-006-1208
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 126 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
