Cart with Hangers - 490 x 700 mm
Cart with Hangers - 490 x 700 mm
Cart with Hangers - 490 x 700 mm
Q-100-1813

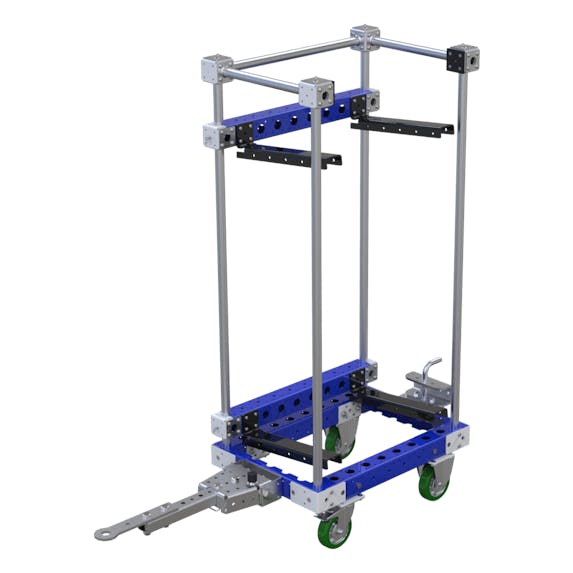

Cart with Hangers - 490 x 700 mm

Cart with two levels of hangers. Also has a towbar and Polyurethane casters.

Technical specifications

Category: Hanging Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Tongue and Hitch

Width: 19 inch

Length: 28 inch

Load capacity: 141 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Boxes, Misc parts, Reels

More info

This cart is equipped with two levels of hangers that can hold different materials like reels, boxes, parts, etc. The height of the hangers can be adjusted using the FlexQube concept. This cart can utilize a drop pin towbar, 125 mm diameter Polyurethane casters, and has swivel casters attached with brakes.

Parts included
FlexTube™ 350 mm 2 Q-000-1055
FlexTube™ 560 mm 1 Q-000-1182
FlexQube 12 Q-001-1078
FlexPlate™ 14 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 8 Q-002-1162
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Spring Threaded Tube Connectors 8 Q-005-0469
Heavy Duty Hanger - 380 mm 4 Q-005-0514
EPDM - 70 x 70 mm 2 Q-005-0534
64 mm FlexBeam™ Collet 8 Q-005-1426
Allen Head - M6 x 30 mm 4 Q-006-1012
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 22 Q-006-1042
Hex Head - M10 x 90 mm 4 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 8 Q-006-1385
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 630 mm 8 Q-020-0630
Outer Tube (No Plate) - 1330 mm 4 Q-025-1330
