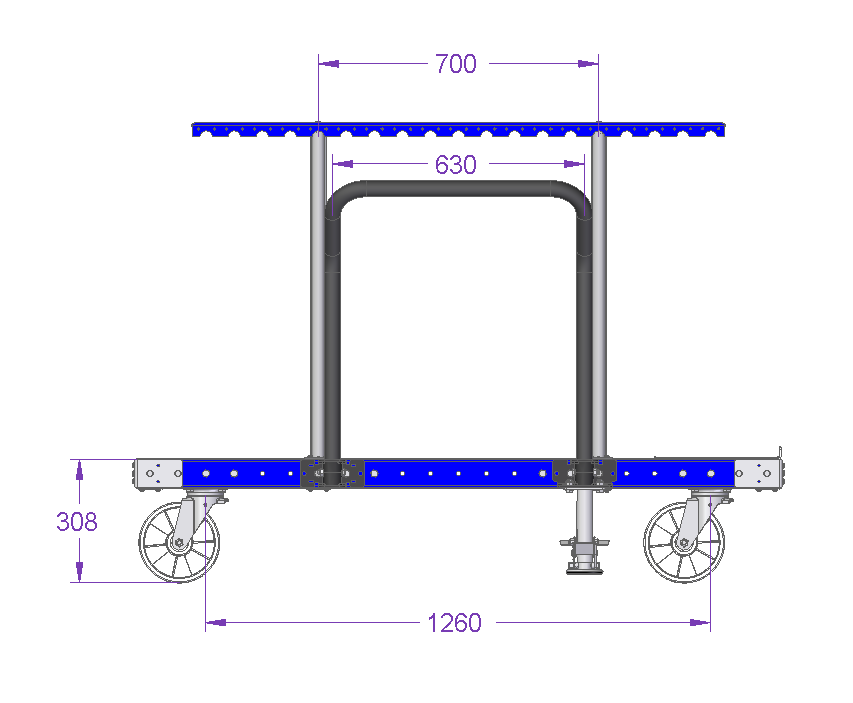

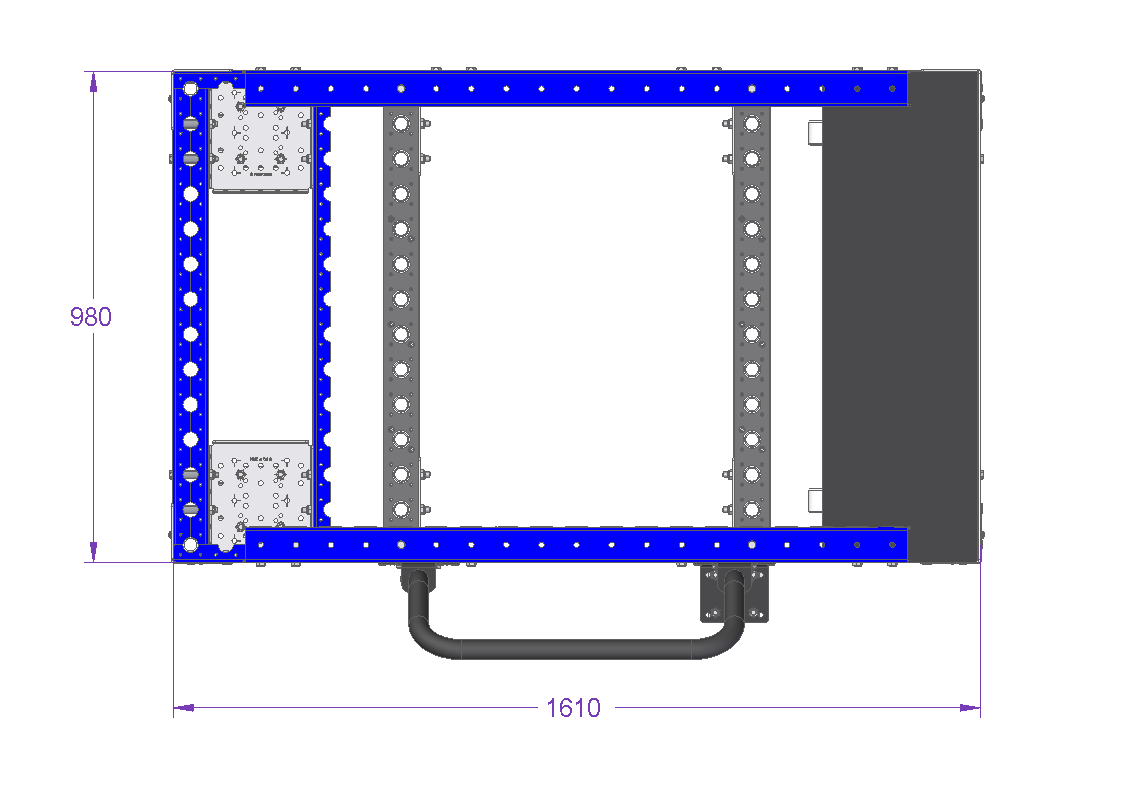

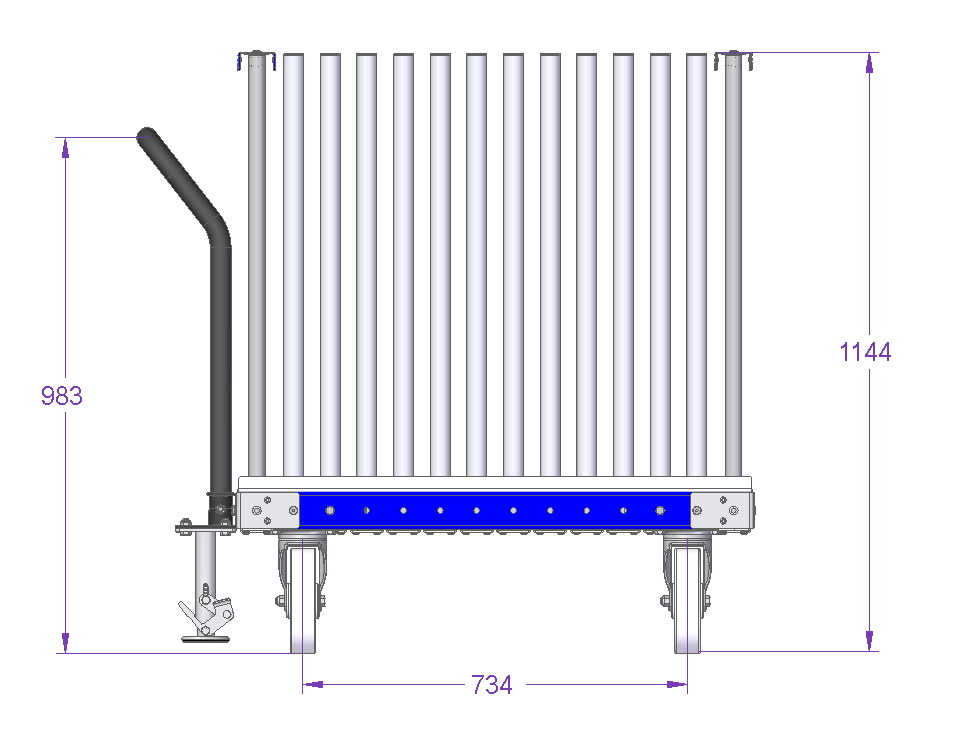

Cart For Wall Panels - 1610 x 980 mm
Cart For Wall Panels - 1610 x 980 mm
Cart For Wall Panels - 1610 x 980 mm
Cart For Wall Panels - 1610 x 980 mm
Q-100-0809

Cart For Wall Panels - 1610 x 980 mm

This cart was specially designed for transporting different panels.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 63 inch

Width: 39 inch

Load capacity: 496 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

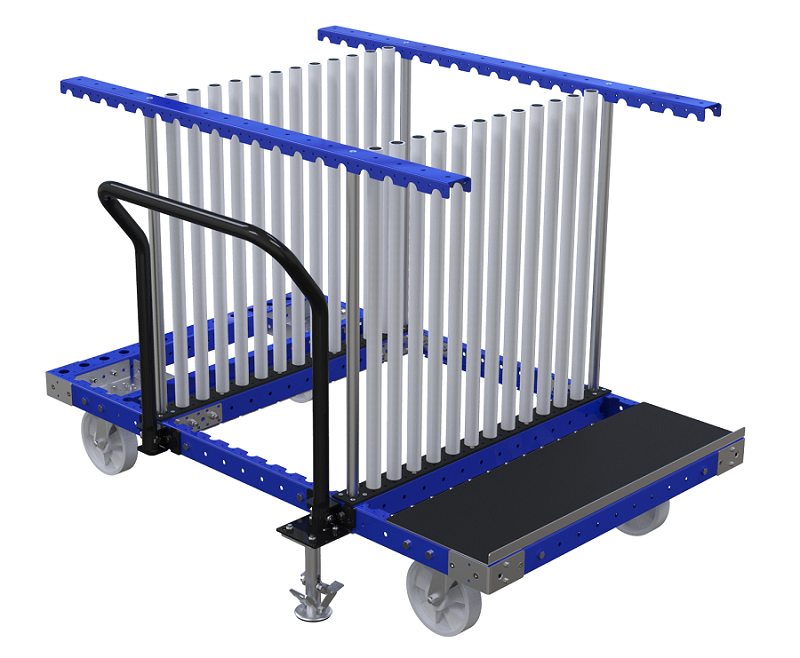

This custom cart is a perfect example of you can customize the FlexQube concept to match your needs and materials. This cart is designed to hold wall panels upright in between the tubes. This cart is also equipped with an ergonomic handlebar to make it easier for the operators to push the cart.

Parts included
Flextube (One Plate) - 910 mm 28 Q-000-0151
FlexBeam™ 910 mm 10 Q-001-1304
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexBeam™ - 1610 mm FE 2 Q-001-1505
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
RubberStrip with cutouts - 980 x 70 mm 2 Q-005-0251
Spring Threaded Tube Connectors 4 Q-005-0469
Rubber Carpet - 980 x 310 mm 1 Q-005-0539
Rubber Tube - 831 mm 24 Q-005-0540
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M10 x 25 mm 52 Q-006-1041
Locking Nut M10 72 Q-006-1042
Hex Head - M10 x 90 mm 4 Q-006-1132
Hex Head - M10 x 20 mm 2 Q-006-1232
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 62 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate - 980 x 315 mm 1 Q-016-0388
