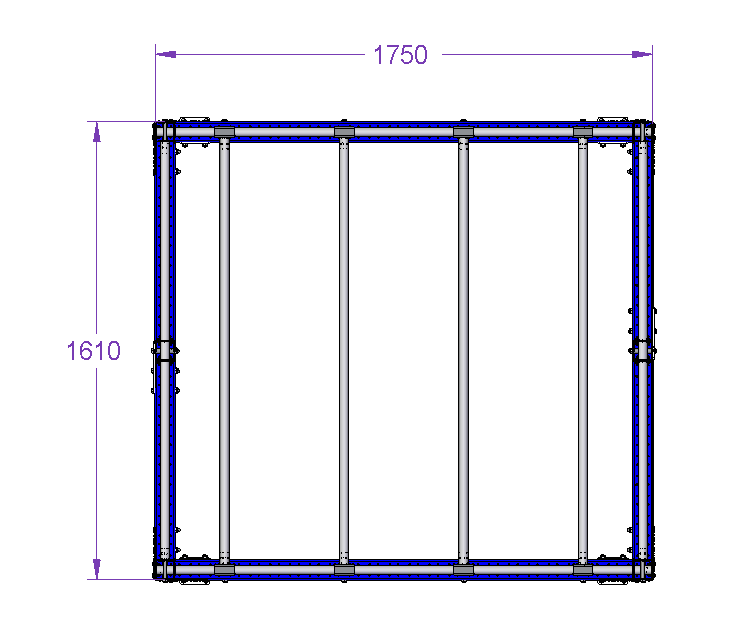

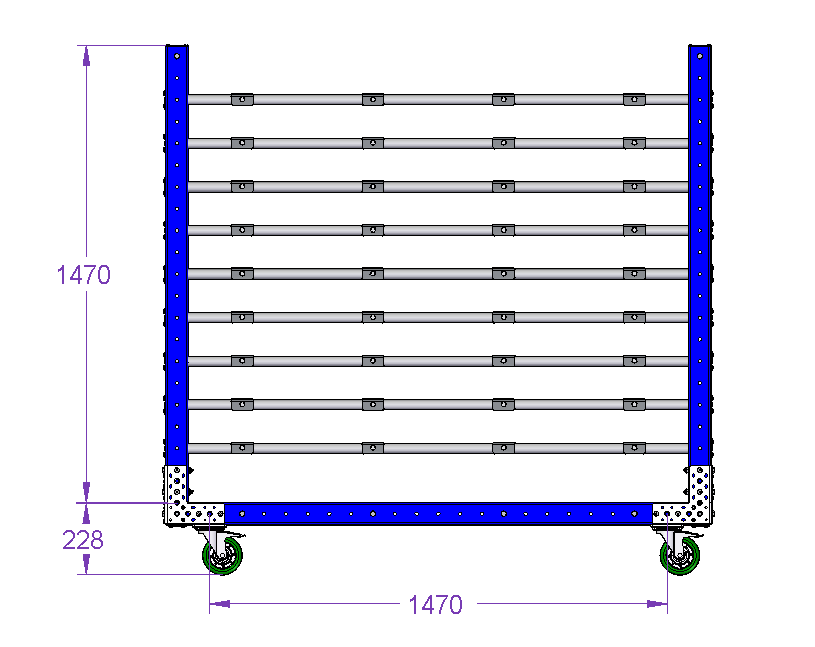

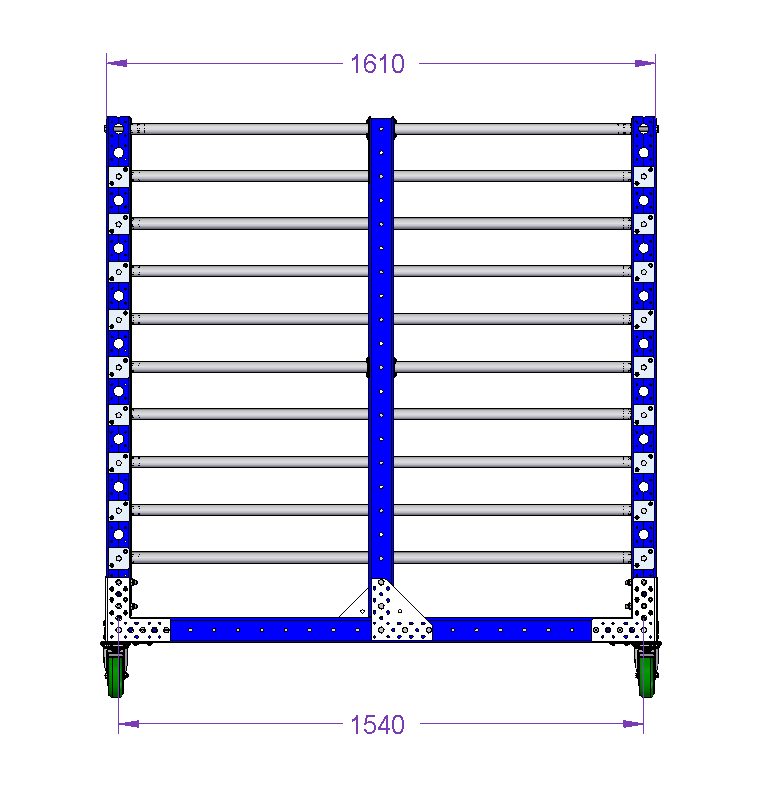

Cart for Wall Panel - 1750 x 1610 mm
Cart for Wall Panel - 1750 x 1610 mm
Cart for Wall Panel - 1750 x 1610 mm
Cart for Wall Panel - 1750 x 1610 mm
Q-100-1303

Cart for Wall Panel - 1750 x 1610 mm

Cart for storing wall panels and similar products. The tubes are movable so each level can be adapted for different sizes.

Technical specifications

Category: Kitting Carts

Transportation method: Manual

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 69 inch

Levels: 9

Width: 63 inch

Load capacity: 992 lbs

Load Capacity per Level: 110 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

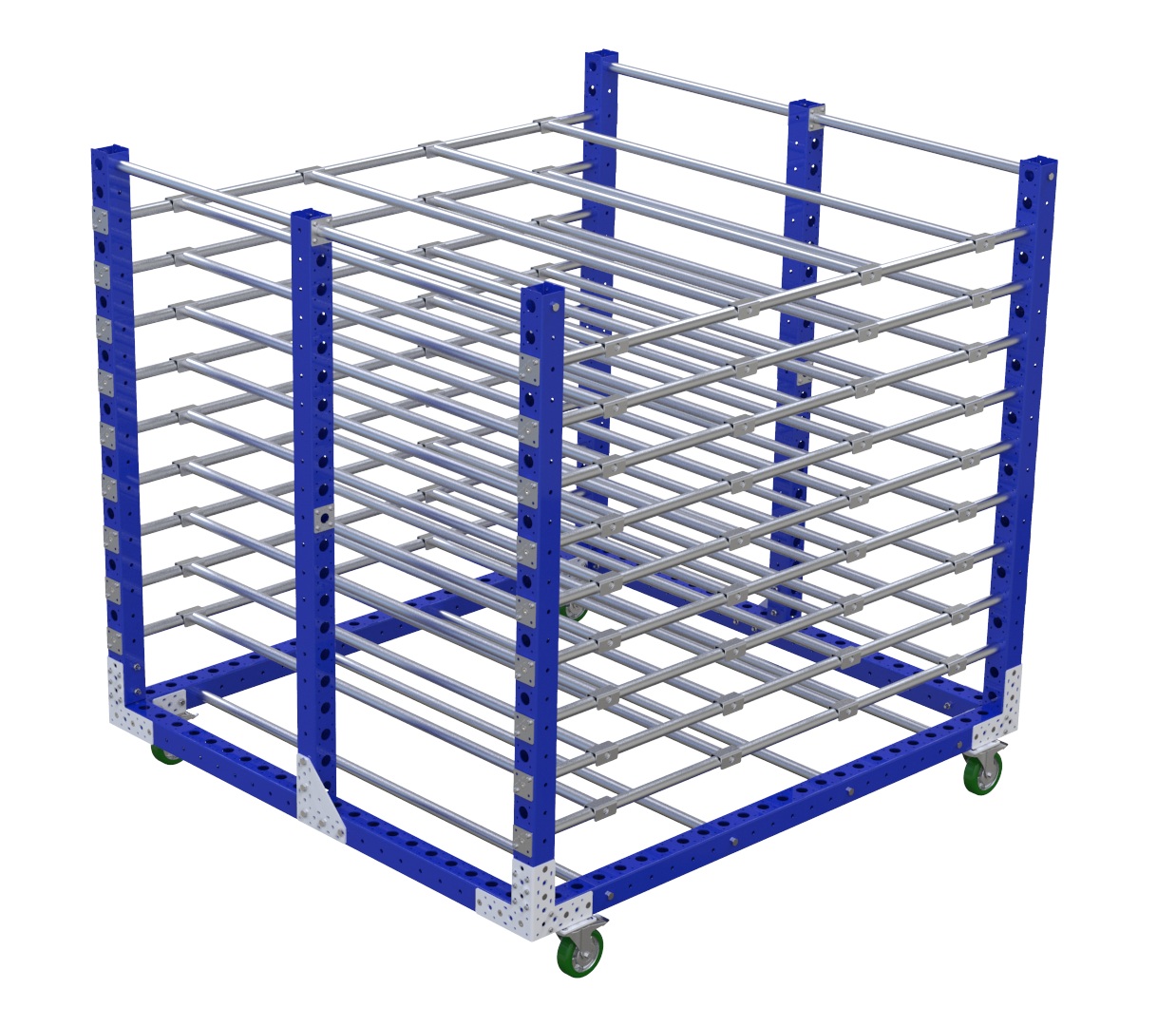

This cart was designed to store and transport large wall panels for buses or similar products. The wall panels rests on the tubes which can be moved horizontally to adapt the levels for different sizes. The cart equipped with four polyurethane swivel casters with brakes.

Parts included
FlexBeam STS - 1680 mm 4 Q-001-1293
FlexBeam™ - 1470 mm FE 14 Q-001-1503
FlexBeam™ - 1610 mm FE 2 Q-001-1505
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 36 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Spring Threaded Tube Connectors 204 Q-005-0469
Triangle Joint 2 Q-005-0483
C Profile 72 Q-005-0505
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 36 Q-005-1426
Fully Threaded - M10 x 120 mm 12 Q-006-1037
Locking Nut M10 38 Q-006-1042
Hex Head - M10 x 90 mm 10 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra low head [1,5 mm] M10x40 mm 72 Q-006-1361
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 168 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 40 Q-006-1410
