Q-100-0363

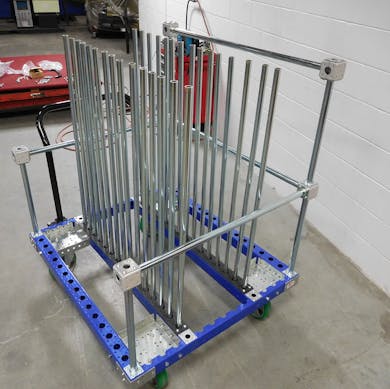

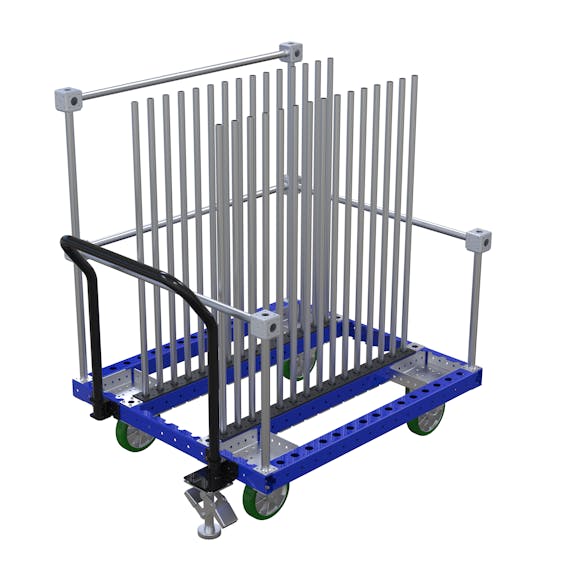

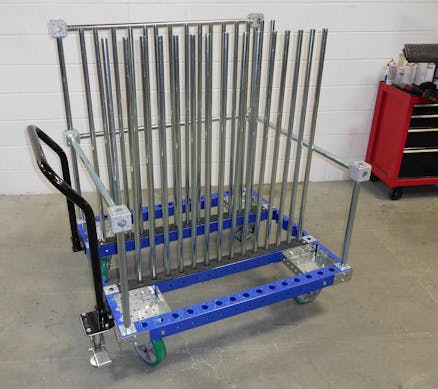

Cart for Plate 1050 x 1190 mm

Cart for plates, panels and other long parts. The cart is equipped with a handlebar, floor brake and polyurethane casters as well as rubber/plastic protection to prevent parts from being damaged.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 47 inch

Load capacity: 798 lbs

Width: 41 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This push cart is perfect for transporting plates, panels and other long parts. The parts are placed on the FlexBeams in the base which are covered by a rubber to protect the parts from being damaged. The storage area is divided into seventeen slots of equal size and comes equipped with a handlebar, floor brake and four polyurethane casters, two fixed and two swivel making it easy to move manually.

Parts included
FlexTube™ 1050 mm 2 Q-000-1053
FlexTube™ 490 mm 6 Q-000-1247
FlexTube™ Inner 1190 mm 30 Q-000-1257
FlexTube™ 910 mm 2 Q-000-1269
FlexQube 12 Q-001-1078
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ 30,5 mm hole 30 Q-002-1320
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
RubberStrip - 1050 x 70 mm with cutouts 2 Q-005-0250
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 51 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M10 x 90 mm 4 Q-006-1132
Hex Head - M10 x 30 mm 8 Q-006-1161
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 280 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
