Q-100-0357

Cart for Hanging Tubes

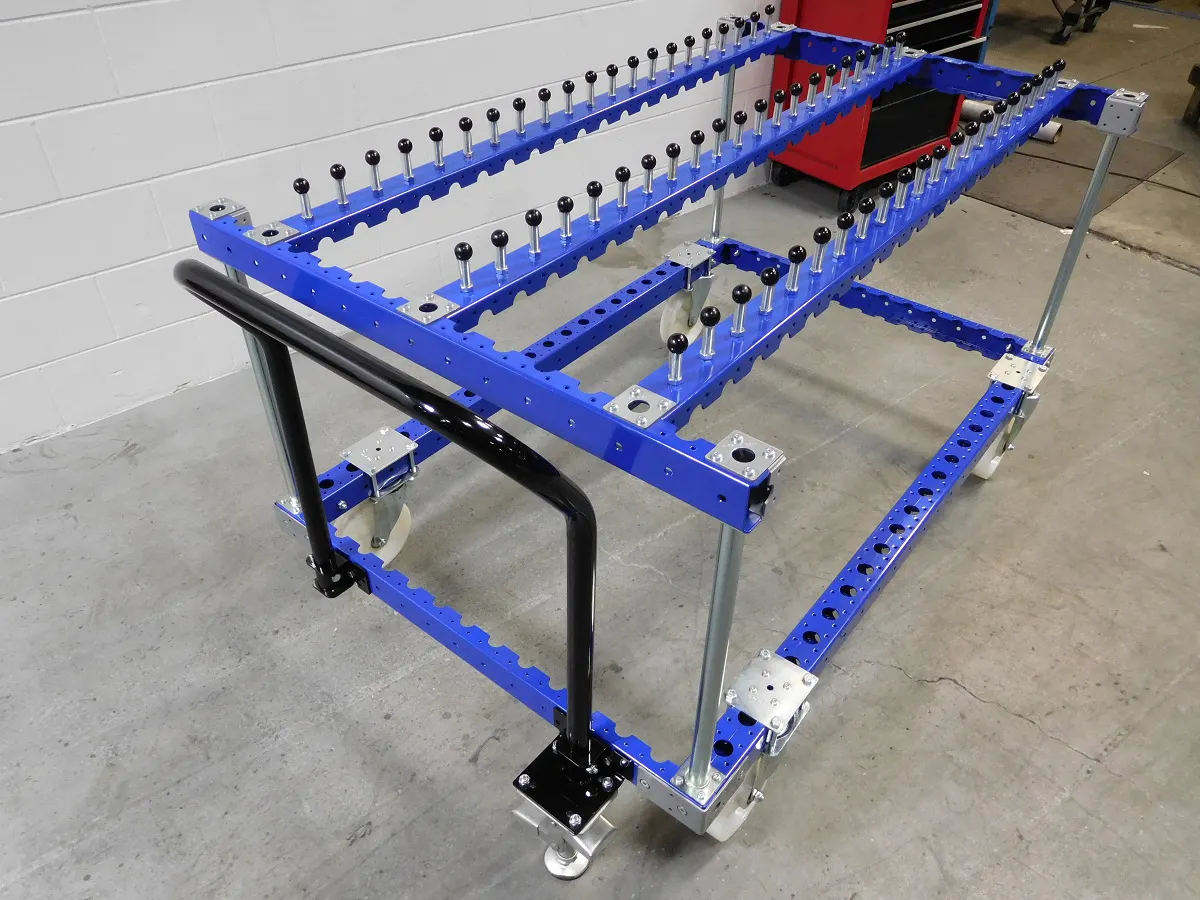

This cart was custom designed to transport tubes but can also be used for hoses and similar parts. Equipped with a handlebar, floor brake and four nylon swivel casters.

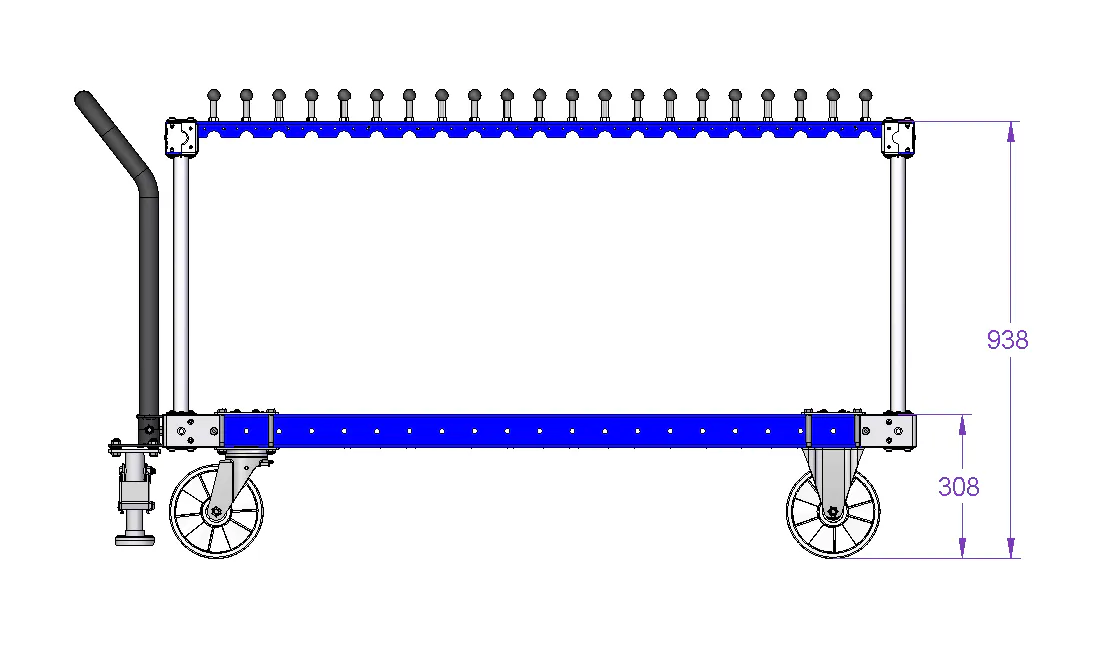

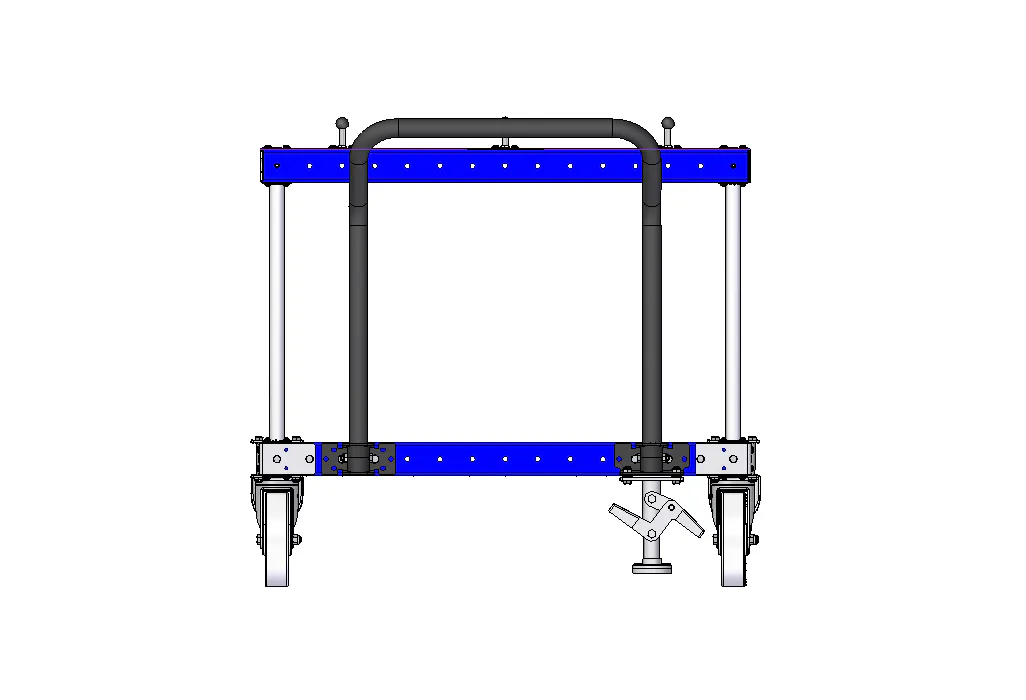

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Category: Hanging Carts

Transportation method: Manual

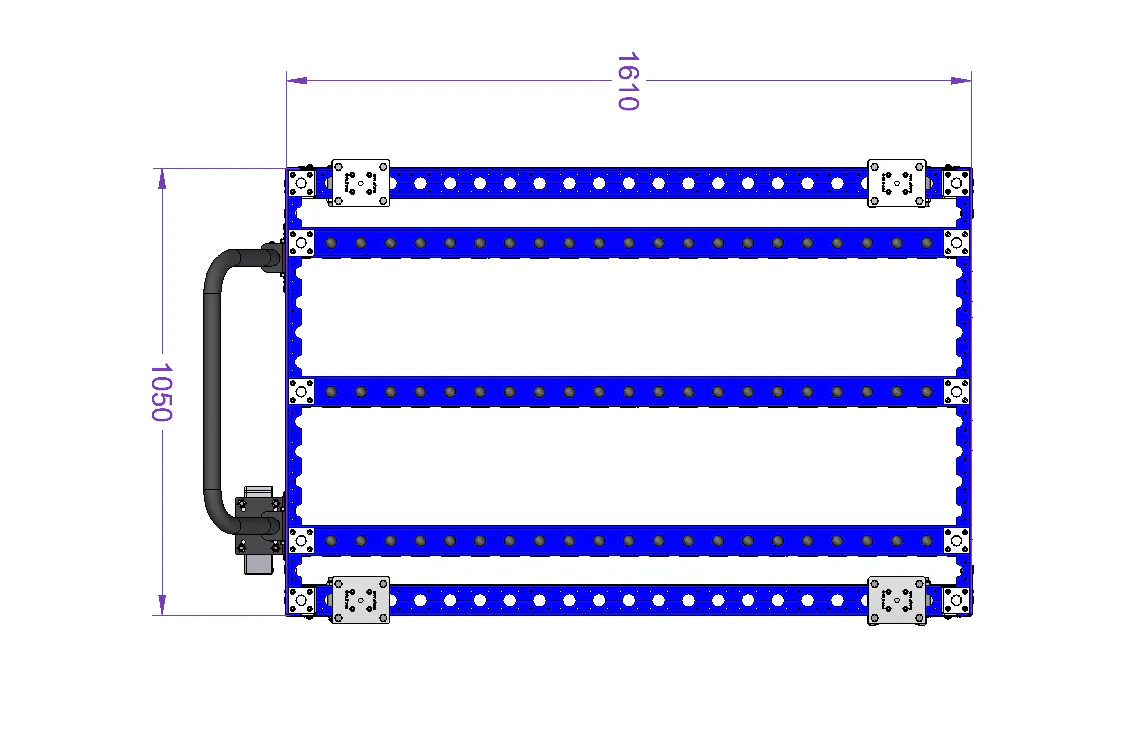

Length: 63 inch

Width: 41 inch

Load capacity: 99 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

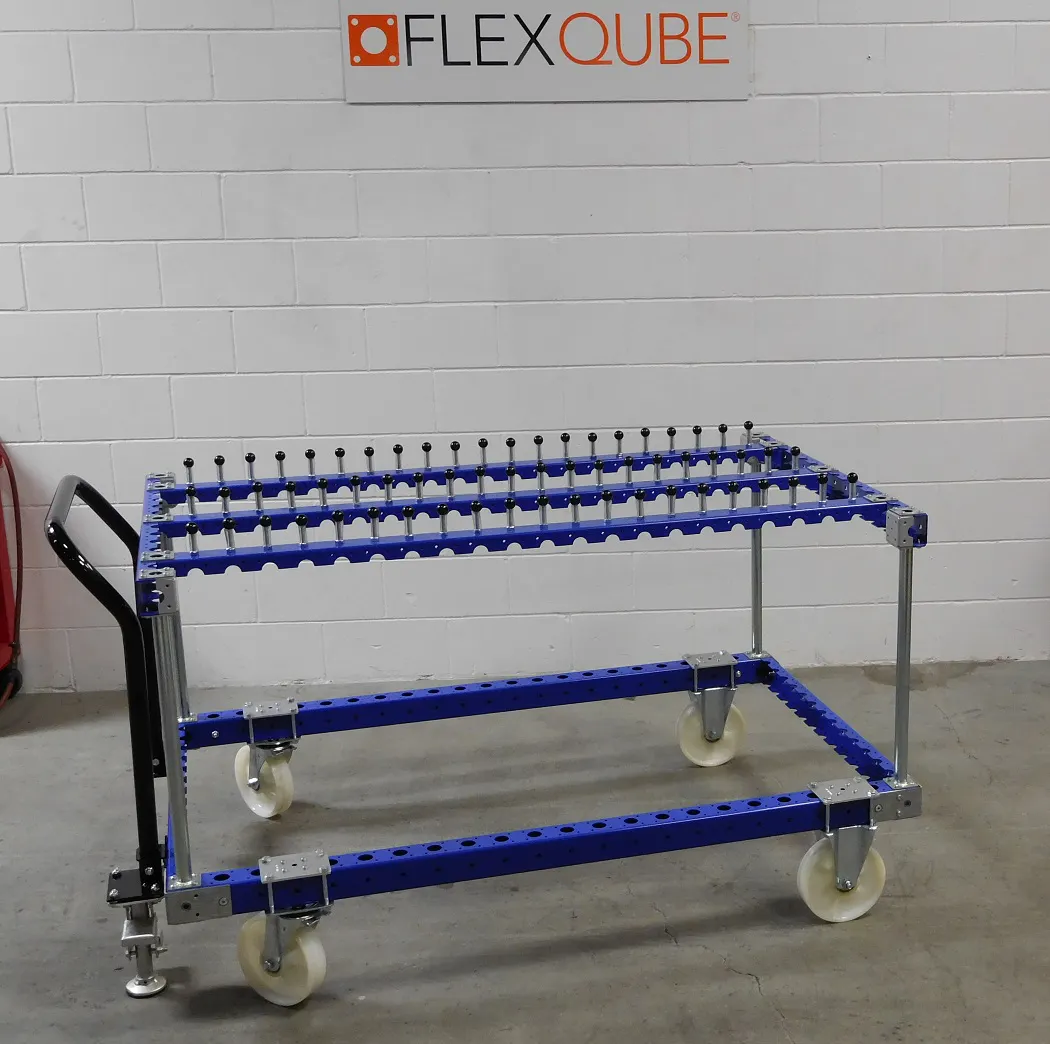

This cart was custom designed to transport tubes but can also be used for hoses and similar parts. Bolts with plastic knobs acts as dividers and the loading area has been raised to get the parts into a better ergonomic zone for the operator. The cart is equipped with a handlebar, floor brake and four nylon swivel casters making it easy to maneuver in tight areas.

Parts included
Plastic tube - 48 mm 63 Q-000-0083
FlexTube™ 560 mm 4 Q-000-1182
FlexQube 4 Q-001-1078
FlexBeam™ - 1540 mm 7 Q-001-1295
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexPlate™ 14 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Floor Brake LTL - 200 mm 1 Q-004-1359
Spherical Knob 63 Q-005-1146
64 mm FlexBeam™ Collet 4 Q-005-1426
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 38 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M10 x 90 mm 16 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Nut M10 63 Q-006-1195
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 112 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 65 Q-006-1502
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
