Cart for Door - 1470 x 1540 mm
Cart for Door - 1470 x 1540 mm
Cart for Door - 1470 x 1540 mm
Cart for Door - 1470 x 1540 mm
Cart for Door - 1470 x 1540 mm
Q-100-1811

Cart for Door - 1470 x 1540 mm

This cart is designed for doors or panels and uses tubes as dividers.

Technical specifications

Category: Specialized Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 58 inch

Length: 61 inch

Load capacity: 1400 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Doors

More info

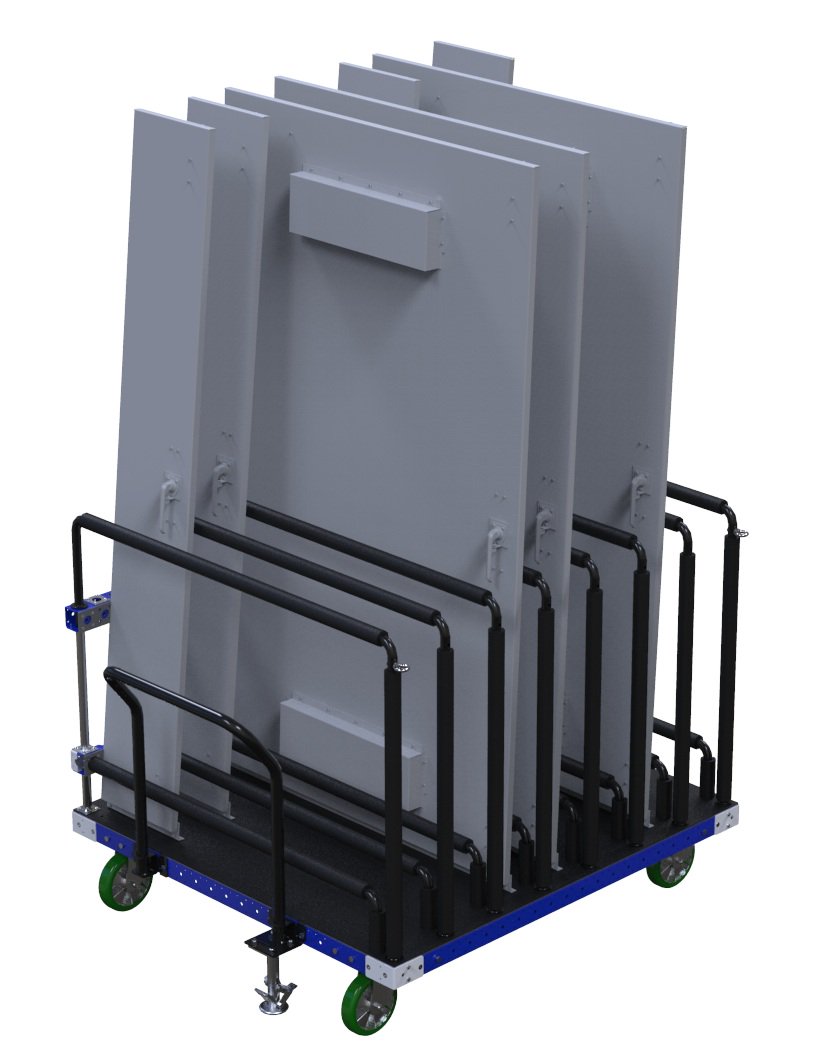

This cart is for doors or any panel-shaped part and uses tubes as dividers with foam protection to avoid damage to the components. Seven big doors or several narrower ones can be placed in this heavy duty cart. This cart comes equipped with a top bent handlebar, floor friction brake and four high-quality polyurethane casters.

Parts included
FlexTube™ 140 mm - Locking Nut 2 Q-000-1102
FlexTube™ 420 mm 2 Q-000-1270
FlexQube 2 Q-001-1078
FlexPlate™ 9 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
Spring Threaded Tube Connectors 32 Q-005-0469
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 8 Q-005-1426
Fixed Tube Divider - 175 x 1295 mm 8 Q-005-2413
Round Eye Nut M10 2 Q-006-0074
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 56 Q-006-1042
Hex Head - M10 x 90 mm 4 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 16 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 76 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 56 Q-006-1385
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Pipe Insulation - 30 x 132 mm 8 Q-009-0065
Pipe Insulation - 30 x 1252 mm 8 Q-009-0066
Pipe Insulation - 30 x 900 mm 8 Q-009-0067
Pipe Insulation - 30 x 1315 mm 8 Q-009-0068
Rubber Carpet - 1470 x 1540 mm 1 Q-009-0069
Rubber Strip w.Cutouts - 1540 x 70 mm 2 Q-009-0078
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Removable Handlebar/Divider - 1400 mm 8 Q-015-0132
Top Plate - 1470 x 1540 mm 1 Q-016-1254
FlexBeam™ - 1470 mm 6 Q-020-1470
