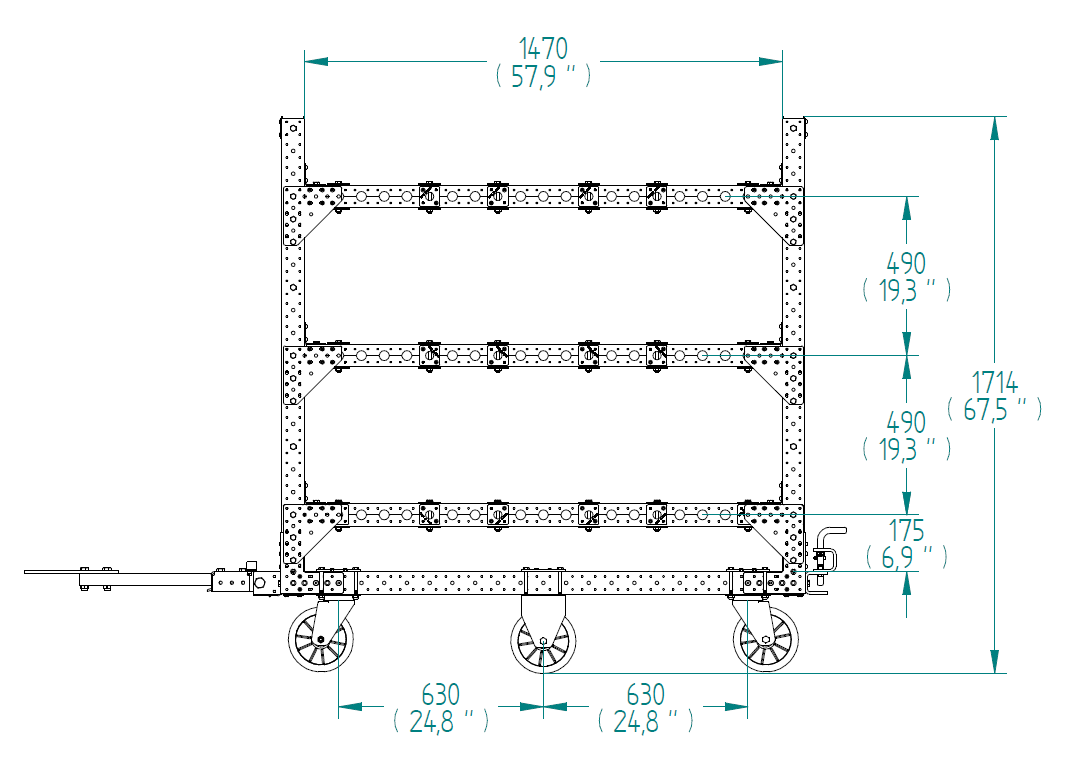

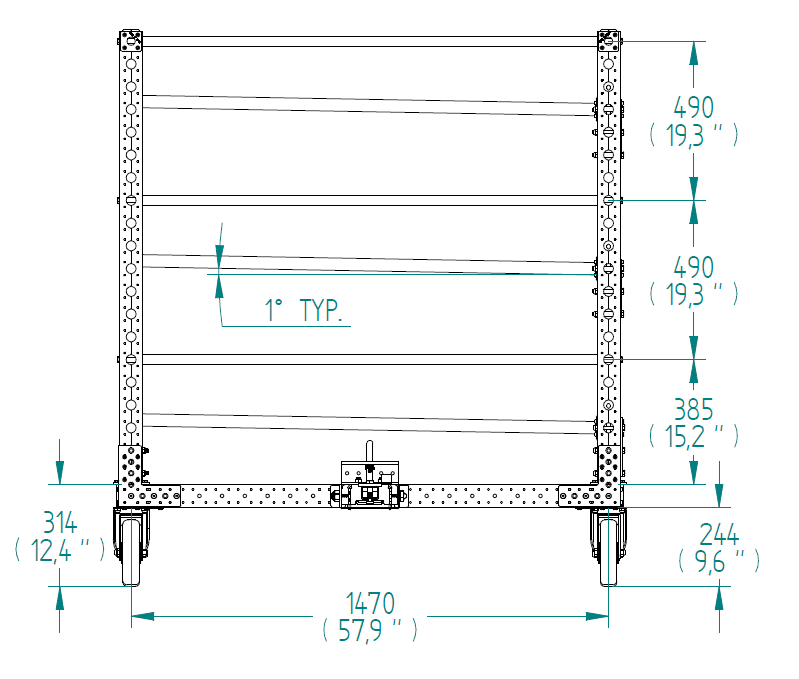

Blower Assembly Cart - 1540 x 1610 mm
Blower Assembly Cart - 1540 x 1610 mm
Blower Assembly Cart - 1540 x 1610 mm
Blower Assembly Cart - 1540 x 1610 mm
Q-100-1604

Blower Assembly Cart - 1540 x 1610 mm

This cart is designed for hanging parts and is equipped with three levels of large hangers.

Technical specifications

Category: Specialized Carts

Transportation method: Manual

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 61 inch

Length: 63 inch

Levels: 4

Load capacity: 1202 lbs

Load Capacity per Level: 397 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

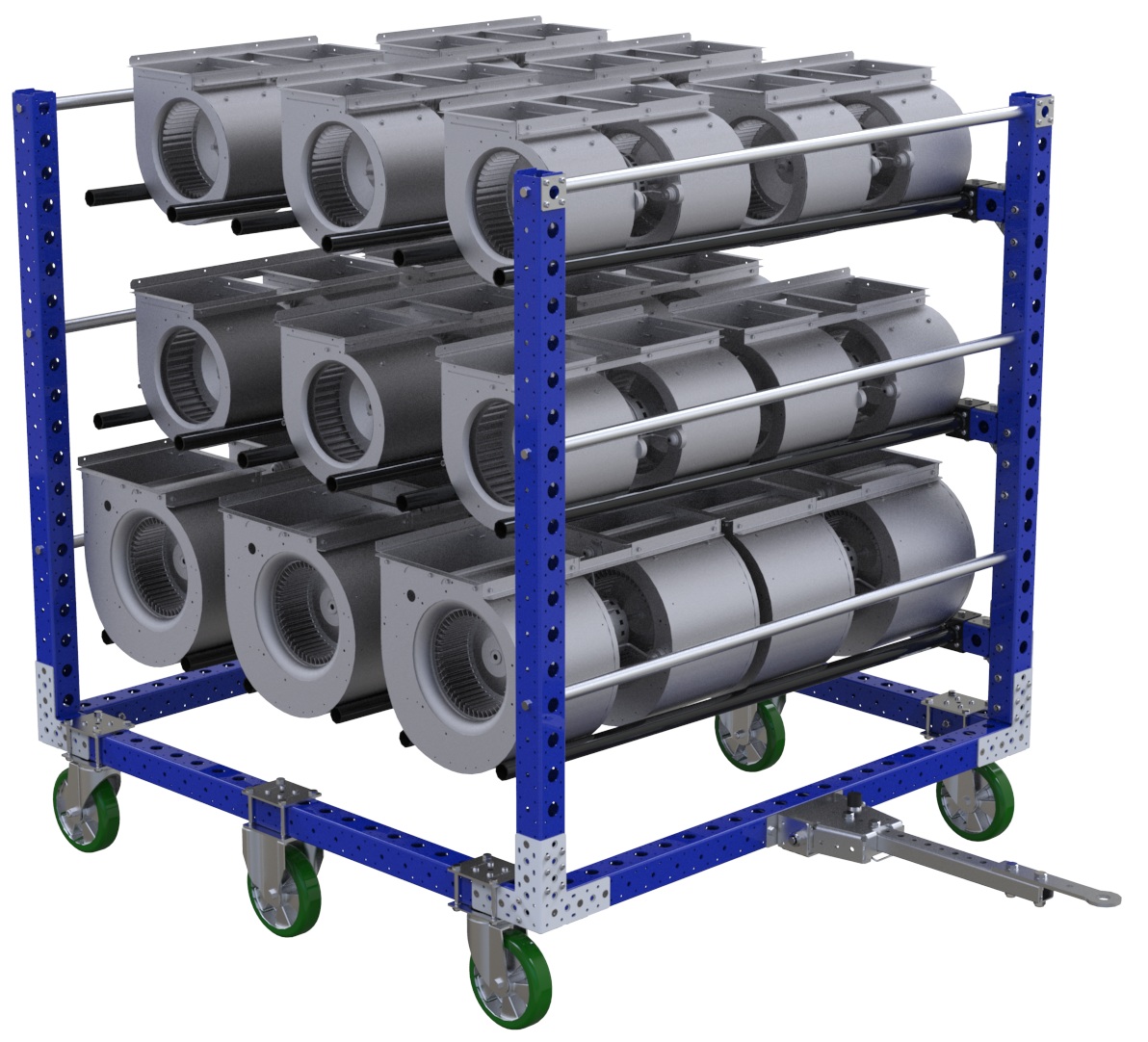

This cart is equipped with three levels of large hangers that is designed to transport parts hung or placed on the top of them. The tubes on the sides help to keep the parts secured in the cart. It utilises a drop pin towbar to transport the carts in a tugger train and six high-quality polyurethane casters.

Parts included
FlexPlate™ 30 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
L-Bracket Joint - 70 x 70 mm 6 Q-005-0429
Spring Threaded Tube Connectors 24 Q-005-0469
Triangle Joint 6 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 48 Q-005-1426
Hex Head - M14 x 60 mm 4 Q-006-1036
Fully Threaded - M10 x 120 mm 12 Q-006-1037
Locking Nut M14 4 Q-006-1039
Locking Nut M10 98 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M10 x 90 mm 64 Q-006-1132
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 260 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Angled Tube Hanger - 1400 mm 18 Q-014-0002
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ 1540 mm STS 4 Q-020-1540
Outer tube (No plate) - 1400 mm 6 Q-025-1400
