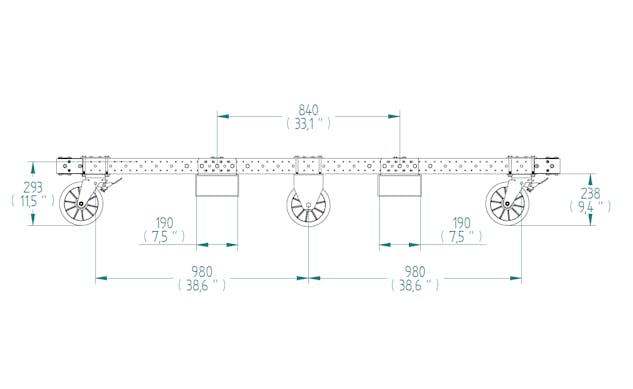

Base frame - 1120 x 2240 mm

Base frame cart with polyurethane casters and fork pockets.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 44 inch

Length: 88 inch

Load capacity: 1102 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart is a frame which can be used with a custom top structure from the customer — equipped with polyurethane casters and fork pockets for transportation via a forklift. This frame is a versatile solution for transporting your materials.

Parts included
FlexPlate™ 18 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Polyurethan 200 mm with Brake IP2 4 Q-004-1210
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
L Bracket Joint 8 Q-005-0031
Fork Tunnel EU - 80 mm 4 Q-005-0396
64 mm FlexBeam™ Collet 24 Q-005-1426
Locking Nut M10 68 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M10 x 90 mm 48 Q-006-1132
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 104 Q-006-1384
Low Allen Head - M10 x 16 mm 4 Q-006-1409
FlexBeam™ STS FE - 980 mm 6 Q-021-0980
