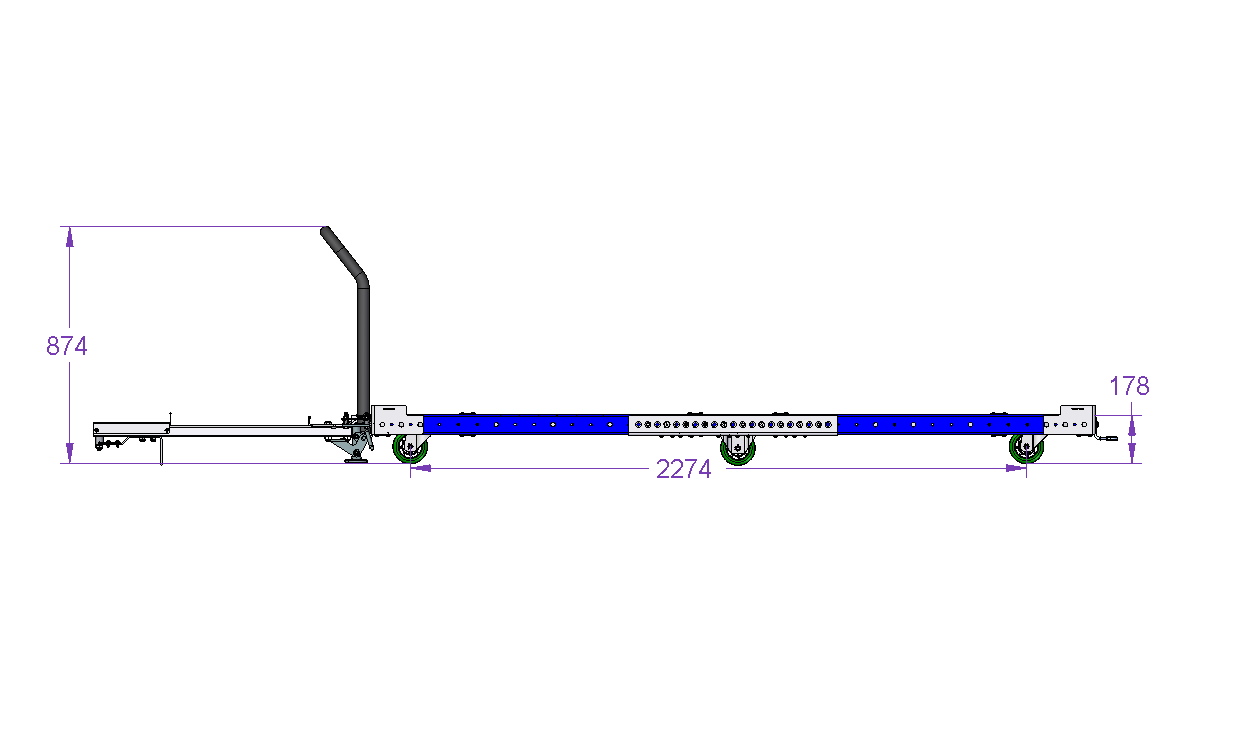

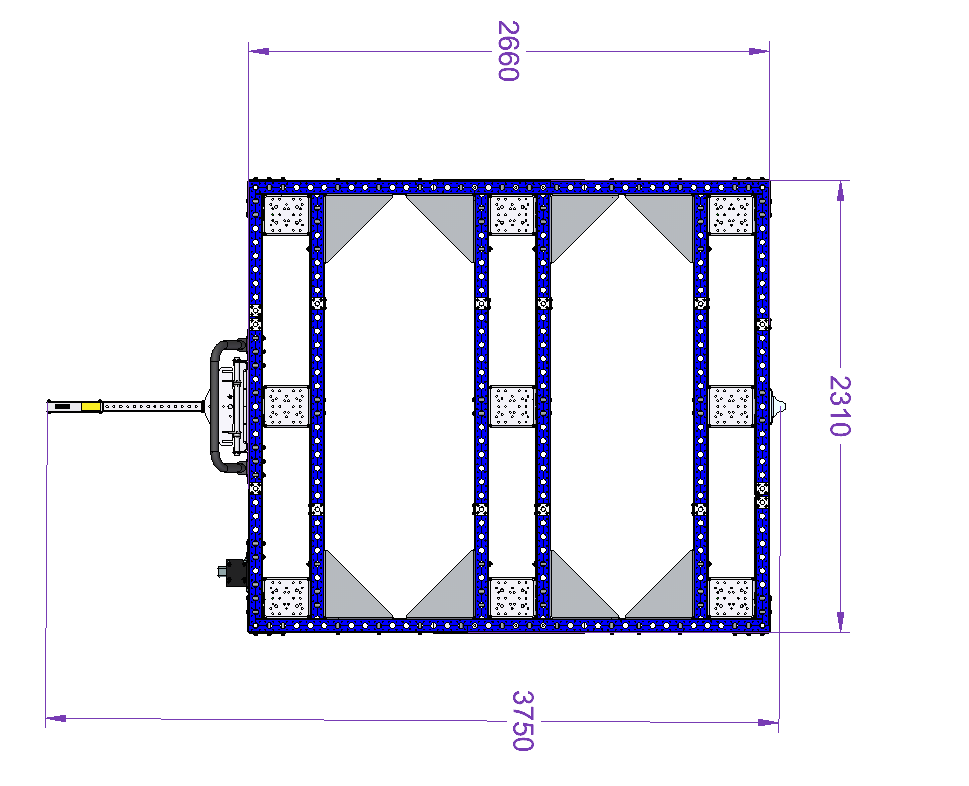

Base Cart for Racks 2660 x 2310 mm
Base Cart for Racks 2660 x 2310 mm
Base Cart for Racks 2660 x 2310 mm
Q-100-0263

Base Cart for Racks 2660 x 2310 mm

Large flatbed push cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Type of tow bar: Foot release

Length: 105 inch

Load capacity: 1102 lbs

Width: 91 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This flatbed pallet cart is great for transportation of larger pallets and containers. The cart is equipped with a foot release tow bar, handlebar, floor brake and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ - 1540 mm 2 Q-001-1295
FlexBeam™ - 1470 mm 2 Q-001-1296
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 560 mm 8 Q-001-1309
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 1540 mm FE 4 Q-001-1504
FlexPlate™ 45 Q-002-1001
Flexplate™ M10 18 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Wheel Attachment Box - 5 mm 9 Q-005-0046
Spring Cover Plate 1 Q-005-1025
Reinforcement Plate - 770 mm 2 Q-005-1112
Triangle Corner Plate 8 Q-005-1145
Caster Distance Collet - 18 mm 4 Q-005-1396
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 81 Q-005-1426
Pallet Guide Heavy - 5 mm 4 Q-005-1645
Sticker Green/Red 1 Q-005-1659
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 3 Q-006-1039
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 115 Q-006-1042
Washer M10 50 Q-006-1043
Hex Head - M10 x 95 mm 35 Q-006-1088
Hex Head - M10 x 90 mm 36 Q-006-1132
Countersunk MF6S - M10 x 90 mm 4 Q-006-1135
Countersunk - M10 x 100 mm 4 Q-006-1136
Hex Head - M10 x 100 mm 2 Q-006-1302
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 234 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Low Rider Floor Brake Plate 1 Q-015-0019
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - 950 mm 1 Q-017-0002
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
