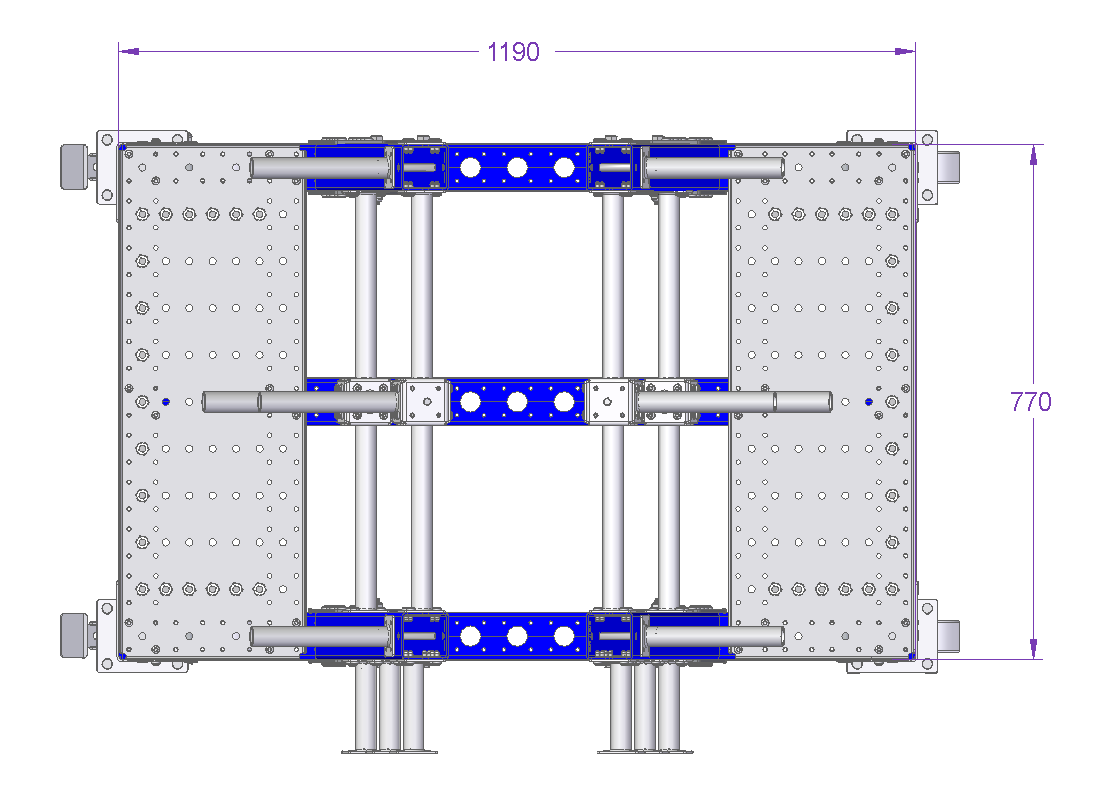

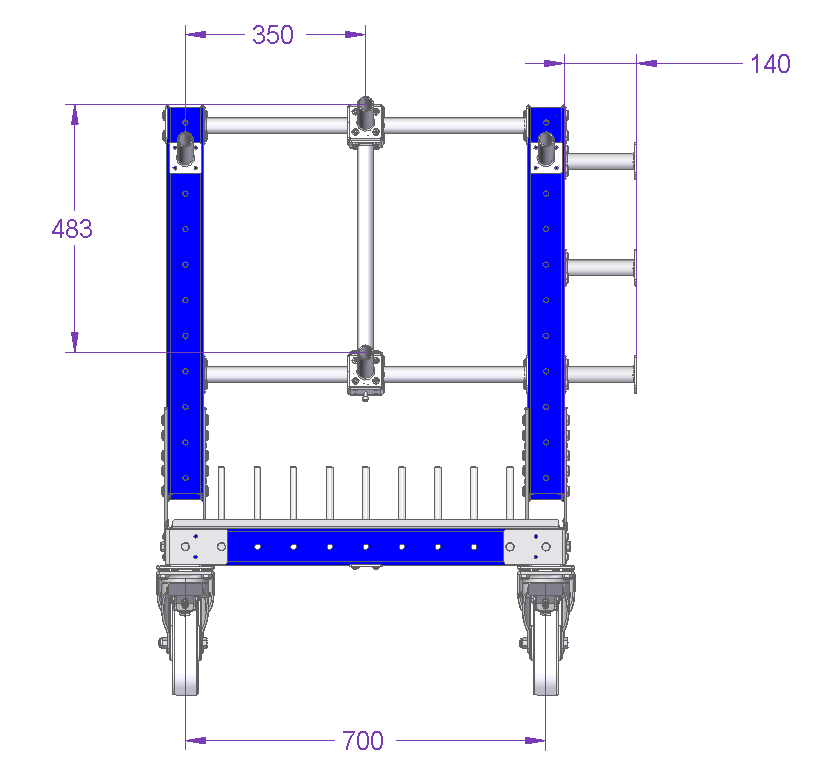

Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Angled Cart - 1190 x 770 mm
Q-100-0836

Angled Cart - 1190 x 770 mm

This cart is a perfect example of how custom FlexQube carts can be.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 30 inch

Length: 47 inch

Load capacity: 1058 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

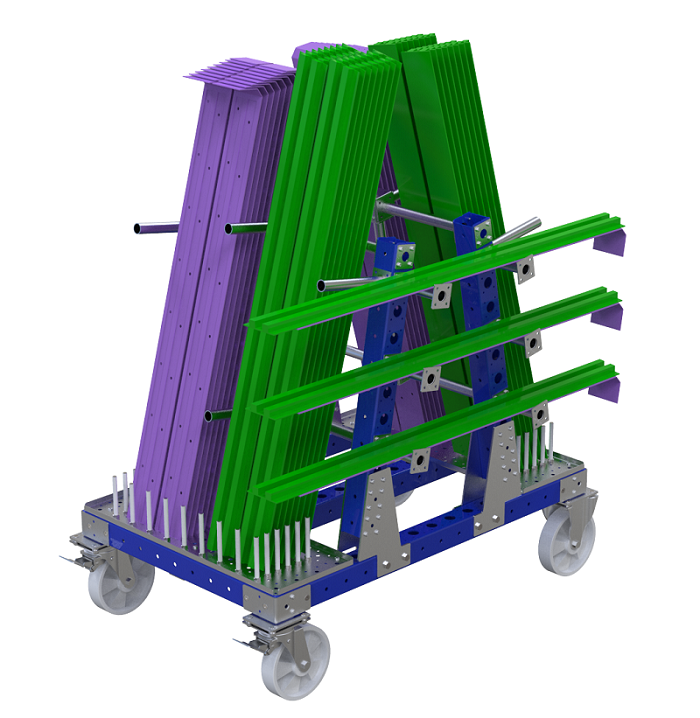

This angled cart is specially designed to hold long odd shaped materials. The cart is designed to hold the parts upright on an angle, the tubes are used to hold the materials securely in place. This is an example of how the FlexQube concept can be used to create material handling equipment to suit your materials. This cart is equipped with four polyamide casters, two of which are equipped with brakes.

Parts included
Outer Tube (One Plate) - 210 mm 8 Q-000-0071
Plastic Tube - 109 mm 38 Q-000-0103
FlexTube™ 140 mm - Locking Nut 6 Q-000-1102
FlexTube™ 420 mm 2 Q-000-1270
FlexTube™ 630 mm 4 Q-000-1312
FlexQube 8 Q-001-1078
FlexBeam™ 1120 mm 6 Q-001-1301
FlexBeam™ 770 mm FE 10 Q-001-1406
FlexPlate™ 14 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Angle support plate 8 Q-005-0294
Spring Threaded Tube Connectors 4 Q-005-0469
64 mm FlexBeam™ Collet 12 Q-005-1426
Allen Head - M6 x 30 mm 4 Q-006-1012
Fully Threaded - M10 x 120 mm 38 Q-006-1037
Locking Nut M10 37 Q-006-1042
Washer M10 48 Q-006-1043
Hex Head - M10 x 95 mm 12 Q-006-1088
Nut M10 40 Q-006-1195
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 256 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Top Plate - 770 x 280 mm 2 Q-016-0383
