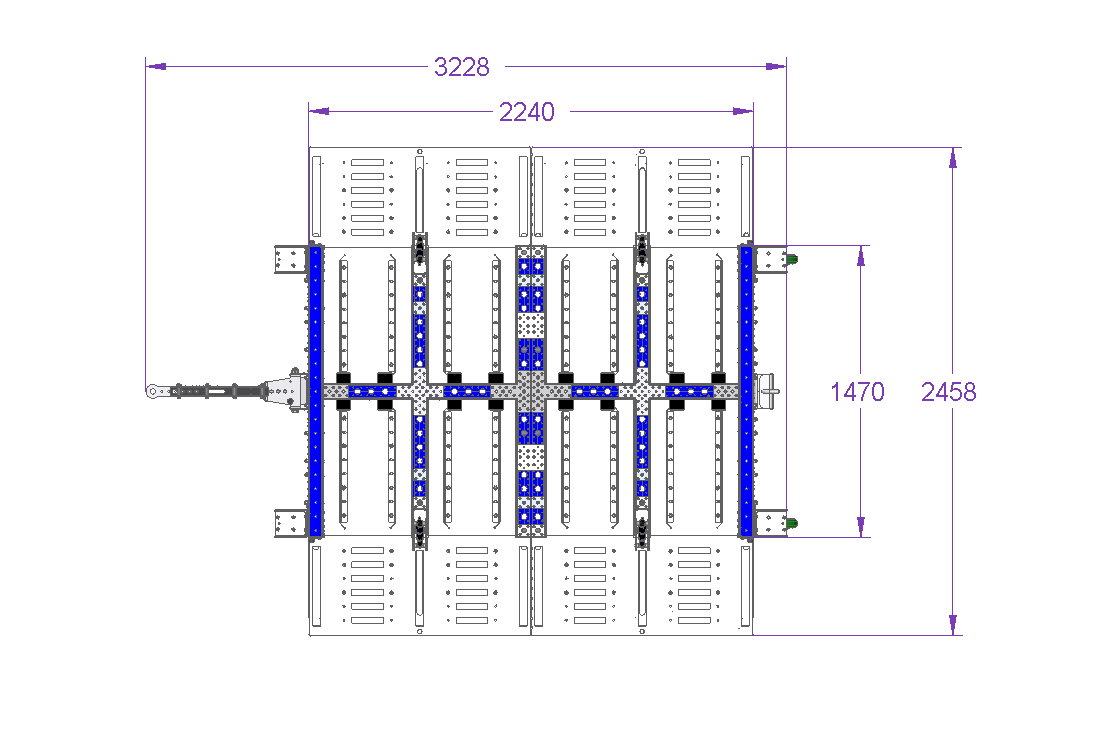

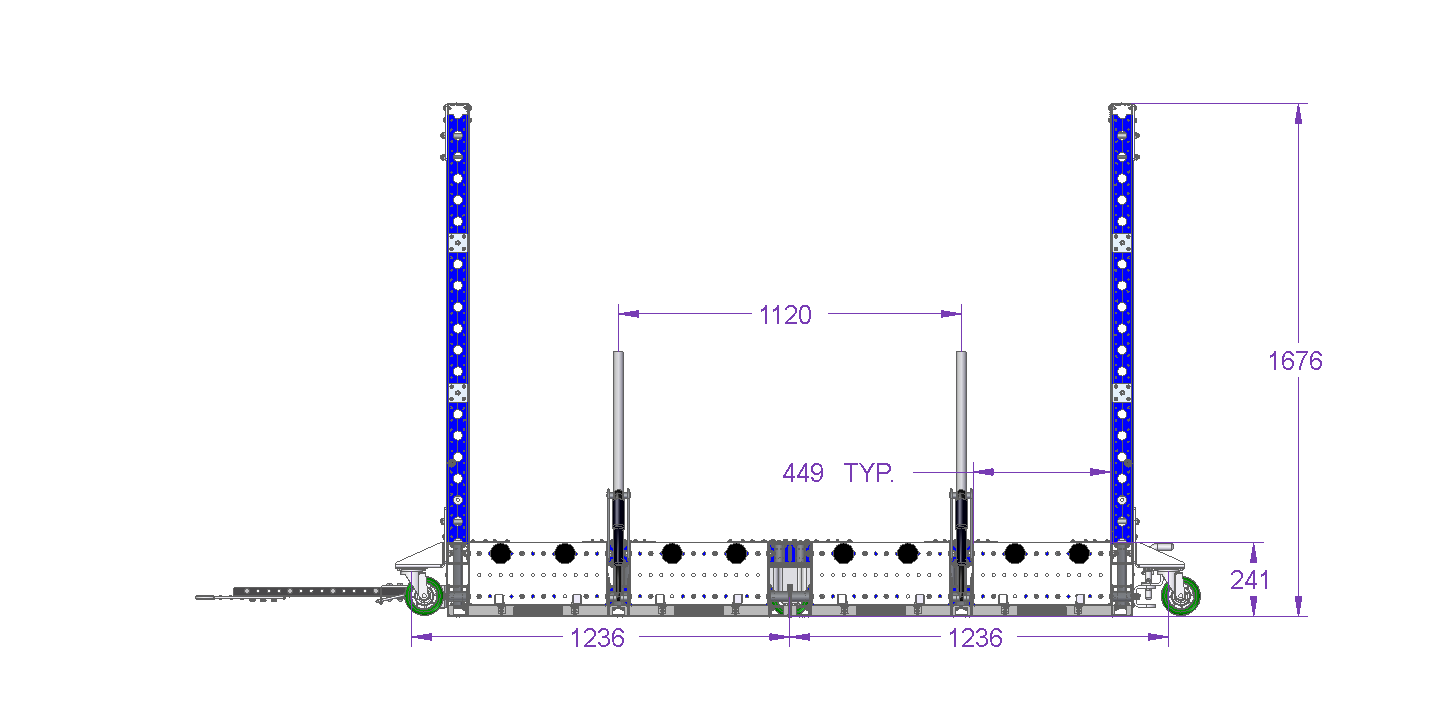

8 in 1 Mother Daughter System For Dollies - 2240 x 1470 mm

Q-100-0986

8 in 1 Mother Daughter System For Dollies - 2240 x 1470 mm

Large mother- daughter system for transporting eight small dollies.

100% free. No commitment.

Automotive 1764 lbs
load capacity

8 in 1 Mother Daughter System For Dollies – 2240 x 1470 mm

First Name Last Name Email Company City Country Phone Quantity

Comments (optional) Attach a file (optional) Upload

Maximum file size is 10mb.

We will get back to you within 24 hours. (Unless it’s during holidays.)

Technical specifications

Type of tow bar	Tongue and Hitch
Industry	Appliances & Electronics, Distribution, Medical Equipment
Width	58 inch
Length	88 inch
Load capacity	1764 lbs
Caster size	5 inch
Transportation method	Mother-Daughter Cart, Tugger

More info

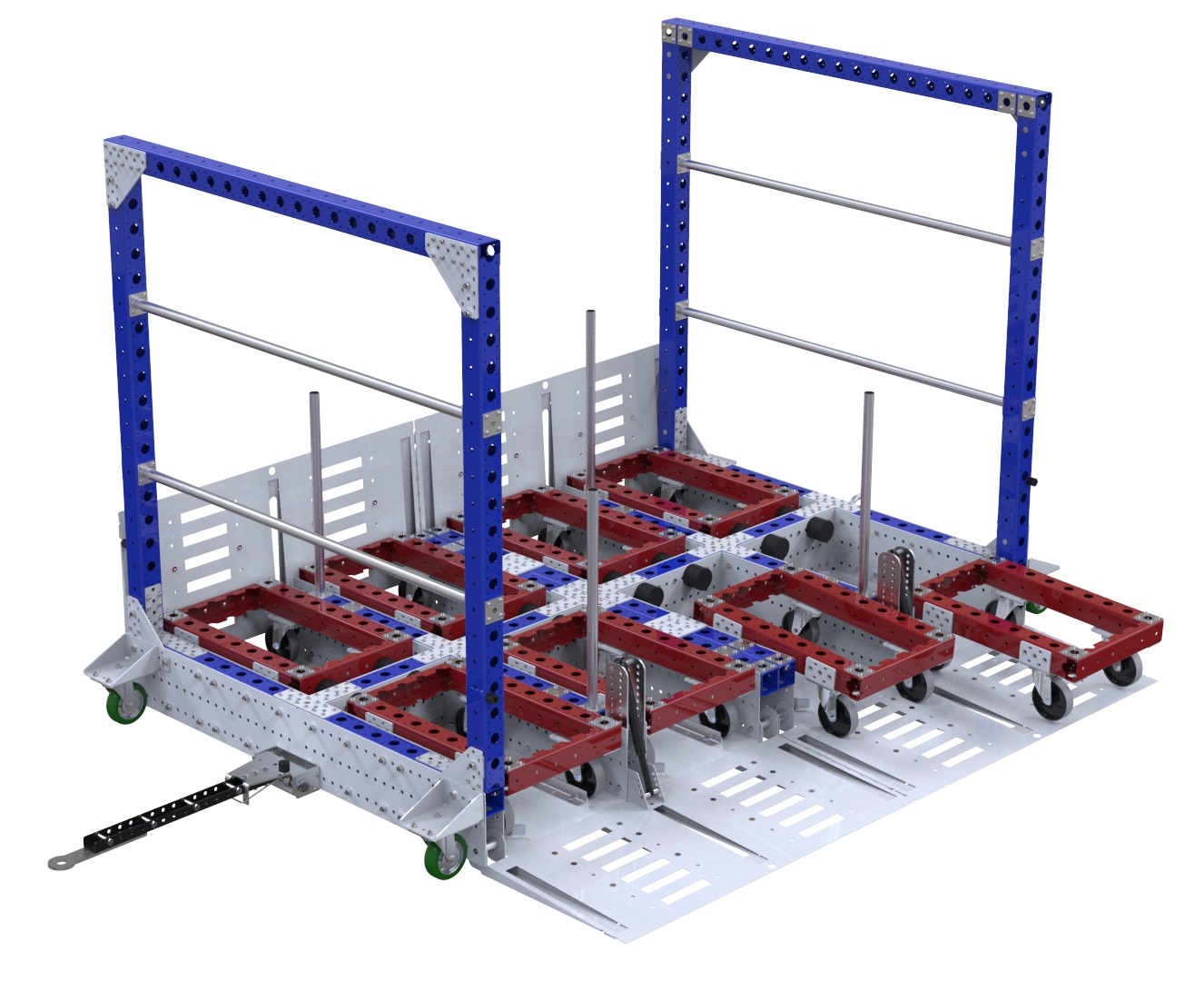

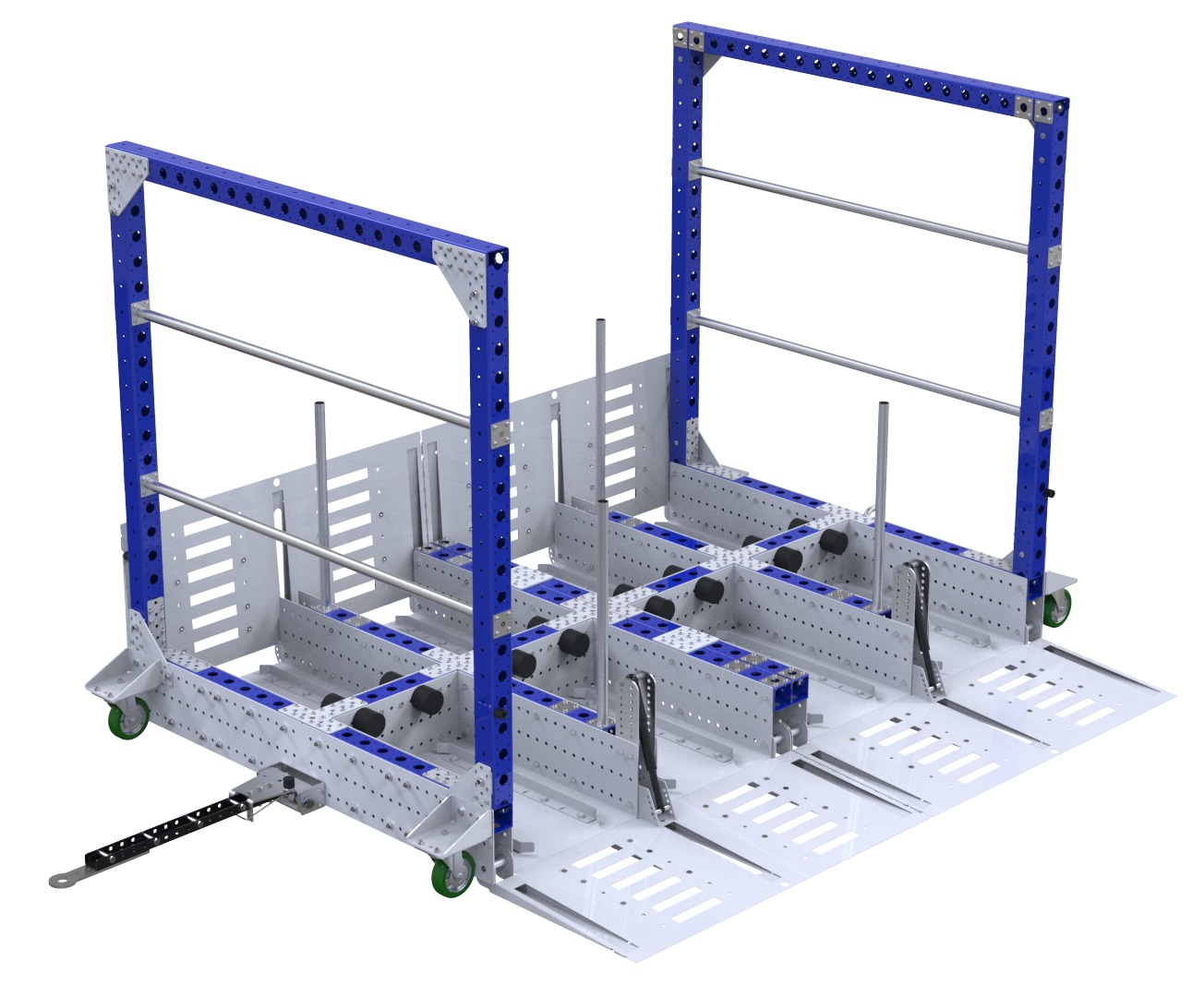

This 8 in 1 Mother Daughter cart system is a very large solution designed to take 8 fully loaded dollies within one frame. The 8 dollies can all be removed at different work and assembly stations, this improves efficiency flow within the facility. This mother frame is equipped with a drop pin and hitch tow bar, therefore this solution is designed to be towed behind a tugger train (learn more about transitioning from forklifts to tugger trains here).

Parts included

FlexBeam™ - 1400 mm 8 Q-001-1297

FlexBeam™ 700 mm FE 8 Q-001-1407

FlexBeam™ 560 mm FE 16 Q-001-1409

FlexBeam™ - 1330 mm FE 6 Q-001-1501

FlexBeam™ - 1470 mm FE 6 Q-001-1503

FlexBeam STS FE - 2100 mm 4 Q-001-1512

FlexPlate™ 16 Q-002-1001

Flexplate™ M10 34 Q-002-1162

Flexplate™ 30,5 mm hole 12 Q-002-1320

Caster Polyurethane 125 mm Fixed 2 Q-004-1107

Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220

Cross Joint - 240 x 240 mm 4 Q-005-0021

L Bracket Joint 4 Q-005-0031

T-Joint 6 Q-005-0065

M10 Collet - 43 mm 4 Q-005-0104

27 mm collet - 15 x 2 mm 3 Q-005-0341

Rubber damper - 70 x 55 mm 16 Q-005-0356

Rubber Bush - M6 x 12 mm 8 Q-005-0369

Spring Threaded Tube Connectors 76 Q-005-0469

Triangle Joint 8 Q-005-0483

Countersunk Wheel Attachment - 105 x 77.5 mm 2 Q-005-0647

M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648

Hinge assembly - Welded 4 Q-005-0653

Extended caster attachment (Welded) - 80 x 60 mm 4 Q-005-0671

Side Panel - 735 x 210 mm 4 Q-005-0680

Guide plate - 560 mm 16 Q-005-0709

Circlip for M10 Rod 16 Q-005-0737

Attch. Plate for Cylinder Axis 8 Q-005-0738

Lower Axis - 10 x 66 mm 4 Q-005-0739

Upper axis - 10 x 76 mm 4 Q-005-0740

Ramp support plate 16 Q-005-0742

64 mm FlexBeam™ Collet 28 Q-005-1426

M10 Collet - 15 mm 8 Q-006-0027

M6 x 20 K6S 10.9 Round Head (black) 4 Q-006-1018

Hex Head Fully Threaded - M8 x 20 mm 16 Q-006-1019

Washer 10,5 x 30 x 2,5 1 Q-006-1030

Hex Head - M10 x 25 mm 7 Q-006-1041

Locking Nut M10 360 Q-006-1042

Washer M10 8 Q-006-1043

Countersunk 8 Q-006-1082

Hex Head - M10 x 30 mm 8 Q-006-1161

Locking Nut M8 17 Q-006-1181

Hex Head Fully Threaded - M10 x 16 16 Q-006-1245

Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343

Extra Low Head - M10 x 90 mm 50 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 584 Q-006-1384

Low Allen Head - M10 x 16 mm 128 Q-006-1409

Extra Low Head Allen - M10 x 25 mm 228 Q-006-1410

Hex Head Fully Threaded - M10 x 60 mm 4 Q-006-1502

Collet - 10 mm 8 Q-015-1047

Collet - 11.5 mm 8 Q-015-1048

Daughter Cart Carrier - 690 x 455 mm 8 Q-016-0493

Modular tow lip - 28 mm 1 Q-017-0005

Modular Towbar - 605 mm 1 Q-017-0038

Tow Hinge Module 1 Q-017-0059

Spring Loaded Tow Hinge 1 Q-017-0067

Outer Tube (No Plate) 70 mm 12 Q-025-0070

Outer tube (No plate) - 140 mm 6 Q-025-0140

Outer Tube (No Plate) - 694 mm 4 Q-025-0694
