Windshield Cart - 91 x 69 inch
Windshield Cart - 91 x 69 inch
Windshield Cart - 91 x 69 inch
Windshield Cart - 91 x 69 inch
Q-100-0661

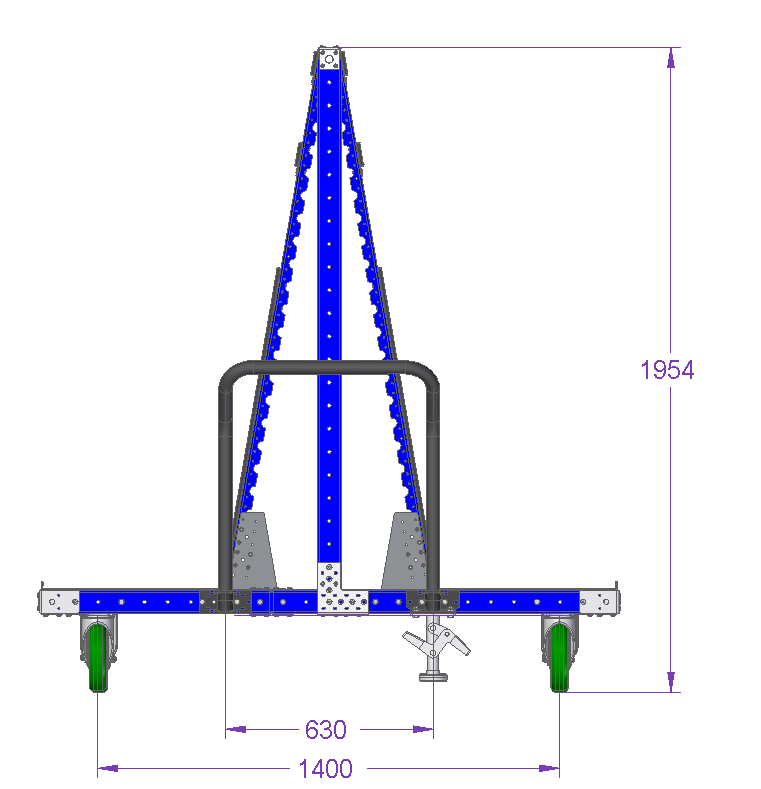

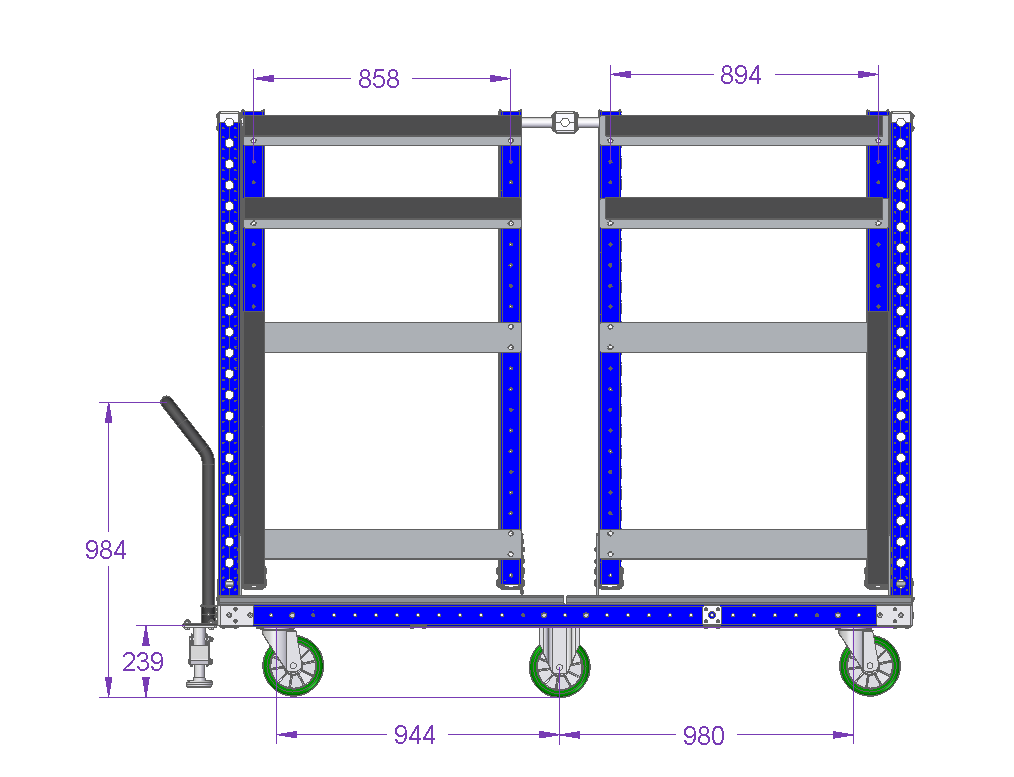

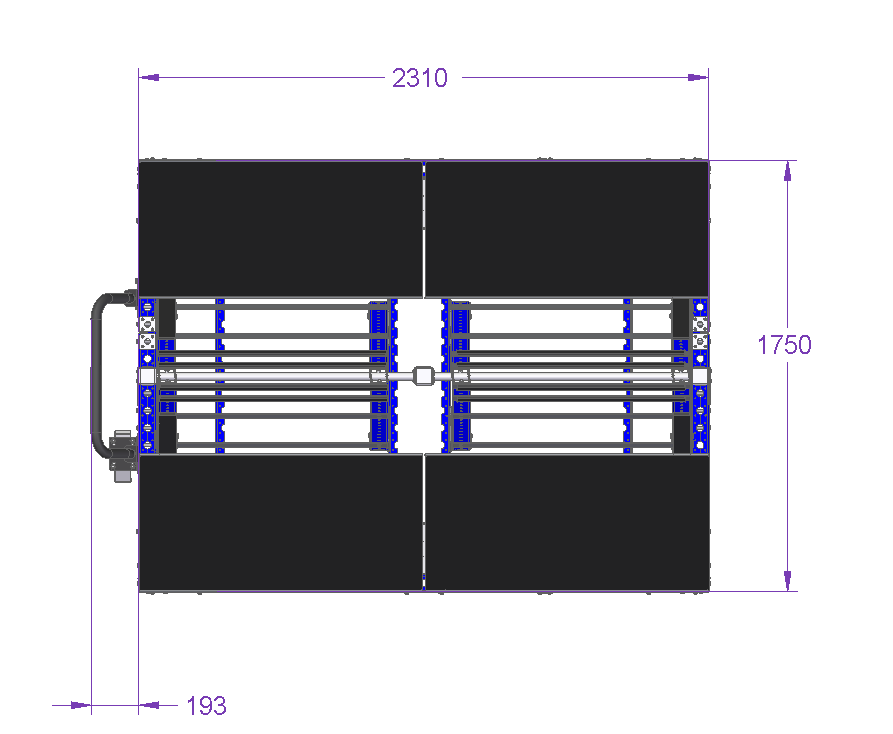

Windshield Cart - 91 x 69 inch

Custom designed cart for transporting large windhsields.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 91 inch

Load capacity: 1102 lbs

Width: 69 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This large cart was designed for transporting windshields, but can also be used for transporting large wall panels. It is equipped with six polyurethane casters, two of them are fixed for improved tracking. It is also equipped with an ergonomic handlebar for easier manual pushing.

Parts included
FlexTube™ 1050 mm 2 Q-000-1053
FlexQube 12 Q-001-1078
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ - 1610 mm FE 14 Q-001-1505
FlexPlate™ 34 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 8 Q-002-1162
FlexPlate™ half 24 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
Steel Plate - 928 mm 8 Q-005-0292
Steel plate - 964 mm 8 Q-005-0293
Angle support plate 8 Q-005-0294
EPDM Rubber strip - 925 mm 12 Q-005-0295
Rubber Carpet - 548 x 1150 mm 4 Q-005-0443
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 6 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 158 Q-006-1042
Hex Head - M10 x 95 mm 16 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Hex Head - M10 x 20 mm 48 Q-006-1232
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 232 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 116 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 68 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate - 265 x 1150 mm 8 Q-016-0222
