Q-100-0557

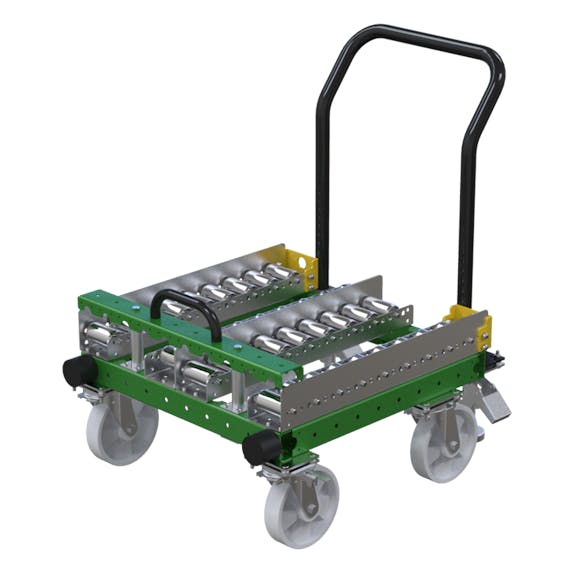

Roller Top Cart

Custom designed conveyor cart with steel rollers.

Technical specifications

Category: Conveyor

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 14 inch

Length: 28 inch

Load capacity: 500 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This specially designed cart is equipped with rollers for easier loading and unloading when docked in the correct position. It was designed to transport smaller containers and bins. It comes equipped with an ergonomic handlebar for easier manual transportation. There are four high quality polyamide casters attached for easier movability.

Parts included
FlexQube 2 Q-001-1078
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 700 mm FE 3 Q-001-1407
FlexPlate™ 2 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Flexplate™ 30,5 mm hole 2 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Directional Locking Plate 1 Q-004-1130
Floor Brake LTL - 200 mm 2 Q-004-1359
Rubber damper - 70 x 55 mm 2 Q-005-0356
Roller guide 700 mm for 100 mm Rollers 4 Q-005-0385
RTE Plug 2 Q-005-1289
Roller Top Cart 36 Q-100-0557
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 36 Q-006-1042
Washer M10 88 Q-006-1043
Hex Head - M8 x 16 mm 2 Q-006-1120
M8 Washer 2 Q-006-1183
Hex Head - M10 x 40 8 Q-006-1208
Hex Head - M10 x 20 mm 8 Q-006-1232
Hex Head Fully Threaded - M10 x 16 2 Q-006-1245
Extra low head [1,5 mm] M10x40 mm 16 Q-006-1361
Self Tapping Screw M6 Torx H60 x 16 60 Q-006-1384
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Tube for handlebar US - 490 mm 1 Q-015-0075
Handle Bar 210 mm M8 1 Q-015-1037
