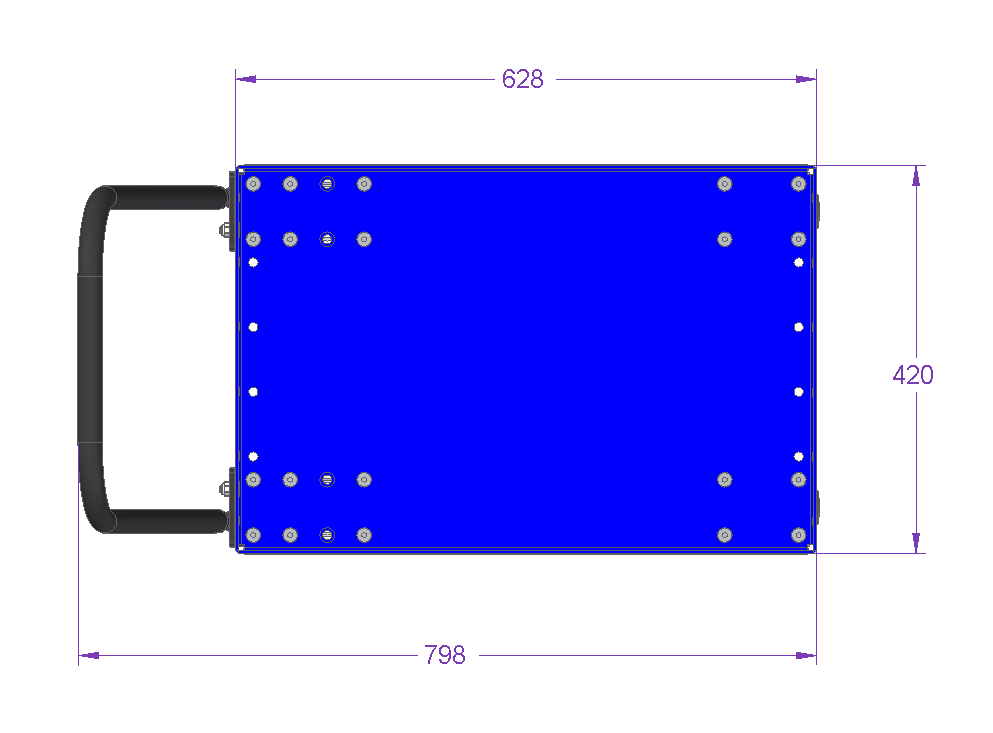

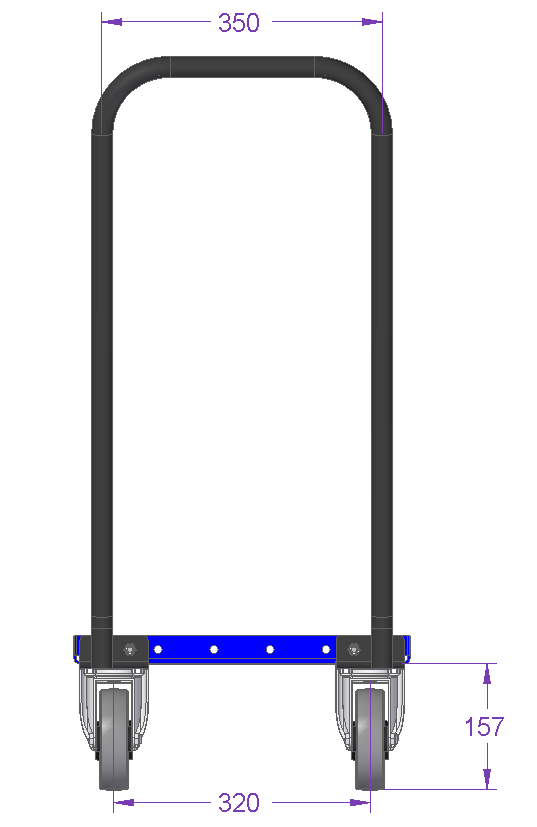

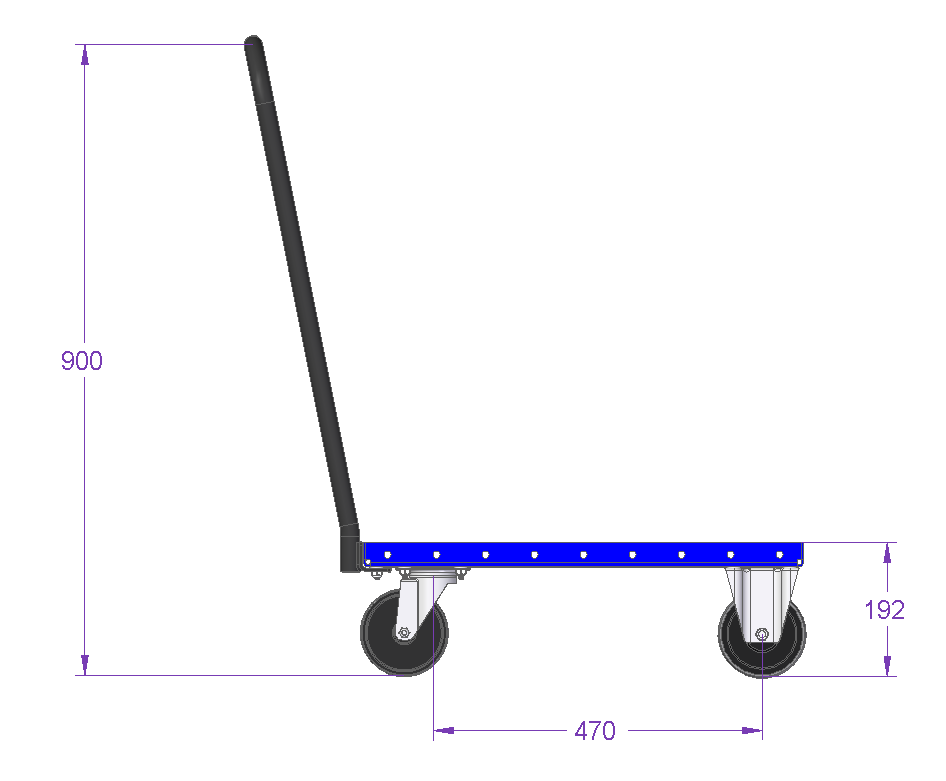

Totes Trolley - 630 x 420 mm

Standard tote trolley for transporting totes, bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 17 inch

Length: 25 inch

Load capacity: 300 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Totes

More info

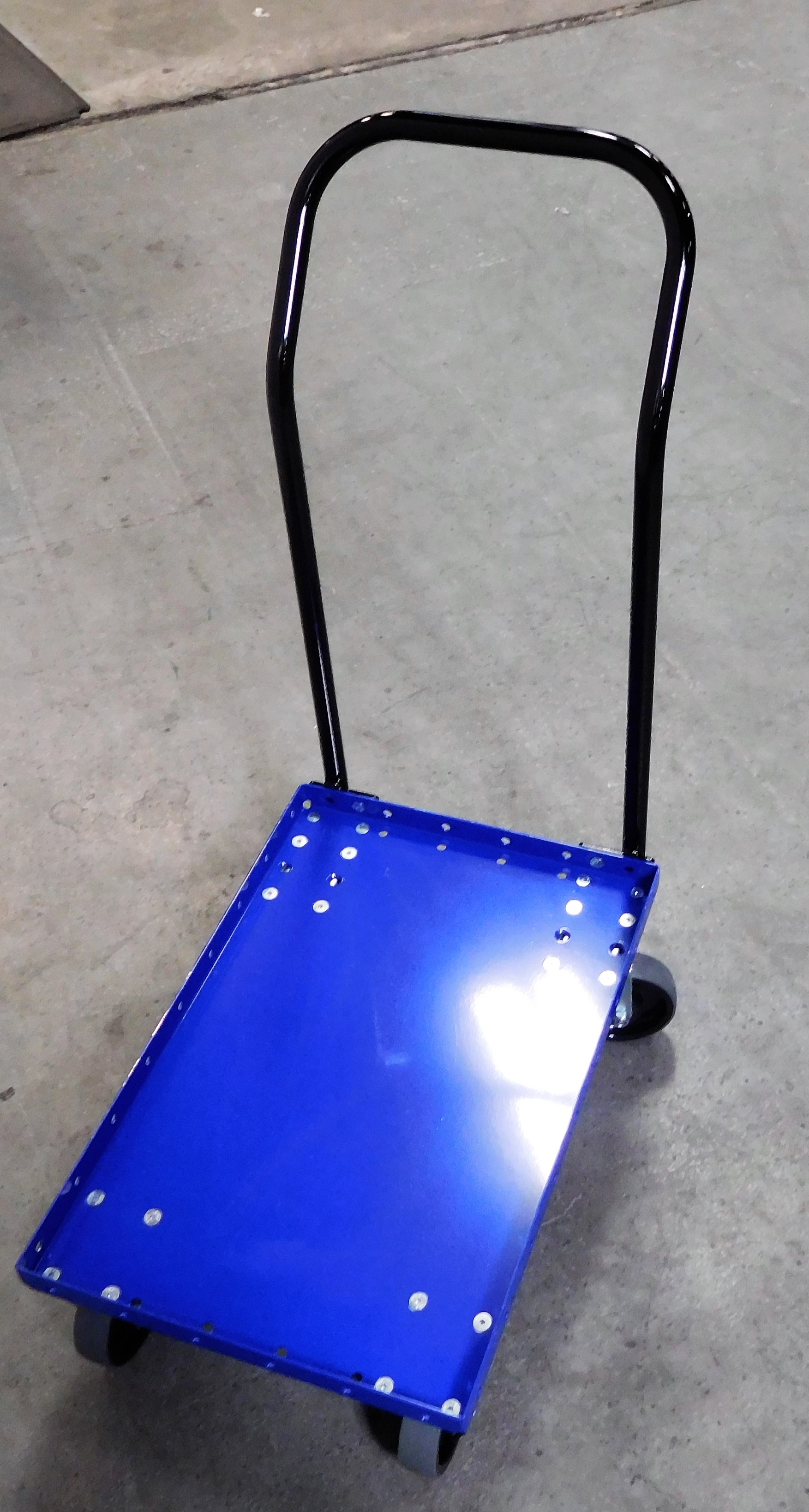

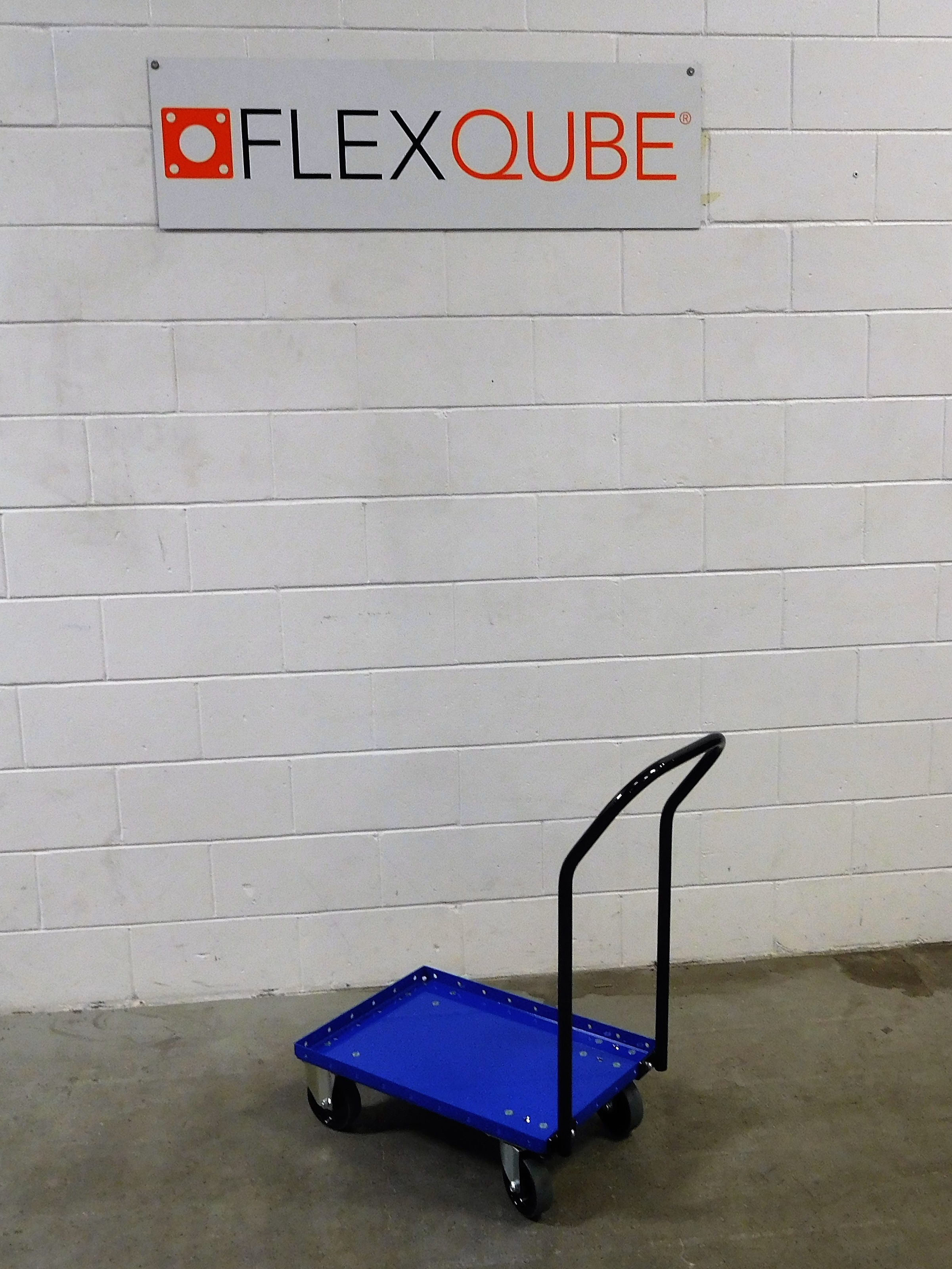

This trolley is a lightweight desin for transporting small totes, bins and boxes. It is equipped with a handlebar so it can be easily pushed by an operator. It has two swivel casters and two fixed casters for smooth manual handling. When not in use these trolleys can be stacked on top of each other.

Parts included
Swivel Caster - 125 mm 2 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Locking Nut M8 22 Q-006-1181
M8 Washer 22 Q-006-1183
Countersunk - M8 x 20 22 Q-006-1282
Tube for Handlebar - 350 mm 1 Q-015-0076
Caster/Handlebar attachment plate 2 Q-015-0077
350 mm welded handlebar 1 Q-015-0078
Top Plate w. small edge - 630 x 420 mm 1 Q-016-0255
