FlexShelf Cart – 1190 x 700 mm
Shelf Cart with Fence 47 x 28 inch (1196 x 706 mm)
Shelf Cart with Fence 47 x 28 inch (1196 x 706 mm)
Shelf Cart with Fence 47 x 28 inch (1196 x 706 mm)
Q-100-0123

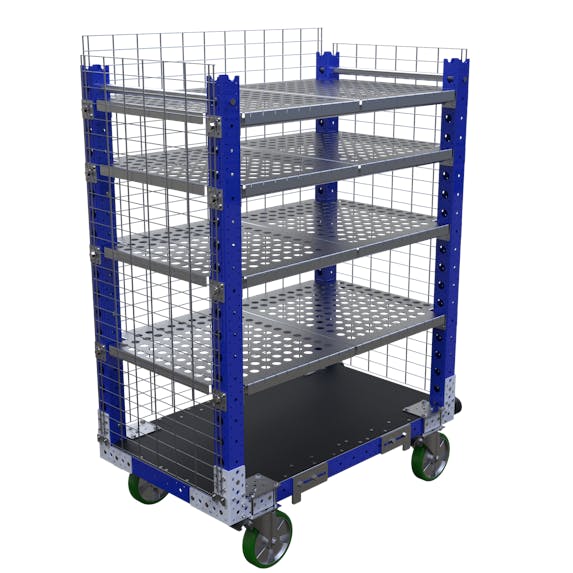

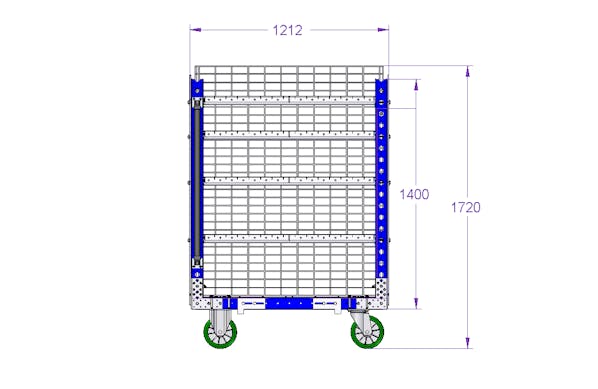

FlexShelf Cart – 1190 x 700 mm

Custom shelf cart for transporting totes, bins, and boxes.

Technical specifications

Transportation method: Manual

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 47 inch

Width: 28 inch

Load capacity: 1543 lbs

Levels: 4

Load Capacity per Level: 331 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

This shelf cart was designed to improve the transportation of smaller materials. It is equipped with four flat shelves. Each flat shelf has holes and the purpose of this is to make the weight of the cart lighter. This cart is ideal for transporting totes, bins, and boxes and is equipped with wire mesh around the outside to keep the materials secure.

Parts included
FlexTube™ 1050 mm 8 Q-000-1053
FlexTube™ 560 mm 2 Q-000-1182
Outer Tube (No Plate) 950 mm 1 Q-000-1472
FlexBeam™ - 1330 mm 8 Q-001-1298
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 700 mm FE 2 Q-001-1407
Flexplate™ M10 8 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Fork Protection 2 Q-005-1075
U-Plate 2 Q-005-1078
Handle for 30 mm Tube 2 Q-005-1240
RTE Plug 16 Q-005-1289
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 14 Q-005-1426
Fence - 1145 x 1400 mm 1 Q-005-1508
Fence - 655 x 1400 mm 2 Q-005-1510
Rubber Carpet 1 Q-005-1511
Flex Shelf - 700 x 595 mm 8 Q-005-1585
Washer 10,5 x 30 x 2,5 20 Q-006-1030
Fully Threaded - M10 x 120 mm 16 Q-006-1037
Locking Nut M10 84 Q-006-1042
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 100 mm 8 Q-006-1302
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 10 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 90 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 18 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
