Q-100-0277

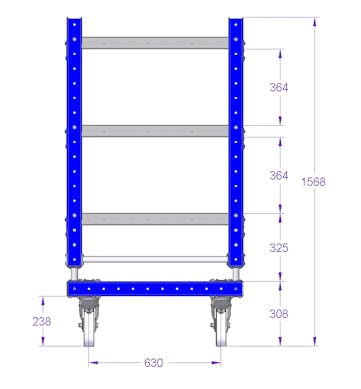

Shelf Cart - 840 x 1400 mm

Standard flat shelf cart for transporting bins and boxes.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Category: Flat Shelf

Length: 55 inch

Width: 33 inch

Levels: 3

Load capacity: 661 lbs

Load Capacity per Level: 220 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This shelf cart is equipped with flat shelves that allows for better access into bins and totes. The shelf is made to hold standard totes like 600 x 400 mm and 300 x 400 mm etc. Shelf height can easily be adjusted within 70 mm intervals. The solution can be adjusted with more/less shelves. This trolley can be used with the STILL Liftrunner Tugger Train System and has been sold to Kuehne+Nagel in Sweden.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexTube™ 70 mm - Locking Nut 4 Q-000-1101
FlexQube 4 Q-001-1078
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1190 mm FE 4 Q-001-1400
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 28 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Collet - 35 mm 12 Q-005-0028
L Bracket Joint 4 Q-005-0031
Tugger Train Opener - 5 x 35 mm 2 Q-005-0442
Locking Nut M10 40 Q-006-1042
Hex Head - M8 x 16 mm 36 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 36 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 16 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 240 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Angled plate - 1388 mm 6 Q-016-0140
Flat Shelf - 1329 x 840 mm 3 Q-016-0141
