Shelf Cart - 770 x 1050 mm
Shelf Cart - 770 x 1050 mm
Shelf Cart - 770 x 1050 mm
Shelf Cart - 770 x 1050 mm
Q-100-1638

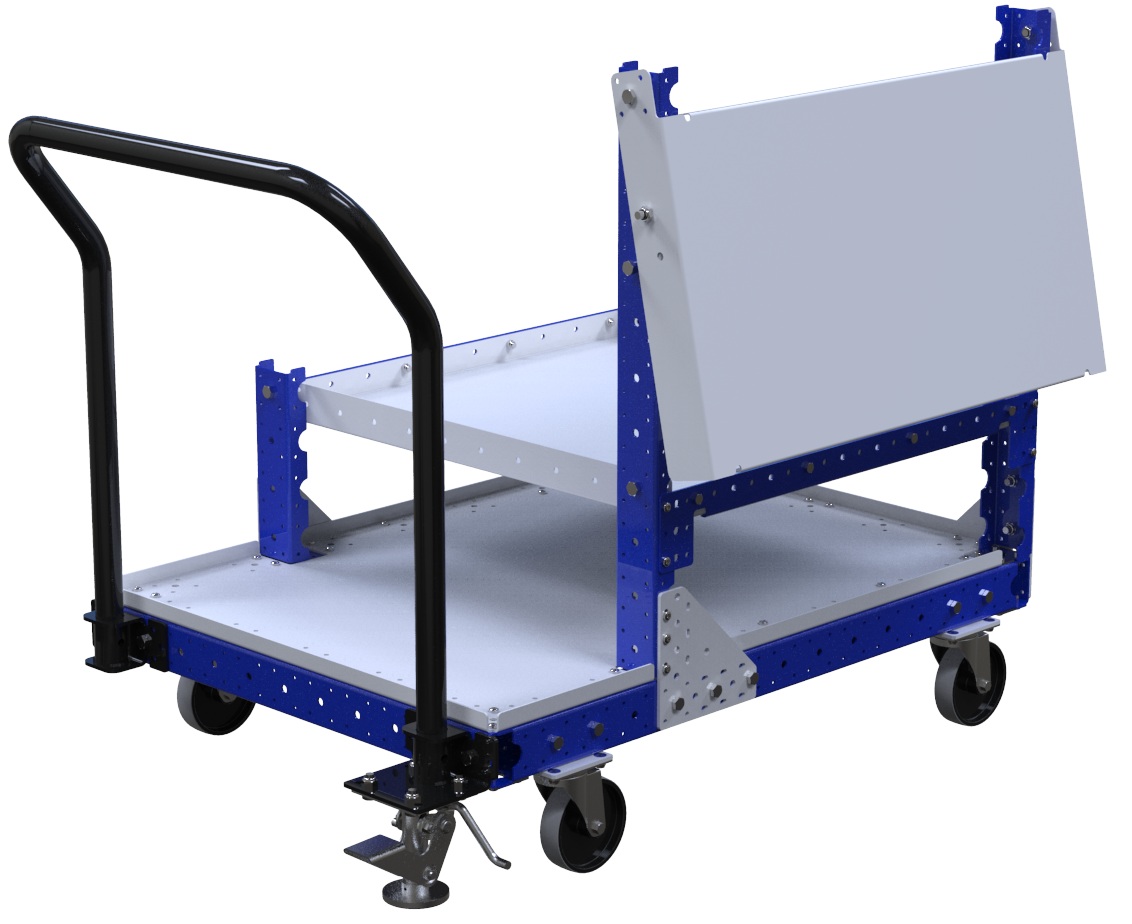

Shelf Cart - 770 x 1050 mm

This shelf car is equipped with three shelves and is ideal for transporting totes, bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 30 inch

Length: 41 inch

Levels: 2

Load capacity: 353 lbs

Load Capacity per Level: 154 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Gray

Type of Load: Bins, Boxes, Totes

More info

This shelf cart has three levels used for different applications. The bottom two are fixed shelves which are used to place parts, boxes and components of different sizes or shapes. The top one is a foldable shelf for lightweight applications, similar to a laptop or notebooks holder. The cart is equipped with polyurethane/nylon casters, a removable handlebar and a floor friction brake.

Parts included
FlexPlate™ 6 Q-002-1001
Swivel Caster - 125 mm 4 Q-004-1363
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Collet - 35 mm 4 Q-005-0028
Hinge rod - 285 mm 2 Q-005-0141
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Triangle Joint 4 Q-005-0483
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head - M10 x 25 mm 22 Q-006-1041
Locking Nut M10 42 Q-006-1042
Hex Head - M8 x 16 mm 8 Q-006-1120
Hex Head - M10 x 90 mm 14 Q-006-1132
Locking Nut M8 24 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 76 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Flip Shelf - 792 x 500 mm 1 Q-016-0076
Flat Shelf - 700 x 770 mm 1 Q-016-0282
FlexBeam™ - 980 mm 4 Q-020-0980
FlexBeam™ FE - 280 mm 2 Q-021-0280
