Shelf cart - 560 x 770 mm
Shelf cart - 560 x 770 mm
Shelf cart - 560 x 770 mm
Shelf cart - 560 x 770 mm
Q-100-1397

Shelf cart - 560 x 770 mm

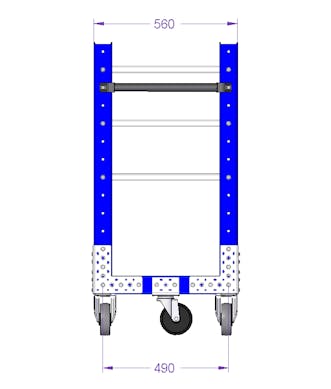

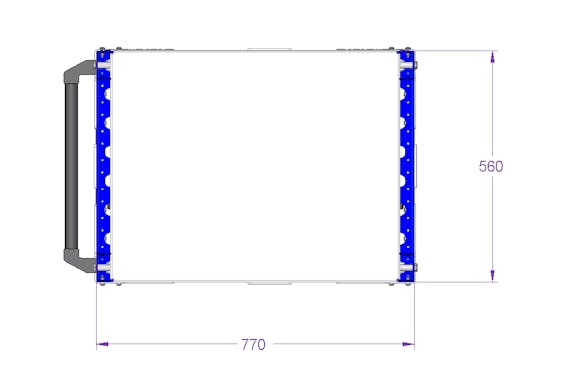

Three level flat shelf push cart. Equipped with a handlebar and four nylon casters.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Length: 30 inch

Levels: 3

Load capacity: 265 lbs

Load Capacity per Level: 88 lbs

Width: 22 inch

Caster size: 5 inch

Caster Type: Gray

More info

This small shelf cart is great for transporting lighter totes and boxes shorter distances. The cart is equipped with three shelves, a handlebar and four nylon casters with the fixed in the center of the cart making it very easy to maneuver.

Parts included
Outer tube (No plate) - 450 mm 1 Q-000-0078
FlexBeam™ 700 mm 2 Q-001-1307
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexPlate™ 4 Q-002-1001
Swivel Caster - 125 mm 2 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Collet - 35 mm 12 Q-005-0028
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
Locking Nut M10 50 Q-006-1042
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 12 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 36 Q-006-1410
Flat Shelf w. Double bend - 560 x 700 mm 3 Q-016-0744
