Roller Cart - 1120 x 490 mm
Roller Cart - 1120 x 490 mm
Roller Cart - 1120 x 490 mm
Roller Cart - 1120 x 490 mm
Q-100-0624

Roller Cart - 1120 x 490 mm

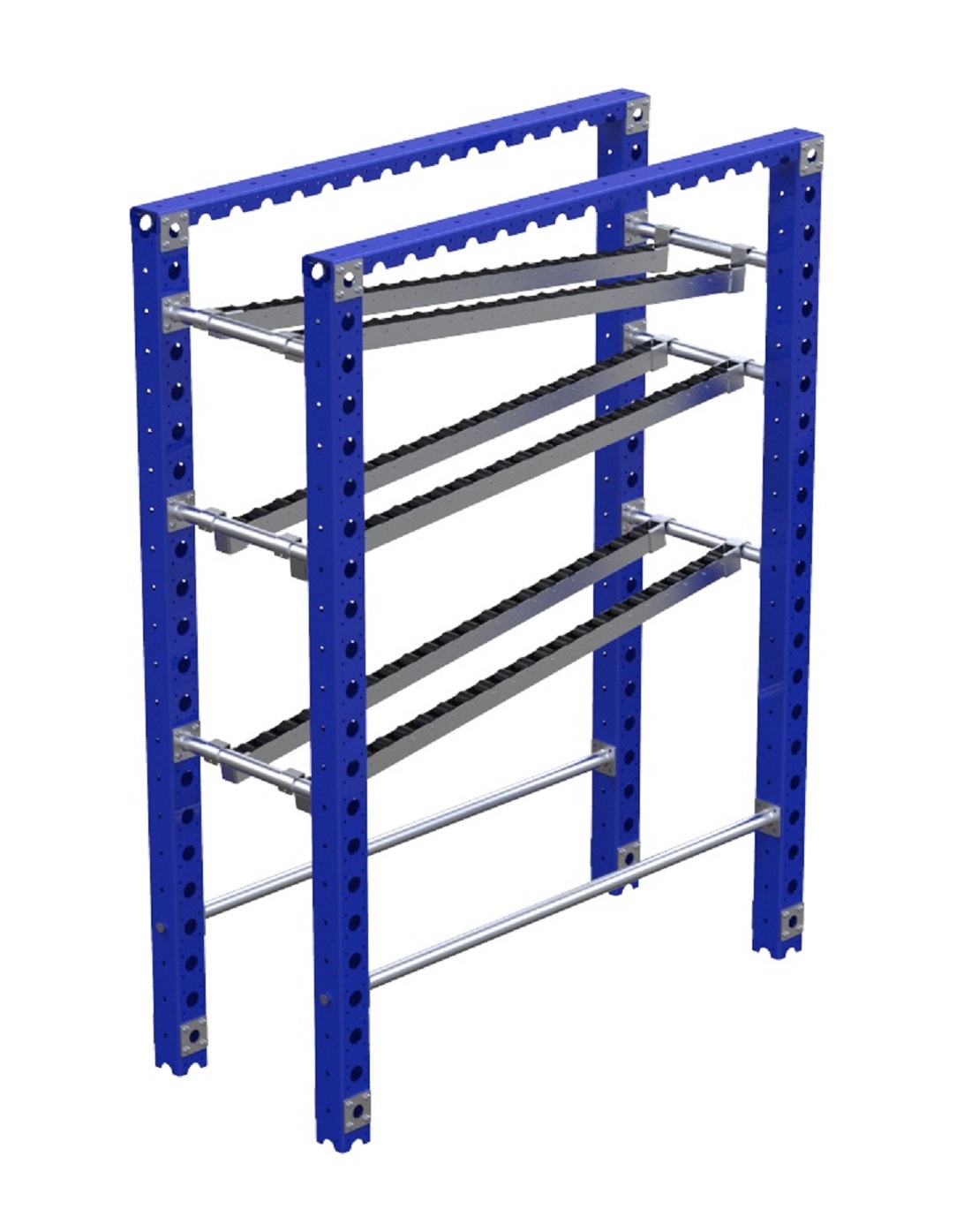

Custom designed roller rack with three roller shelves.

Technical specifications

Category: Conveyor, Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 19 inch

Length: 44 inch

Levels: 3

Load capacity: 496 lbs

Load Capacity per Level: 165 lbs

Transportation method: Manual

More info

This roller rack was designed to improve the presentation of materials to the operators. The lower two roller shelves are used for presenting and the top shelf is used for returning. The lower beams make the overall structure more robust.

Parts included
FlexTube™ 1050 mm 2 Q-000-1053
FlexTube™ 350 mm 6 Q-000-1055
FlexBeam™ - 1540 mm 8 Q-001-1295
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexPlate™ 16 Q-002-1001
Roller rail - 1060 mm 6 Q-003-0028
Rail Support No Stop 6 Q-003-1021
Rail Support Drop 30 mm Stop 6 Q-003-1022
RTE Plug 4 Q-005-1289
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Self Tapping Screw M6 Torx H60 x 16 112 Q-006-1384
